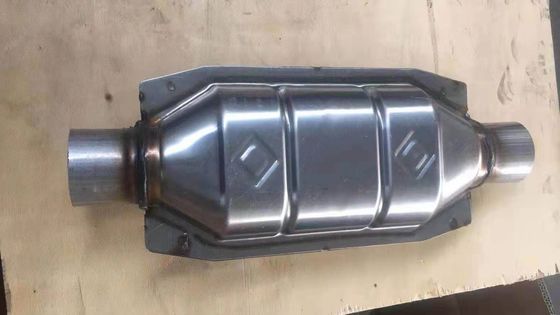

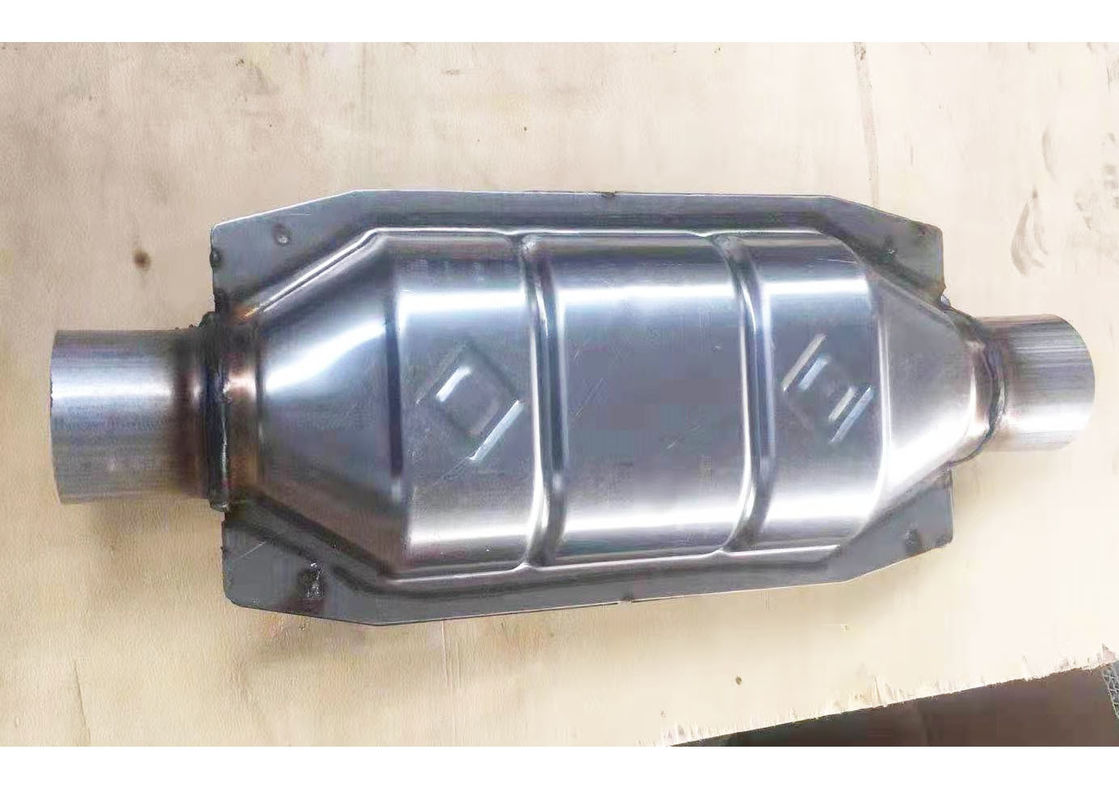

Auto Exhaust System Stainless Steel Oval Catalytic Converter Inlet / Outlet 57mm

Auto Exhaust System Stainless Steel Oval Catalytic Converter Inlet / Outlet 57mm
Auto Exhaust System Stainless Steel Oval Catalytic Converter Inlet / Outlet 57mm Auto Exhaust System Stainless Steel Oval Catalytic Converter Inlet / Outlet 57mm

Large Image :  Auto Exhaust System Stainless Steel Oval Catalytic Converter Inlet / Outlet 57mm

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YP-EXCC020
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable
Packaging Details: Plastic bag + seaworthy carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION MONEYGRAM
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product: Auto Exhaust System Stainless Steel Catalytic Converter Inlet / Outlet 57mm Overall Lengh 290mm Materials: SUS409 / 304 Stainless Steel
Inlet/outlet ID: 2.25" / 57mm Type: Three Way
Car Make: Universal Emission Standard: Euro2/3/4 EPA CARB
Displacement: 2.0L-3.5L Cell: 400cpsi
Quality: ISO 9001 TS 16949 Quality Control System Ceramic Honeycomb Substrate: 120*80*50mm 2 Pcs
High Light:

oval stainless steel catalytic converter

,

auto oval catalytic converter

,

exhaust oval catalytic converter

Auto Exhaust System Stainless Steel Oval Catalytic Converter Inlet / Outlet 57mm overall Lengh 290mm



Product name Stainless steel catalytic converter
Inlet / outlet inside diameter 57mm / 2.25 inch
Overall length 290mm
Other inlet/outlet dimensions 57mm /60mm / 63mm / 64mm
Overall Length choice As request
Fitment: Universal
Emission standard Euro2/3/4 EPA CARB





Description of catalystic converter:



A catalytic converter is an exhaust emission control device that reduces toxic gases and pollutants in exhaust gas from an internal combustion engine into less-toxic pollutants by catalyzing a redox reaction (an oxidation and a reduction reaction). Catalytic converters are usually used with internal combustion engines fueled by either gasoline or diesel—including lean-burn engines as well as kerosene heaters and stoves.



Auto Exhaust System Stainless Steel Oval Catalytic Converter Inlet / Outlet 57mm 0



Application of catalytic converter:



Although catalytic converters are most commonly applied to exhaust systems in automobiles, they are also used on electrical generators, forklifts, mining equipment, trucks, buses, locomotives, and motorcycles. They are also used on some wood stoves to control emissions.[5] This is usually in response to government regulation, either through direct environmental regulation or through health and safety regulations.

Catalytic converters require a temperature of 800 degrees Fahrenheit (426 °C) to efficiently convert harmful exhaust gases into inert gases, such as carbon dioxide and water vapor. Therefore, they are placed as close to the engine as possible.

Types



Two-way


A 2-way (or "oxidation", sometimes called an "oxi-cat") catalytic converter has two simultaneous tasks:

Oxidation of carbon monoxide to carbon dioxide: 2 CO + O2 → 2 CO2
Oxidation of hydrocarbons (unburnt and partially burned fuel) to carbon dioxide and water: CxH2x+2 + [(3x+1)/2] O2 → x CO2 + (x+1) H2O (a combustion reaction)
This type of catalytic converter is widely used on diesel engines to reduce hydrocarbon and carbon monoxide emissions. Because of their inability to control oxides of nitrogen, they were superseded by three-way converters.



Three-way



Three-way catalytic converters (TWC) have the additional advantage of controlling the emission of nitric oxide (NO) and nitrogen dioxide (NO2) (both together abbreviated with NOx and not to be confused with nitrous oxide (N2O)), which are precursors to acid rain and smog.

Since 1981, "three-way" (oxidation-reduction) catalytic converters have been used in vehicle emission control systems in the United States and Canada; many other countries have also adopted stringent vehicle emission regulations that in effect require three-way converters on gasoline-powered vehicles. The reduction and oxidation catalysts are typically contained in a common housing; however, in some instances, they may be housed separately. A three-way catalytic converter has three simultaneous tasks.



Packaging and delivery of catalytic converter:



Auto Exhaust System Stainless Steel Oval Catalytic Converter Inlet / Outlet 57mm 1



Package 1pc/white paper box, 10pcs/master carton
Delivery method By express, By air, By sea
Delivery time Depends on order quantity
Shipment terms EXW, FOB CHINA, CNF CHINA, CIF CHINA



Related exhaust components:



Stainless steel / aluminized exhaust resonator and muffler in dozen models and dimensions for customer's choice.

Auto Exhaust System Stainless Steel Oval Catalytic Converter Inlet / Outlet 57mm 2

Auto Exhaust System Stainless Steel Oval Catalytic Converter Inlet / Outlet 57mm 3



Welcome your inquiry if you are interested in our products.

Auto Exhaust System Stainless Steel Oval Catalytic Converter Inlet / Outlet 57mm 4
