Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe

Recommedation is good. Reception is professional. Wish to place more orders with flexible exhaust pipe.

—— Rodrigo Favaro

Good company with nice service and high quality for exhaust muffler.

—— John Hermans

Thanks for your good after-sale service. Popular design for the exhaust pipe and muffler system.

—— Aidyn Hadiev

Good support. High quality of exhaust clamps. We'll reorder soon.

—— OAKANTSE Lucas

I'm Online Chat Now

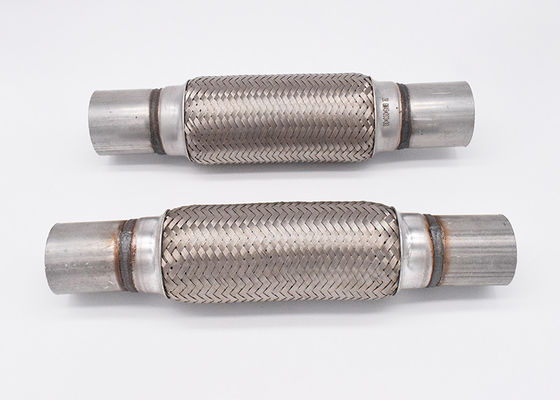

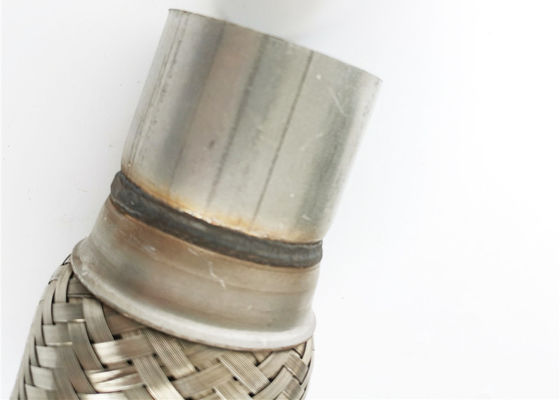

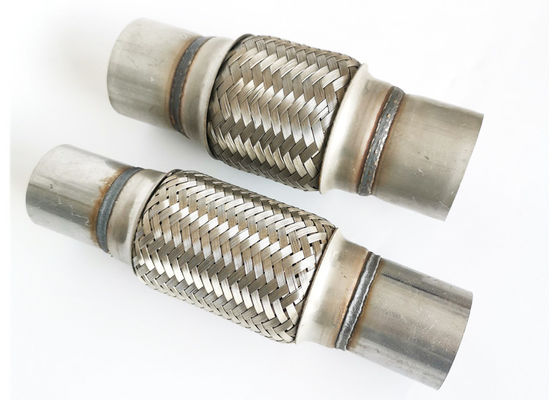

Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe

Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe
Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe

Large Image :  Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe

Product Details:
Place of Origin: CHINA
Brand Name: YP
Certification: ISO
Model Number: YPEXF-200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1.8~2.0 PER PIECE
Packaging Details: plastic bag+ carton + woven bag
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T Western Union
Supply Ability: 100000 pieces per Month
Detailed Product Description
Product Name: 2" X 8" X 12" Stainless Steel Exhaust Connector Truck Flex Pipe Double Bellows Aluminized Cap Bellow Materials: Stainless Steel 304 / 201/ 202 /409
Inside Diamter: 2" / 50.8 Mm Structure: Bellow + Inner Braid + Out Braid + Nipple
Body Length:: 8" / 203 Mm Or As Request Overall Length: 12" / 304.8 Mm
Application: Truck Exhaust System Type: Truck Flex Pipe
Advantage: Flexible And Durable Condition: 100% New
Package: Plastic Bag + Carton + Woven Bag
High Light:

2"x8"x12" Stainless Steel Exhaust Flex Pipe

,

Double Bellows Stainless Steel Exhaust Flex Pipe

,

2"x8"x12" truck exhaust flex pipe

2" x 8" x 12" Stainless Steel Exhaust Connector Truck Flex Pipe Double Bellows Aluminized Cap



Product description:



2" X 8" X 12" Stainless Steel Exhaust Connector Truck Flex Pipe Double Bellows Aluminized Cap



  • Bellow materials: Stainless steel 301 201 202 409 , thickness between 0.25-0.30mm
  • Braid and interlock: Stainless steel 304
  • Collars(cap): Stainless steel or aluminized steel
  • Nippe(extension pipe): Stainless steel or aluminized steel

Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe 0



Flex pipe is a flexible piece of pipe that allows the exhaust system some flexibility. It is an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex pipe protects your exhaust system from breakage. Without that extra flex the rocking motion would crack the exhaust system causing a loud leak.



Specification:



Common sizes are as follows, customizable sizes are available



Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe 1



Diameter

(I.D.)

Pipe Length

Overall Length

(OAL)

Diameter

(I.D.)

Pipe Length

Overall Length

(OAL)

Extensions
1-1/2" 4" 4" 1-1/2" 4" 8" 2"
1-1/2" 6" 6" 1-1/2" 6" 10" 2"
1-1/2" 8" 8" 1-1/2" 8 12" 2"
1-1/2" 10" 10" 1-1/2" 10" 14” 2"
1-3/4" 4" 4" 1-3/4" 4" 8" 2"
1-3/4" 6" 6" 1-3/4" 6" 10" 2"
1-3/4" 8" 8" 1-3/4" 8" 12" 2"
1-3/4" 10" 10" 1-3/4" 10" 14" 2"
1-3/4" 12" 12" 1-3/4" 12" 16" 2"
2" 4" 4" 2" 4" 8" 2"
2" 6" 6" 2" 6" 10" 2"
2" 8" 8" 2" 8" 12" 2"
2" 10" 10" 2" 10" 14" 2"
2" 12" 12" 2" 12" 16" 2"
2-1/4" 4" 4" 2-1/4" 4" 8" 2"
2-1/4" 6" 6" 2-1/4" 6" 10" 2"
2-1/4" 8" 8" 2-1/4" 8" 12" 2"
2-1/4" 10" 10" 2-1/4" 10" 14" 2"
2-1/4" 12" 12" 2-1/4" 12" 16" 2"
2-1/2" 4" 4" 2-1/2" 4" 8" 2"
2-1/2" 6" 6" 2-1/2" 6" 10" 2"
2-1/2" 8" 8" 2-1/2" 8" 12" 2"
2-1/2" 10" 10" 2-1/2" 10" 14" 2"
2-1/2" 12" 12" 2-1/2" 12" 16" 2"
3" 4" 4" 3" 4" 8" 2"
3" 6" 6" 3" 6" 10" 2"
3" 8" 8" 3" 8" 12" 2"
3" 10" 10" 3" 10" 14" 2"
3" 12" 12" 3" 12" 16" 2"
4" 4" 4" 4" 4" 8" 2"
4" 6" 6" 4" 6" 10" 2"
4" 8" 8" 4" 8" 12" 2"
4" 10" 10" 4" 10" 14" 2"



Appication:



Bellows can be used in the exhaust system of large vehicles such as trucks, buses, freightliner etc., for the high temperature portion of the engine exhaust manifold. The exhaust bellows is installed in the exhaust pipe between the engine exhaust manifold and the mufller, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of exhaust muffler system.



Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe 2



Keyword: exhaust flex pipe, exhaust corrugated bellow pipe

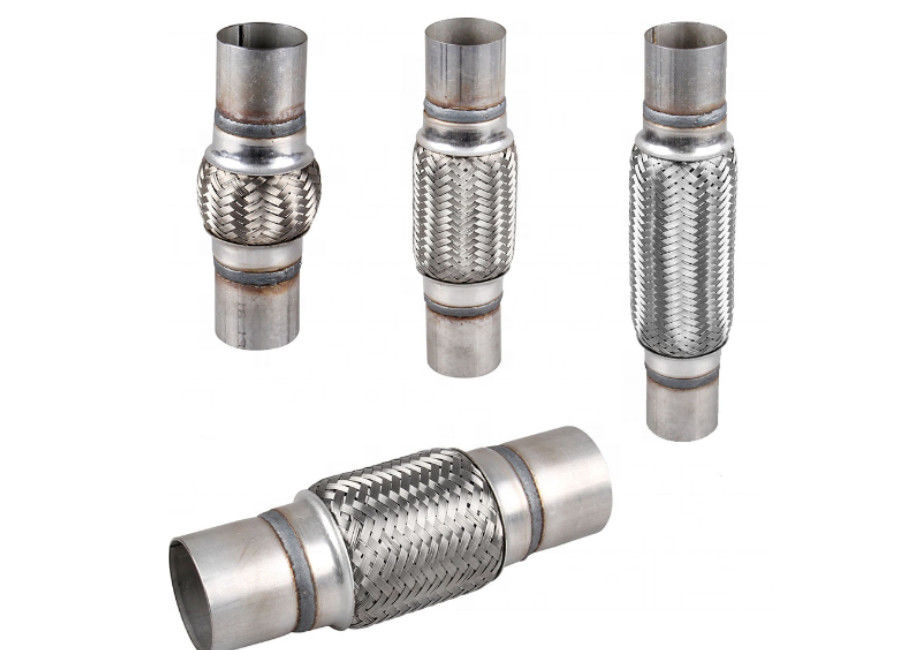

Structures choice:



Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe 3



Packaging and Delivery:



Fast delivery: in 5-8 days

Lead time for new production: No more than 30 days

Shipping terms: EXW FOB CIF

Packing methods: Plastic bag for each product, seaworthy carton and woven bag with pallet or not.



Double Bellows 2"X8"X12" Stainless Steel Exhaust Flex Pipe 4



We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.
