Universal 19mm 3 Inch Stainless Steel Exhaust Clamps

Universal 19mm 3 Inch Stainless Steel Exhaust Clamps

19mm 3 inch stainless steel exhaust clamp

19mm universal exhaust flange clamp

3 inch universal exhaust flange clamp

Place of Origin:

China

Certification:

ISO

CONTACT US
Request A Quote
Product Details
Product Name:
Universal 304 Stainless Steel V-Band Clamp Kit Assembly Turbocharged V-Belt Clip (3 Inch Silver)
Materials:
T304
Size:
3 INCH
Band Width:
3/4"(19mm)
Flange:
Male And Female
Surface:
Polished
Package:
Individual Packaging
Type:
Exhaust Clamp
Application:
Auto Exhaust System
Payment & Shipping Terms
Minimum Order Quantity
Individual sold
Price
USD5.0~5.5 PER PIECE
Packaging Details
Film bag + carton
Delivery Time
5-8 days if stocks available
Payment Terms
L/C T/T WESTERN UNION
Supply Ability
10000 Pieces Per Month
Product Description

Universal 304 Stainless Steel V-Band Clamp Kit Assembly Turbocharged V-Belt Clip (3 inch Silver)

  • Size: 3.5 Inch(89mm), Color: Silver.
  • Made of High quality Stainless steel, Strong and rustproof, it is very durable.
  • Style (spec): Male/Female V-Belt Clip w/ Quick Release Clamp.
  • The V-Belt clip clamp has a machined ridge for the exhaust pipe to fit into for perfect and precise welding.Professional installation is highly recommended.
  • This V-Band clamp makes it easy to install and remove intercooler systems and turbo parts, such as charge piping, intake pipes, etc.

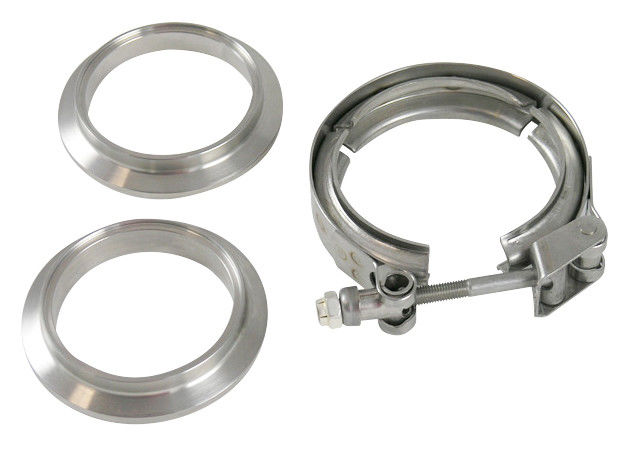

3 inch stainless steel exhaust clamp kit - Complete V-band kit is ideal for performance exhaust systems, downpipes, catback exhausts, turbo back exhausts and more. High quality CNC stainless steel flanges provide a leak free exhaust seal with no gasket required. The V-band clamp allows you to quickly connect and disconnect exhaust pipes without having to fumble with nuts or bolts.

This kit is specifically designed for 3" exhaust pipes. The flanges feature a recessed opening which allows for a 3" exhaust to easily slip inside the flange, providing a perfect overlap seam for welding. Once the flanges are welded in place the included V-band clamp slips over the connections and secures the flanges together, providing a leak-free seal.



Universal 19mm 3 Inch Stainless Steel Exhaust Clamps 0



Universal 19mm 3 Inch Stainless Steel Exhaust Clamps 1



Detailed specification:

Flange ID 3.000"
Flange OD 3.580"
Individual Flange Thickness (Single Flange) 3/4"
Clamp Bandwidth 3/4"
Clamp Type V-Band, Standard T-Bolt
Material Type 304 Stainless steel

Provided Fasteners

Metal Lock Nut (QTY: 1)
Non-Locking Nut (QTY: 1)

Fastener Size (Material)
8mm-1.5 (304 Stainless)



Application & Feature:

When you're making a downpipe, catback exhaust, turbo back exhaust, mid pipe, or up pipe for your car, truck, or other vehicle this V-band kit is ideal for connecting different pipe sections. Conventional exhaust flanges multiple nuts, bolts, washers and a gasket. A V-band kit eliminates all of these and allows for a connection with a single nut.



EASY ON, EASY OFF - A V-band kit allows you to connect or disconnect sections of your exhaust by removing a single nut. Conventionally exhaust flanges involve multiple bolts, washers, nuts, and gaskets. Save time and have piece of mind that your exhaust sections will stay sealed and secured with a 3" V-band kit.



About us:

We are speicalized in exhaust system and committed to supply a completed line of exhaust system compoments including exhaust flexible pipe, performance muffler & scilencer, tail pipe, catalytic converter for auto, motorcycle and truck. We not only supplied clients premium products, but also good service and support you need to get orders quickly and accurately.

Our main market: USA, Europe, The Middle East, Southeast Asia, and Russia

Universal 19mm 3 Inch Stainless Steel Exhaust Clamps 2
