Product Details:
|
| Material: | Stainless Steel | Surface: | Polished |
|---|---|---|---|
| Diameter: | 38mm-200mm | Gasket: | Silicone / EPDM |
| Gasket Color: | Black Or White | Number Of Bolts: | 2-3 |
| Length: | 100mm / 150mm /200mm | MOQ: | 1PCS |
| High Light: | 430 stainless steel compression coupling,38mm stainless steel compression coupling,industrial vacuum system pipe compression coupling |
||

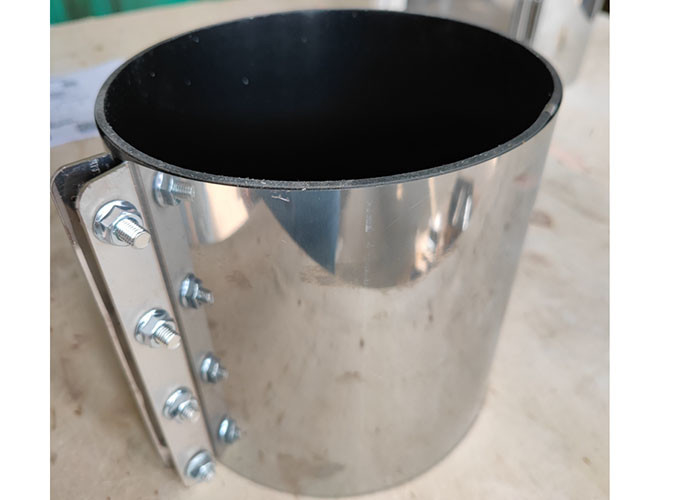

Stainless steel 430 , 304 tube and pipe compression coupling for industrial vacuum system
Introduction of compression couplings:
Our tube and pipe compression coupling is designed for permanent installation to join pipe and tubing for pneumatic conveying system. The band type construction of our compression couplings holds the entire surface of the joint in uniform compression. Couplings are fabricated from heavy gauge zinc-plated steel – aluminum and stainless steel are also available – and we provide a sideband design for higher operating pressures or where vibration is an issue.
Feature:
Specification:
| Model | Inch Size | Length(mm) | Gasket Color | Gasket Material | Bolt No. | Housing Material |
| YPC038 | 1.5” | 100mm | Black or white | EPDM/Silicone/Neoperne | 2 |
Stainless steel 430/304; GI |
| YPC051 | 2” | 100mm | Black or white | EPDM/Silicone/Neoperne | 2 | Stainless steel 430/304; |
| YPC063 | 2.5” | 100mm | Black or white | EPDM/Silicone/Neoperne | 2 | GI |
| YPC076 | 3” | 150mm | Black or white | EPDM/Silicone/Neoperne | 3 | Stainless steel 430/304; |
| YPC089 | 3.5” | 150mm | Black or white | EPDM/Silicone/Neoperne | 3 | GI |
| YPC102 | 4” | 150mm | Black or white | EPDM/Silicone/Neoperne | 3 | Stainless steel 430/304; |
| YPC108 | 5.25” | 150mm | Black or white | EPDM/Silicone/Neoperne | 3 | GI |
| YPC114 | 4.5” | 150mm | Black or white | EPDM/Silicone/Neoperne | 3 | Stainless steel 430/304; |
| YPC127 | 5” | 150mm | Black or white | EPDM/Silicone/Neoperne | 3 | GI |
| YPC152 | 6” | 150mm | Black or white | EPDM/Silicone/Neoperne | 3 | Stainless steel 430/304; |
| YPC202 | 8” | 200mm | Black or white | EPDM/Silicone/Neoperne | 4 | GI |
We take pride in supplying high quality compression pipe and tube coupling joints to our clients around the globe.
We tailor our services to fit your every need and concern.
Contact us to learn more about the variety of pneumatic products, systems and services we offer.
Packing and Shipping:
Cartons or wooden cases.
Shipping: 1-3 days if stock available, 20-25 days for official order production.
We accept customized design and length.
