Product Details:
|
| Name: | Quick Fit Tube Clamp | Material: | Carbon Steel |
|---|---|---|---|
| Size: | 75-600mm | Application: | Dust Collection , Filtration, Bulk Material Handling |
| Wall Thickness: | 1.0mm | Bandwidth: | 28mm |
| Lock: | Quick Release Pull Ring | Rubber: | TPE |
| Package: | Carton, Wooden Case | Delivery Time: | 7Days If Stock, 15-25days For Mass Production |
| High Light: | quick fit galvanized steel clamps,75mm galvanized steel clamps,75mm galvanized pipe repair clamp |
||

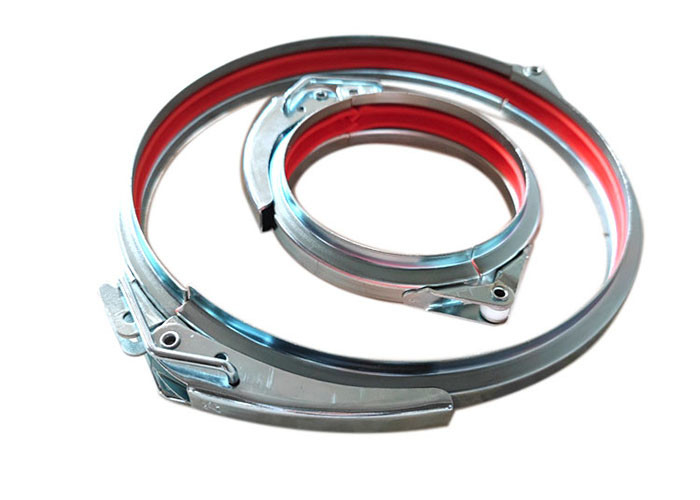

Glavanized steel metal clamps with adjustable lever lock latch
We are offering wide range of Pipe Clamp, these are duly tested by our experts. Our clamps have won appreciation in terms of features like tensile strength, dimensional accuracy, resistance to corrosion and durability. Depending on the nature of application, We offer these clamps in relevant specifications
Features:
|
Type
|
Air duct pipe clamp
|
|
Material
|
Rubber & carbon steel
|
|
Surface Treatment
|
Zinc plating |
|
Size
|
As below
|
|
Usage
|
Fasten
|
|
Color
|
Black and sliver
|
|
Size
|
80mm~~~650mm
|
|
Features
|
High temperature, friction and corrosion resistant
|
Specification:
| Φ Diameter mm | Product Code | A mm | H mm | Thickness mm |
| 75 /80 | BMG80 | 28 | 8 | 1.0 |
| 100 | BMG100 | 28 | 8 | 1.0 |
| 120 | BMG120 | 28 | 8 | 1.0 |
| 125 | BMG125 | 28 | 8 | 1.0 |
| 140 | BMG140 | 28 | 8 | 1.0 |
| 150 | BMG150 | 28 | 8 | 1.0 |
| 160 | BMG160 | 28 | 8 | 1.0 |
| 180 | BMG180 | 28 | 8 | 1.0 |
| 200 | BMG200 | 28 | 8 | 1.0 |
| 225 | BMG225 | 28 | 8 | 1.0 |
| 250 | BMG250 | 28 | 8 | 1.0 |
| 275 | BMG275 | 28 | 8 | 1.0 |
| 300 | BMG300 | 28 | 8 | 1.0 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Packing:
Usually in carton or wooden case, 5 pieces in a bundle.
Smaller size into bigger size.
Applications of Galvanized Steel Clamps:
1. Dust extraction, fume extraction and exhaust air, dust collection, welding extraction, process ventilation, air filtration systems, transport of particles and air, bulk handling and low pressure pneumatic transport.
2. Specific industry like woodworking, milling, conveying cement,agriculture, timber,plastic, paper, textile, recycling, powder material,powder painting, sandblasting, metal working industries like the welding, laser, tobacco and medical industry/pharmaceutical and so on.
Other types of clamps:
About US:
We manufacture modular ducting in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. like pressed bends ; straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.
