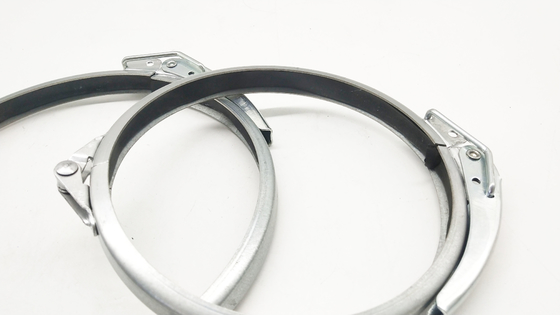

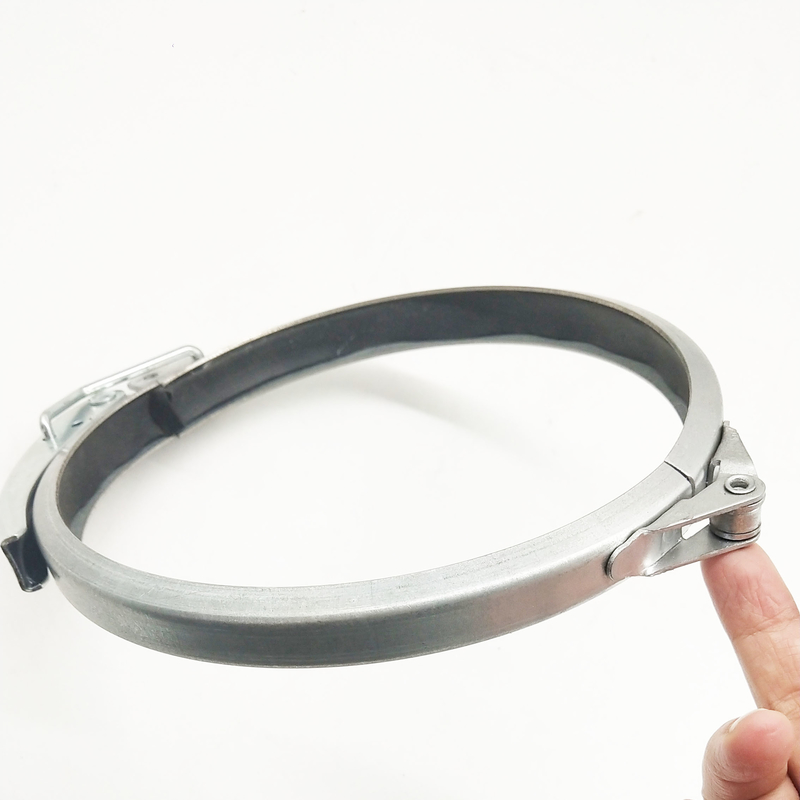

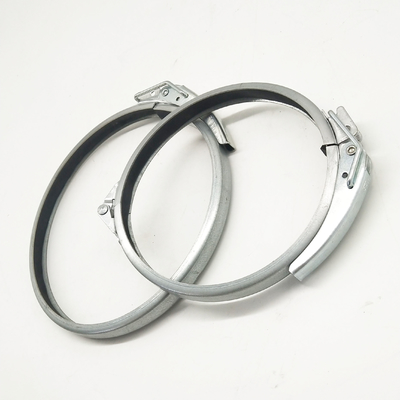

Us Quick Connect 6" Galvanized Pipe Clips Industrial Dust Collection

Us Quick Connect 6" Galvanized Pipe Clips Industrial Dust Collection
Us Quick Connect 6" Galvanized Pipe Clips Industrial Dust Collection Us Quick Connect 6" Galvanized Pipe Clips Industrial Dust Collection Us Quick Connect 6" Galvanized Pipe Clips Industrial Dust Collection

Large Image :  Us Quick Connect 6" Galvanized Pipe Clips Industrial Dust Collection

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YPVBC152
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2.6
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: US Quick-Connect Duct Clamp 6" Industrial Dust Collection Pipe Clamp For Rolled End Of Fittings Usage: Connect Clamp For Rolled End Pipe Fittings
Materials: Carbon Steel Surface Treatment: Electro-galvanizing / Hot Dipping
Band Width: 25mm Or Customized Inside Diameter: 152mm / 6 Inch
Lining: Foam Seal Gasket Materials: TPE Or Rubber
Linner Color: Black Gasket Application: Industrial Pipe System
Package: Carton Or Wooden Case Market: American Market, European Market, Oceania Market
Relative Product: Flange Ducting Like Bend, Sliding Damper, Blast Gate, Duct Length Unit Price: $2.4
High Light:

6" galvanized pipe clips

,

quick connect galvanized pipe clips

,

6" galvanized steel clamps

US Duct Clamp 6" Industrial Dust Collection Pipe Clamp For Rolled End Of Fittings



Featuring lever latches and foam seals, these clamps secure around the rolled ends of fittings and pipe.



  • The quick lock duct clamp ring can achieve speed Install and disassembly of flange ducting. Quick Release Pipe Clamp With lever latches can quickly connect the ducts and pipes.  Just need put the components inside of clamp and push the handle, the components will be connected.
  • The Featuring foam seals have good sealing for rolled end duct and pipe.
  • The duct clamp is made of stainless steel 304 or carbon steel with zinc plated,  so the anticorrosion is very high.
  • Inch size: 3"-24"
  • Materials choice Carbon steel or stainless steel 304 as optional
    Wall Thickness 1mm for smaller diameter, 1.2mm for bigger ones.
    Inch sizes 3 inch- 24 inch
    Usage Duct connection, pipe connection, tube connection, drum connection, hardware connection
    Feature Quick connect and release, anti-rust, long-life
    Main markets Sweden, Norway, Poland, Germany, UK, Australia, New zealand, USA etc.
    Application Industrial pipe system, HVAC system, dust collection system, particle conveying system etc.
  • The clamp diameter is from 3 inches up to 24 inches, wall tickness is 1mm~1.2mm according to sizes.
  • Customized design and size are available.



ɸDiameter inch Product code  A mm H mm  Thickness mm
3 BMG80 28 8 1
4 BMG100 28 8 1
5 BMG125 28 8 1
6 BMG150 28 8 1
8 BMG200 28 8 1
10 BMG250 28 8 1
12 BMG300 28 8 1
14 BMG350 28 8 1
16 BMG400 28 8 1
18 BMG450 28 8 1
20 BMG500 28 8 1
22 BMG550 28 8 1
24 BMG600 28 8 1


Feature of quick release clamp:



The quick release handle mechanism creates a fast lock and disassembly and reduces installation time to almost half that of conventional methods of ducting.

The gasket of TEP or rubber supply connection sealed. Black or red color can be supplied.

Galvanized pipe clamp are made of carbon steel with higher quality galvanizing which is rust-proof under bad circumstance.

It was widely applied in industrial facotry for dust collection / fume extraction system pipe fittings. adjustable pipe clamp features a liner / gasket in clamp band, which supplies a better sealing for ducting.  It provides optimal protection for pipe applications.







Application of quick release clamp:



Dust collection ductwork

Industrial ducting

Oil mist & cutting fluid applications

High vacuum pipe fittings

Mild steel duct

Woodworking

Coofee roasting

Concrete & cement production

Grain processing

Polymer and plastic processing

Ducting for metalworking

 Collection Ductwork



  • Dust Removal, some factories produce a lot of dust in the workshop,which requires special dust removal devices, where the wind flow is large and the modular pipe system can be used. Rapid lock clamp plays the important role in installation.

  • Bulk material handing, some of the factory production process,the need to transport loose particles, especially the small proportion of such foam plastic grain using modular piping system, lever clamp is low cost, good effect, in addition, it is more convenient to maintain and save working time.

  • Except the usage of pipes and ducts, clamps are widely applied in vehicles, ships, diesel engine. gasoline engine, machine tools, fire protection etc. All kinds of mechanical equipment, chemical equipment, ordianary ruber hose,n ylon plastic hose, fabric hose, outlet connetion fastening and sealing



Packaging and delivery time:



For muti-sizes, we choose wooden case to pack clamps. Smaller sizes in bigger sizes to save space.

For unitary size, we use carton box.

5pcs per bundle. Tidely put in crates layer by layer

Lead time: in 7 days if stocks available. otherwise against the order quantity.



Us Quick Connect 6" Galvanized Pipe Clips Industrial Dust Collection 0



Relative products from us:



Pressed bend at 30-90 degree, sliding damper, manual or pneumatic blast gate, suspension bracket, butterfly damper,wide pull ring, slim pull ring, duct length, Y branches, Tee piece, reducer etc.

Us Quick Connect 6" Galvanized Pipe Clips Industrial Dust Collection 1

Please contact Lily zhang for details. I am working here from 8:00 am to 5:00 pm on Monday~Friday.

Us Quick Connect 6" Galvanized Pipe Clips Industrial Dust Collection 2
