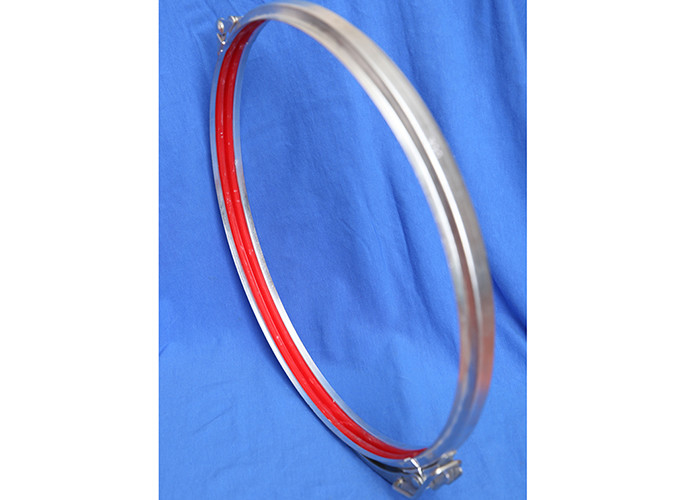

Sheet Metal Carbon Steel 300mm Galvanized Steel Clamps Quick Pull Ring
Description:
The "300mm Galvanized Steel Clamps Quick Pull Ring" are made of carbon steel with superior white galvanization on the surface, thickness is from 1.0mm to 1.2mm, bandwidth 28mm, customized width is acceptable too, the handle is designed with quick release lock bolt system, make the connection easy and quickly, save more time.
| Material | 300mm Galvanized Steel Clamps Quick Pull Ring |
| Lock | Quick release pull ring latch |
| Diameter | 80mm to 600mm |
Application:
♦Modular Ducting
♦ Dust Collection / Dust Extraction
♦ Filtration
♦ HVAC
♦ Material Handling
♦ Pnuematic conveying
♦ Auto Exhaust System
♦ Grain Handling
Specification:
|
Duct Airtight Galvanized Steel Clamp for Filtration System
|
||||
| Φ Diameter mm | Product Code | A mm | H mm | Thickness mm |
| 80 | LMG80 | 28 | 8 | 1.0 |
| 100 | LMG100 | 28 | 8 | 1.0 |
| 120 | LMG120 | 28 | 8 | 1.0 |
| 125 | LMG125 | 28 | 8 | 1.0 |
| 140 | LMG140 | 28 | 8 | 1.0 |
| 150 | LMG150 | 28 | 8 | 1.0 |
| 160 | LMG160 | 28 | 8 | 1.0 |
| 180 | LMG180 | 28 | 8 | 1.0 |
| 200 | LMG200 | 28 | 8 | 1.0 |
| 225 | LMG225 | 28 | 8 | 1.0 |
| 250 | LMG250 | 28 | 8 | 1.0 |
| 275 | LMG275 | 28 | 8 | 1.0 |
| 300 | LMG300 | 28 | 8 | 1.0 |
| 315 | LMG315 | 28 | 8 | 1.2 |
| 350 | LMG350 | 28 | 8 | 1.2 |
| 400 | LMG400 | 28 | 8 | 1.2 |
| 450 | LMG450 | 28 | 8 | 1.2 |
| 500 | LMG500 | 28 | 8 | 1.2 |
| 550 | LMG550 | 28 | 8 | 1.2 |
| 600 | LMG600 | 28 | 8 | 1.2 |
Features:
1. Practically leak-proof
2. Durable, long time anti-rust
3. Easilly and quickly connection with pipe
4. Full Diameter, from 80mm to 600mm, and customized size welcome if bigger than 600mm.
Packing:
Usually put into wooden cases, smaller diameter into bigger diameter to save space.
Other types of clamps:
Company:
We develop and manufacture modular ducting, circular ductwork in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. Our ducting system adopts the flanged/lip edge quick connection way, allowing rapid installation with no special tools needed. Products including pressed bends / segmented bends( R=1.5D, R=2D , material involving hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from 80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.
-
