Product Details:
|
| Name: | Spiral Duct Clamps | Material: | Carbon Steel |
|---|---|---|---|
| Size: | 75-600mm | Application: | Dust Collection , Filtration, Bulk Material Handling |
| Wall Thickness: | 1.0mm | Bandwidth: | 48mm |
| Lock: | Quick Release Pull Ring | Rubber: | TPE |
| Package: | Carton, Wooden Case | Delivery Time: | 7Days If Stock, 15-25days For Mass Production |
| High Light: | 600mm galvanized pipe clips,modular air duct galvanized pipe clips,600mm galvanized pipe clamp |
||

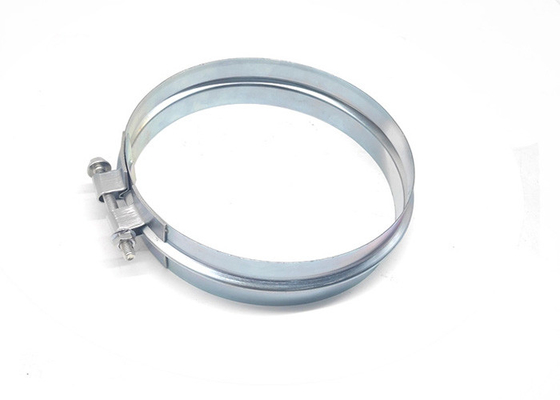

Wide Spiral Round hot dipping air duct galvanized steel clamps for modular duct
Round hot dipping air duct galvanized steel clamps is developed to provide a strong and leak free connection without the use of duct sealants. The round duct connector system consists of two mating round duct connector flanges with an integral mastic in the duct receiving pocket and a closure ring roll-formed from hot dipped galvanized steel.
Features and benefits:
Air-tight , efficient
Simple self-sealing connection
Consistent connections
No additional sealing required
Can be installed on-site
Sizes from 8”-72” (203.2mm-1828.8mm)
For sizes larger than 72” consult factory
Available in specialty metals
4. Available sizes are from 75mm to 650mm, 3” to 26”
Specification:
| Φ Diameter mm | Product Code | A mm | H mm | Thickness mm |
| 75 /80 | KG80 | 48 | 8 | 0.8 |
| 100 | KG100 | 48 | 8 | 0.8 |
| 120 | KG120 | 48 | 8 | 0.8 |
| 125 | KG125 | 48 | 8 | 0.8 |
| 140 | KG140 | 48 | 8 | 0.8 |
| 150 | KG150 | 48 | 8 | 0.8 |
| 160 | KG160 | 48 | 8 | 0.8 |
| 180 | KG180 | 48 | 8 | 0.8 |
| 200 | KG200 | 48 | 8 | 0.8 |
| 225 | KG225 | 48 | 8 | 0.8 |
| 250 | KG250 | 48 | 8 | 0.8 |
| 275 | KG275 | 48 | 8 | 0.8 |
| 300 | KG300 | 48 | 8 | 0.8 |
| 315 | KG315 | 48 | 8 | 1.0 |
| 350 | KG350 | 48 | 8 | 1.0 |
| 400 | KG400 | 48 | 8 | 1.0 |
| 450 | KG450 | 48 | 8 | 1.0 |
| 500 | KG500 | 48 | 8 | 1.0 |
| 550 | KG550 | 48 | 8 | 1.0 |
| 600 | KG600 | 48 | 8 | 1.0 |
Packing:
Usually in wooden case.
Smaller size into bigger size.
Applications of Galvanized Steel Clamps:
1. Dust extraction, fume extraction and exhaust air, dust collection, welding extraction, process ventilation, air filtration systems, transport of particles and air, bulk handling and low pressure pneumatic transport.
2. Specific industry like woodworking, milling, conveying cement,agriculture, timber,plastic, paper, textile, recycling, powder material,powder painting, sandblasting, metal working industries like the welding, laser, tobacco and medical industry/pharmaceutical and so on.
