Adjustable Ducting Galvanized Steel Clamps For Dust Collection Pipe

Adjustable Ducting Galvanized Steel Clamps For Dust Collection Pipe

adjustable ducting galvanized steel clamps

dust collection pipe galvanized steel clamps

dust collection pipe galvanized full clamp

Place of Origin:

China

CONTACT US
Request A Quote
Product Details
Name:
Galvanized Ducting Clamp
Material:
Carbon Steel
Size:
75-600mm
Application:
Dust Collection , Filtration, Bulk Material Handling
Wall Thickness:
1.0mm
Bandwidth:
28mm
Lock:
Quick Release Pull Ring
Rubber:
TPE
Package:
Carton, Wooden Case
Delivery Time:
7Days If Stock, 15-25days For Mass Production
Payment & Shipping Terms
Minimum Order Quantity
20pc
Price
USD$ 1.95/PC
Packaging Details
carton , pallet, wooden case
Delivery Time
7-25 DAYS
Payment Terms
L/C, T/T, Western Union
Supply Ability
10000PCS/MONTH
Product Description

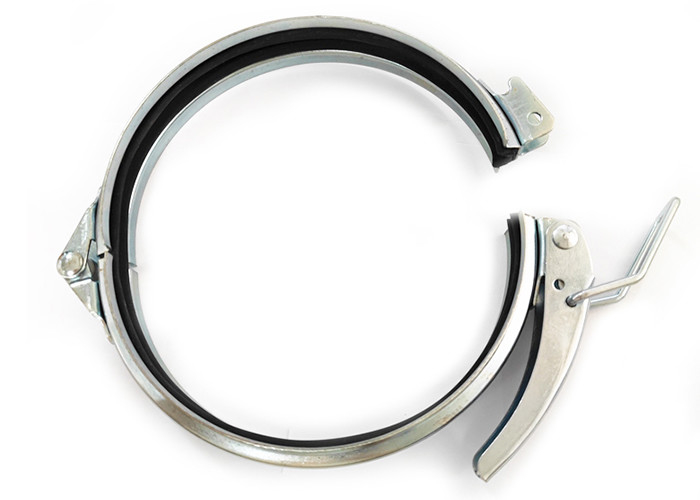

Adjustable galvanized ducting clamp for dust collection pipe



Features:

  • Quick release handle, quick fit, quick disassemble
  • Practically leak-proof, air tightness
  • Corrosion Proof
  • Re-usable
  • Locking Pin for secure tight
  •

Description:



1. Galvanized ducting clamp is made of mild steel with zinc plated surface, stainless steel material version is available too, standard material thickness is 1.0-1.2mm, 2mm customized thickness could be met.

2. This clamp have band width 28mm (or customized) , fit for standard flange pipe or tubing, the band design has V structure, U band clamp is available too for round lipped ducting pipe.

3. Standard gasket TPE or Silicone rubber, customized material please contact us.

4. Available sizes are from 75mm to 650mm, 3” to 26”



Applications of Galvanized Steel Clamps:



1. Dust extraction, fume extraction and exhaust air, dust collection, welding extraction, process ventilation, air filtration systems, transport of particles and air, bulk handling and low pressure pneumatic transport.

2. Specific industry like woodworking, milling, conveying cement,agriculture, timber,plastic, paper, textile, recycling, powder material,powder painting, sandblasting, metal working industries like the welding, laser, tobacco and medical industry/pharmaceutical and so on.



Specification:



Φ Diameter mm Product Code A mm H mm Thickness mm
75 /80 BMG80 28 8 1.0
100 BMG100 28 8 1.0
120 BMG120 28 8 1.0
125 BMG125 28 8 1.0
140 BMG140 28 8 1.0
150 BMG150 28 8 1.0
160 BMG160 28 8 1.0
180 BMG180 28 8 1.0
200 BMG200 28 8 1.0
225 BMG225 28 8 1.0
250 BMG250 28 8 1.0
275 BMG275 28 8 1.0
300 BMG300 28 8 1.0
315 BMG315 28 8 1.2
350 BMG350 28 8 1.2
400 BMG400 28 8 1.2
450 BMG450 28 8 1.2
500 BMG500 28 8 1.2
550 BMG550 28 8 1.2
600 BMG600 28 8 1.2



Adjustable Ducting Galvanized Steel Clamps For Dust Collection Pipe 0

Packing:



Usually in carton or wooden case, 5 pieces in a bundle.

Smaller size into bigger size.



Adjustable Ducting Galvanized Steel Clamps For Dust Collection Pipe 1



Other types of clamps:



Adjustable Ducting Galvanized Steel Clamps For Dust Collection Pipe 2



About US:



We manufacture modular ducting in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. like pressed bends ; straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.
