Product Details:
|
| Name: | Galvanized Steel Clamps For Duct | Material: | Carbon Steel |
|---|---|---|---|
| Size: | 75-600mm | Application: | Dust Collection , Filtration, Bulk Material Handling |
| Wall Thickness: | 1.0mm | Bandwidth: | 28mm |
| Lock: | Quick Release Pull Ring | Rubber: | Black TPE |
| Package: | Carton, Wooden Case | Delivery Time: | 7Days If Stock, 15-25days For Mass Production |
| High Light: | 160mm galvanized steel hose clamp,quick latch galvanized steel hose clamp,160mm galvanised clamps |
||

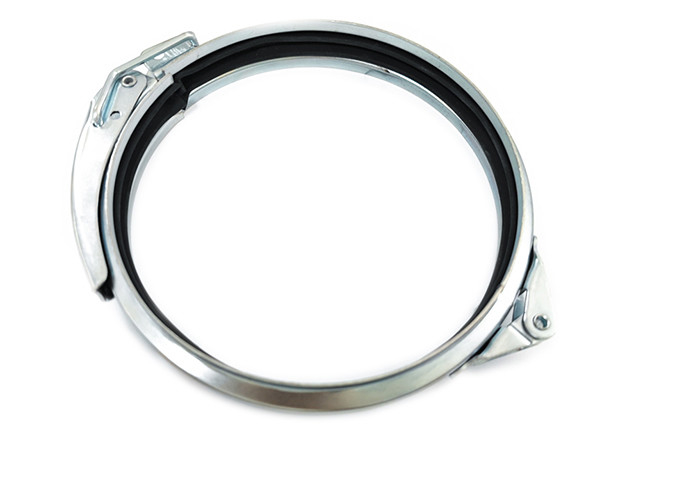

160mm Quick latch flange round duct galvanized steel clamps
Galvanized steel clamps is made of mild steel with zinc plated surface, stainless steel material version is available too, standard material thickness is 1.0-1.2mm, 2mm customized thickness could be met with band width 28mm (or customized) , fit for standard flange pipe or tubing, the band design has V structure, U band clamp is available too for round lipped ducting pipe, Standard gasket TPE or Silicone rubber, customized material please contact us.Available sizes are from 75mm to 650mm, 3” to 26”
Features:
Specification:
| Φ Diameter mm | Product Code | A mm | H mm | Thickness mm |
| 75 /80 | BMG80 | 28 | 8 | 1.0 |
| 100 | BMG100 | 28 | 8 | 1.0 |
| 120 | BMG120 | 28 | 8 | 1.0 |
| 125 | BMG125 | 28 | 8 | 1.0 |
| 140 | BMG140 | 28 | 8 | 1.0 |
| 150 | BMG150 | 28 | 8 | 1.0 |
| 160 | BMG160 | 28 | 8 | 1.0 |
| 180 | BMG180 | 28 | 8 | 1.0 |
| 200 | BMG200 | 28 | 8 | 1.0 |
| 225 | BMG225 | 28 | 8 | 1.0 |
| 250 | BMG250 | 28 | 8 | 1.0 |
| 275 | BMG275 | 28 | 8 | 1.0 |
| 300 | BMG300 | 28 | 8 | 1.0 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Packing:
Usually in carton or wooden case, 5 pieces in a bundle.
Smaller size into bigger size.
Applications of Galvanized Steel Clamps:
1. Dust extraction, fume extraction and exhaust air, dust collection, welding extraction, process ventilation, air filtration systems, transport of particles and air, bulk handling and low pressure pneumatic transport.
2. Specific industry like woodworking, milling, conveying cement,agriculture, timber,plastic, paper, textile, recycling, powder material,powder painting, sandblasting, metal working industries like the welding, laser, tobacco and medical industry/pharmaceutical and so on.
Other types of clamps:
About US:
We manufacture modular ducting in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. like pressed bends ; straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.
