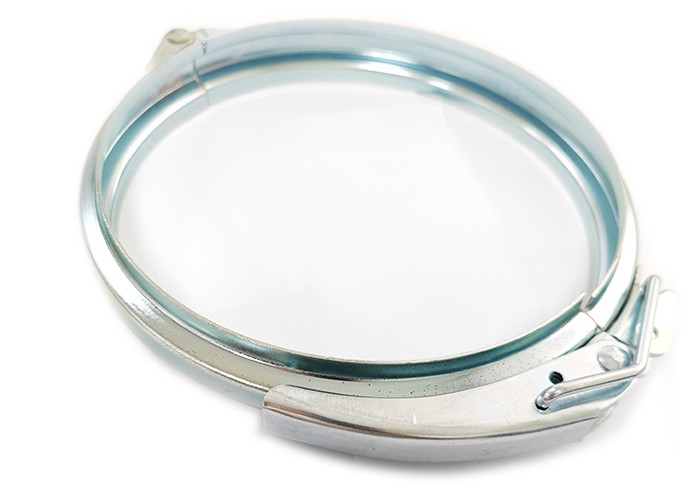

Quick Release 550mm Galvanized Steel Clamps Custom For Spiral Duct

Quick Release 550mm Galvanized Steel Clamps Custom For Spiral Duct
Quick Release 550mm Galvanized Steel Clamps Custom For Spiral Duct

Large Image :  Quick Release 550mm Galvanized Steel Clamps Custom For Spiral Duct

Product Details:
Place of Origin: Hebei , China
Brand Name: YP
Model Number: BGM
Payment & Shipping Terms:
Minimum Order Quantity: 20pc
Price: USD$ 1.95/PC
Packaging Details: carton , pallet, wooden case
Delivery Time: 7-25 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH
Detailed Product Description
Name: Galvanized Steel Clamps For Duct Material: Carbon Steel
Size: 75-600mm Application: Dust Collection , Filtration, Bulk Material Handling
Wall Thickness: 1.0mm Bandwidth: 28mm
Lock: Quick Release Pull Ring Gasket: No
Package: Carton, Wooden Case Delivery Time: 7Days If Stock, 15-25days For Mass Production
High Light:

550mm galvanized steel clamps

,

spiral duct galvanized steel clamps

,

550mm galvanized hose clamps

Quick Release custom galvanized steel clamps for spiral duct



Description:



Material Carbon steel
Bandwith 28mm
Lock Quick handle
Specification 75mm-650mm



1. Galvanized steel clamps is made of mild steel with zinc plated surface, stainless steel material version is available too, standard material thickness is 1.0-1.2mm, 2mm customized thickness could be met.

2. This clamp have band width 28mm (or customized) , fit for standard flange pipe or tubing, the band design has V structure, U band clamp is available too for round lipped ducting pipe.

3. Available sizes are from 75mm to 650mm, 3” to 26”



Specification:



Φ Diameter mm Product Code A mm H mm Thickness mm
75 /80 BMG80 28 8 1.0
100 BMG100 28 8 1.0
120 BMG120 28 8 1.0
125 BMG125 28 8 1.0
140 BMG140 28 8 1.0
150 BMG150 28 8 1.0
160 BMG160 28 8 1.0
180 BMG180 28 8 1.0
200 BMG200 28 8 1.0
225 BMG225 28 8 1.0
250 BMG250 28 8 1.0
275 BMG275 28 8 1.0
300 BMG300 28 8 1.0
315 BMG315 28 8 1.2
350 BMG350 28 8 1.2
400 BMG400 28 8 1.2
450 BMG450 28 8 1.2
500 BMG500 28 8 1.2
550 BMG550 28 8 1.2
600 BMG600 28 8 1.2



Features:

  • Quick release handle, quick fit, quick disassemble
  • Practically leak-proof, air tightness
  • Corrosion Proof
  • Re-usable
  • Locking Pin for secure tight
  • Quick Release 550mm Galvanized Steel Clamps Custom For Spiral Duct 0

Packing:



Usually in carton or wooden case, 5 pieces in a bundle.

Smaller size into bigger size.



Quick Release 550mm Galvanized Steel Clamps Custom For Spiral Duct 1



Applications of Galvanized Steel Clamps:



1. Dust extraction, fume extraction and exhaust air, dust collection, welding extraction, process ventilation, air filtration systems, transport of particles and air, bulk handling and low pressure pneumatic transport.

2. Specific industry like woodworking, milling, conveying cement,agriculture, timber,plastic, paper, textile, recycling, powder material,powder painting, sandblasting, metal working industries like the welding, laser, tobacco and medical industry/pharmaceutical and so on.

Other types of clamps:



Quick Release 550mm Galvanized Steel Clamps Custom For Spiral Duct 2



About US:



We manufacture modular ducting in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. like pressed bends ; straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.

Our goals:

 1.To provide each customer with high-quality services

 2.To take responsibility for the quality of our products

 3.To do our job with a smile and in a good mood!



Quick Release 550mm Galvanized Steel Clamps Custom For Spiral Duct 3

Quick Release 550mm Galvanized Steel Clamps Custom For Spiral Duct 4
