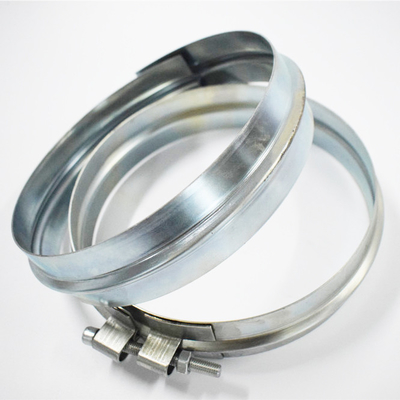

Dust Collection Galvanized Steel Hose Clamp 150mm - 600mm Size

Dust Collection Galvanized Steel Hose Clamp 150mm - 600mm Size
Dust Collection Galvanized Steel Hose Clamp 150mm - 600mm Size Dust Collection Galvanized Steel Hose Clamp 150mm - 600mm Size

Large Image :  Dust Collection Galvanized Steel Hose Clamp 150mm - 600mm Size

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YPWP600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1.5-$6.0
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: Carbon Steel Wide Tension Clip For Dust Collection Round Ductwork 150mm - 600mm OEM Size As Request Usage: Flange Duct Connection Clamp
Materials: Carbon Steel ( Stainless Steel As Option) Surface Treatment: Electro-galvanizing / Hot Dipping
Band Width: 48mm Or Customized Inside Diameter: 150mm -600mm Or OEM Size Need Discussed
Application: Round Clip Duct / Galvanised Flanged Pipe System Package: Carton Or Wooden Case
Market: USA, European Country Like Poland, Uk, Germany, Sweden, Norway Etc Fitment: Flange Ducting / Clip Ducting
Unit Price: $1.5-$6.0 According To Size
High Light:

dust collection galvanized steel hose clamp

,

600mm galvanized steel hose clamp

,

150mm galvanized steel clamps

Carbon Steel Wide Tension Clip For Dust Collection Round Ductwork 150mm - 600mm OEM Size As Request



The wide pull ring is made of superior carbon steel with electro-galvanzing and structured by 1 piece or 2 pieces of bands with bolt connection. It can be open and closed easily without any tools. Wide clamp used for connection of duct of 1mm or 1.2mm. widely applied in dust collection, air filtration, and particle conveying.



Specification of wide clamp ring:

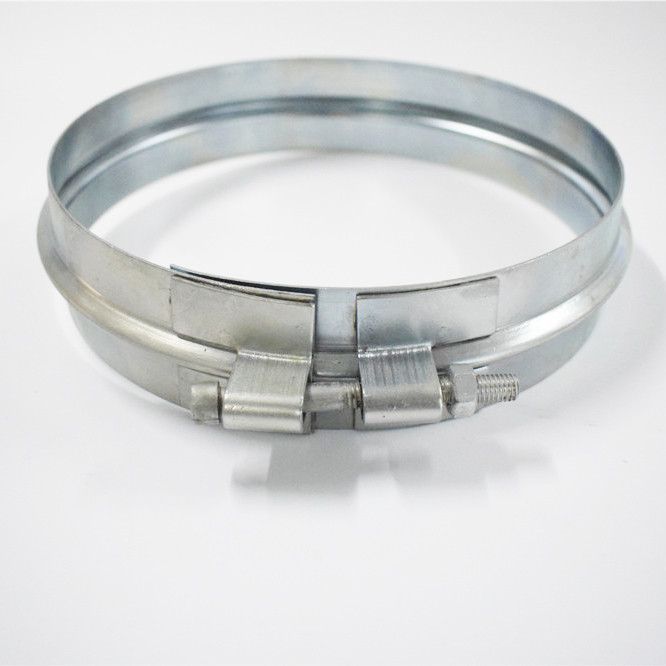

Dust Collection Galvanized Steel Hose Clamp 150mm - 600mm Size 0Dust Collection Galvanized Steel Hose Clamp 150mm - 600mm Size 1





ɸD PRODUCT CODE A H Thickness
mm mm mm mm
150 KG150 48 8 0.8
160 KG160 48 8 0.8
180 KG180 48 8 0.8
200 KG200 48 8 0.8
225 KG225 48 8 0.8
250 KG250 48 8 0.8
275 KG275 48 8 0.8
300 KG300 48 8 0.8
315 KG315 48 8 0.8
350 KG350 48 8 0.8
400 KG400 48 8 0.8
450 KG450 48 8 0.8
500 KG500 48 8 0.8
550 KG550 48 8 0.8
600 KG600 48 8 0.8



Application of wide clamp ring:



  • Used for larger Diameters duct.
  • This clip is used to join to Clip system ducts together Can be used with rubber seal to decrease the pressure loss in the duct.
  • Designed in two pieces for fast easy fixing capabilities.
  • Fixing info:- Place tension clip over the two joints and tighten with the supplied screws.
  • It was widely used in followed ductworks:

  1. Dust Removal, some factories produce a lot of dust in the workshop,which requires special dust removal devices, where the wind flow is large and the modular pipe system can be used. Clamp is the main role of ducting.
  2. Bulk material handing, some of the factory production process, the need to transport loose particles, especially the small proportion of such foam plastic grain using modular piping system, clamp ring is low cost, good effect, in addition, it is more convenient to maintain and save working time.
  3. Except the usage of pipes and ducts, clamps are widely applied in vehicles, ships, diesel engine. gasoline engine, machine tools, fire protection etc. All kinds of mechanical equipment, chemical equipment, ordianary ruber hose,n ylon plastic hose, fabric hose, outlet connetion fastening and sealing

Packaging of wide clamp rings:



Wooden case for multi-sizes

Dust Collection Galvanized Steel Hose Clamp 150mm - 600mm Size 2





Relative modular ducting from us:



Lever clamp 75-600mm
Pressed bend 30/45/60/90 degree
Sliding damper 80-300mm
blast gate 50mm-630mm Manual or autmatic
Slim ring clamp 80-600mm
Duct length 100-600mm
Butterfly damper 80-300mm
Pipe hanger  80-400mm
Y branch T piece Dimension as request



Dust Collection Galvanized Steel Hose Clamp 150mm - 600mm Size 3
