Product Details:
|
| Product Name: | Galvanized Steel Pipe Hanger With M8 Nuts For Industrial Round Duct 80mm-400mm OEM Accepted | Usage: | Pipe Suspension Clamp |
|---|---|---|---|
| Materials: | Carbon Steel / Mild Steel / Stainless Steel | Surface Treatment: | Electro-galvanizing / Hot Dipping / Polished |
| Inside Diameter: | 80mm, 100mm, 120mm, 125mm'150mm, 180mm, 200mm Upto 400mm | Band Width: | 28mm |
| Nuts: | M8 Or M10 As Request | Application: | Circular Duct, Round Pipe |
| Market: | European Market, Oceania Market, Southeast Asia. | Relative Product: | Modular Ducting Like Duct Length, Elbow, Blast Gate, Trousers, T Piece Etc. |
| Unit Price: | $0.85 | Advantage: | Factory Direct Supply |
| High Light: | m8 nuts galvanized steel clamps,80mm galvanized steel clamps,400mm galvanized steel pipe clamp |
||

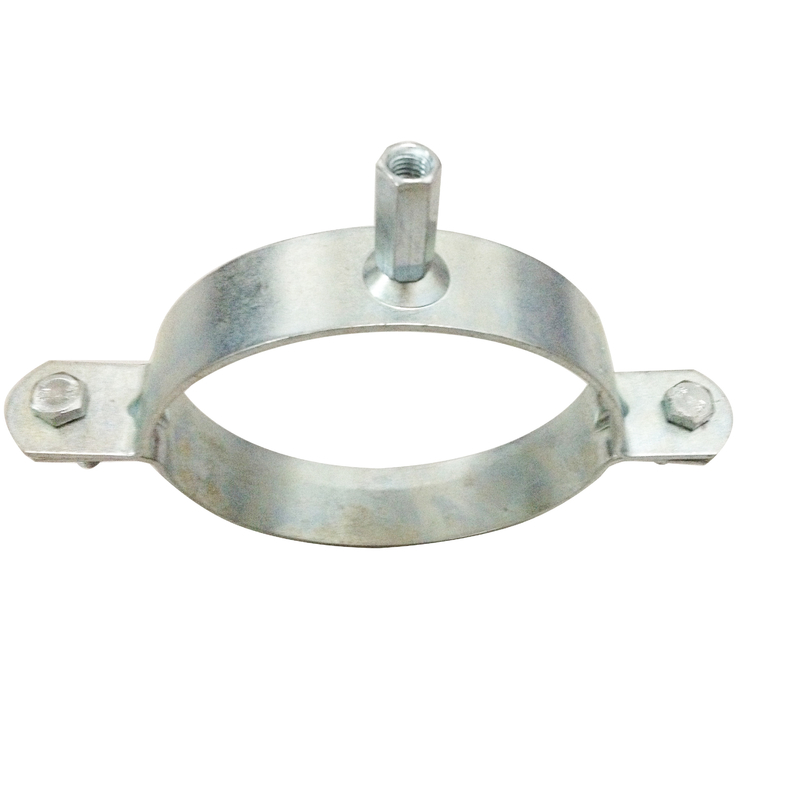

Galvanized Steel Pipe Hanger With M8 Nuts For Industrial Round Duct 80mm-400mm OEM Accepted
Steel pipe hanger is supplied from dia. 80mm up to 400mm. ( Please check our followed specification list for detailed size)
Our this hanging bracket is made of 2mm carbon steel and done electro-galvanzing, which is rust-proof. Band width is 28mm, M8 Or M10 Nuts. OEM design and size can be supplied as request.
Specification of pipe hanger:
|
øD MM |
PRODUCT CODE |
A MM |
H MM |
THICKNESS MM |
| 80 | DG80 | 28 | 71 | 2 |
| 100 | DG100 | 28 | 81 | 2 |
| 120 | DG120 | 28 | 91 | 2 |
| 125 | DG125 | 28 | 94 | 2 |
| 140 | DG140 | 28 | 101 | 2 |
| 150 | DG150 | 28 | 106 | 2 |
| 160 | DG160 | 28 | 111 | 2 |
| 180 | DG160 | 28 | 121 | 2 |
| 200 | DG200 | 28 | 131 | 2 |
| 225 | DG225 | 28 | 144 | 2 |
| 250 | DG225 | 28 | 156 | 2 |
| 275 | DG275 | 28 | 169 | 2 |
| 300 | DG300 | 28 | 181 | 2 |
| 350 | DG350 | 28 | 206 | 2 |
| 400 | DG400 | 28 | 231 | 2 |
Application of pipe hanger:
Clevis pipe hanger are pipe supports that are designed to secure hanging or elevated pipe runs. If you need to suspend piping from elevated beams or the ceiling, clevis hangers are a lifesaver. They are widely used in industry ductwork system.
Dust collection ductwork
Industrial ducting
Oil mist & cutting fluid applications
High vacuum pipe fittings
Mild steel duct
Woodworking
Coofee roasting
Concrete & cement production
Grain processing
Polymer and plastic processing
Packaging and delivery time of pipe hanger:
10pcs per plastic bag, carbon box
Lead time: in 7 days if stocks available. otherwise against the order quantity.
Relative products from us:
Quick lock modular ductwork is a complete ventilation system of galvanised ducts and fittings with diameter range from Ø 80 to Ø 600 mm with rolled edge for industrial dust extraction systems. Industrial dust extraction ducting is used in welding industry, metalworking industry, woodworking industry, energy industry, ceramic, food and pharmaceutical industry. Installation air-tightness is crucial for this type of systems, since any kind of leakage may cause dust get outside of the ductwork and reduce dust extraction efficiency.
Quick lock modular ducting system consists of butt-welded pipes, bends, tees, reducers, adapters and sliding dampers as well as the most important element namely - quick lock and release clamps which ensure strong and airtight connection of components. The whole modular system has rolled-up lip at 90-degree angle, about 5-7 mm height.
