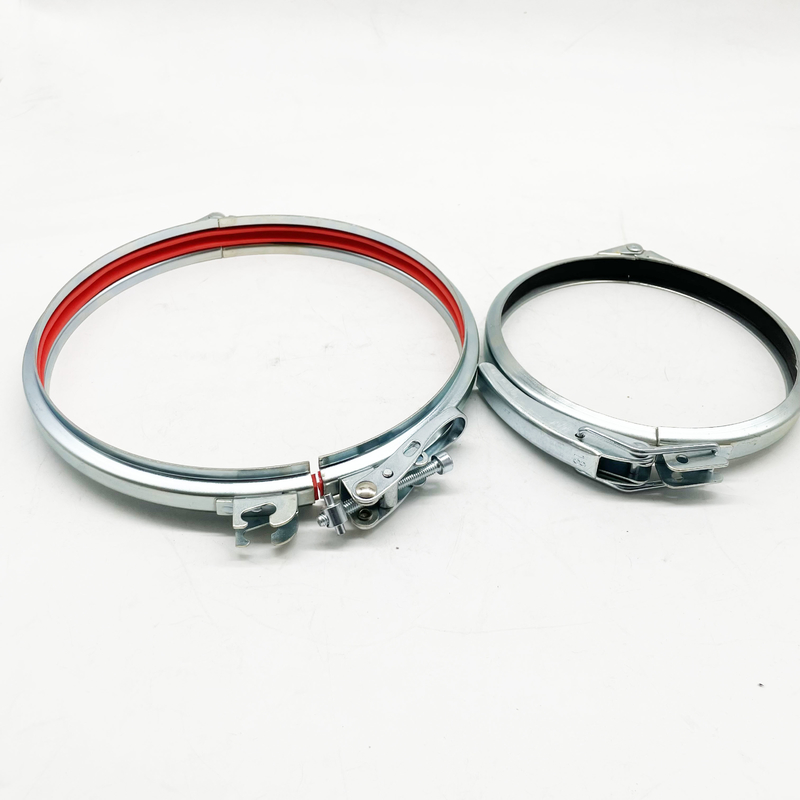

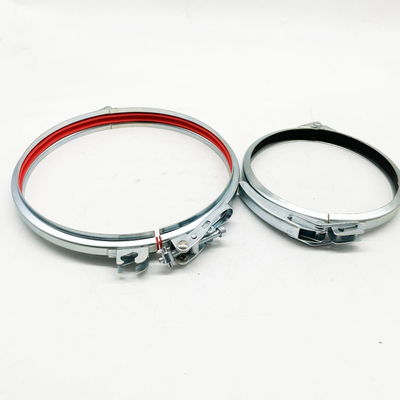

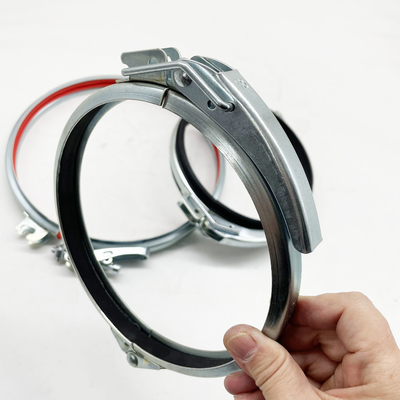

6" Galvanised Pipe Repair Clamp Dust Extraction Modular Duct With Gasket

6" Galvanised Pipe Repair Clamp Dust Extraction Modular Duct With Gasket
6" Galvanised Pipe Repair Clamp Dust Extraction Modular Duct With Gasket 6" Galvanised Pipe Repair Clamp Dust Extraction Modular Duct With Gasket

Large Image :  6" Galvanised Pipe Repair Clamp Dust Extraction Modular Duct With Gasket

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YPVBC150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2.8
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: 6" Dust Extraction Modular Duct Clamp With Gasket Galvanized Carbon Steel Pipe Clamp Usage: Modular Ductwork Connection Clamp
Materials: Carbon Steel / Mild Steel / Stainless Steel Surface Treatment: Electro-galvanizing / Hot Dipping
Band Width: 25mm Or Customized Inside Diameter: 152 Mm / 6 Inch
Lining: EPDM / TPE / Foam Gasket Gasket Color: Black Or Red
Application: Dust Extraction / Particle Conveying / Vacuum System Package: Carton Or Wooden Case
Market: American Market, European Market, Oceania Market Relative Product: Flange Ducting Like Bend, Sliding Damper, Blast Gate, Duct Length
Unit Price: $2.8
High Light:

6" galvanised pipe repair clamp

,

gasket galvanised pipe repair clamp

,

6" galvanized steel clamps

6" Dust Extraction Modular Duct Clamp With Gasket Galvanized Carbon Steel Pipe Clamp







  • Clamp-together duct clamp were used in a wide variety of industries, from cement production to food and pharmaceutical manufacturing, in facilities of all sizes – from large manufacturing plants to small labs to one-person woodworking shops, almost anywhere de-dusting is required. The quick connect clamp in conjunction with the rolled ends or straight ends on components allow quick and easy installation or disassembly.
  • Main market: USA, Sweden, Norway, Poland, Germany, UK, Australia, New zealand, etc.

6" Galvanised Pipe Repair Clamp Dust Extraction Modular Duct With Gasket 0



Specification of clamp-together ducting camp:



ɸDiameter inch Product code  A mm H mm  Thickness mm
3 BMG80 28 8 1
4 BMG100 28 8 1
5 BMG125 28 8 1
6 BMG150 28 8 1
8 BMG200 28 8 1
10 BMG250 28 8 1
12 BMG300 28 8 1
14 BMG350 28 8 1
16 BMG400 28 8 1
18 BMG450 28 8 1
20 BMG500 28 8 1
22 BMG550 28 8 1
24 BMG600 28 8 1


Feature of clamp-together clamp:



The lever latches create a fast lock and disassembly and reduces installation time to almost half that of conventional methods of ducting.

The gasket of Foam or rubber supply connection sealed. Black or red color can be supplied.

Galvanized pipe clamp are made of carbon steel or mild steel with higher quality galvanizing which is rust-proof under bad circumstance.

It was widely applied in industrial facotry for dust collection / fume extraction system pipe fittings. adjustable pipe clamp features a liner / gasket in clamp band, which supplies a better sealing for ducting.  It provides optimal protection for pipe applications.



6" Galvanised Pipe Repair Clamp Dust Extraction Modular Duct With Gasket 1

Application of quick release clamp:



Dust collection ductwork

Industrial ducting

Oil mist & cutting fluid applications

High vacuum pipe fittings

Mild steel duct

Woodworking

Coofee roasting

Concrete & cement production

Grain processing

Polymer and plastic processing

Ducting for metalworking

 Collection Ductwork



  • Dust Removal, some factories produce a lot of dust in the workshop,which requires special dust removal devices, where the wind flow is large and the modular pipe system can be used. Rapid lock clamp plays the important role in installation.

  • Bulk material handing, some of the factory production process,the need to transport loose particles, especially the small proportion of such foam plastic grain using modular piping system, lever clamp is low cost, good effect, in addition, it is more convenient to maintain and save working time.

  • Except the usage of pipes and ducts, clamps are widely applied in vehicles, ships, diesel engine. gasoline engine, machine tools, fire protection etc. All kinds of mechanical equipment, chemical equipment, ordianary ruber hose,n ylon plastic hose, fabric hose, outlet connetion fastening and sealing​





6" Galvanised Pipe Repair Clamp Dust Extraction Modular Duct With Gasket 2



Packaging and delivery time:



For muti-sizes, we choose wooden case to pack clamps. Smaller sizes in bigger sizes to save space.

For unitary size, we use carton box.

5pcs per bundle. Tidely put in crates layer by layer

Lead time: in 7 days if stocks available. otherwise against the order quantity.







Relative products from us:



Modular ductwork is a complete ventilation system of galvanised ducts and fittings with diameter range from Ø 100 to Ø 600 mm with rolled edge for industrial dust extraction systems. Industrial dust extraction ducting is used in welding industry, metalworking industry, woodworking industry, energy industry, ceramic, food and pharmaceutical industry. Installation air-tightness is crucial for this type of systems, since any kind of leakage may cause dust get outside of the ductwork and reduce dust extraction efficiency.

Modular ducting system consists of butt-welded pipes, bends, tees, reducers, adapters and sliding dampers as well as the most important element namely - FLKA-C clamps which ensure strong and airtight connection of components. TRANS-Quick modular system has rolled-up lip at 90-degree angle, about 5-7 mm height.



Contact us:



Please contact Lily zhang for details. I am working here from 8:00 am to 5:00 pm on Monday~Friday.
