Product Details:
|
| Product Name: | Dust Collection Pipe Clamp Ring Carbon Steel Quick Release Duct Clamps 160mm | Usage: | Pipe Connection / Duct Connect |
|---|---|---|---|
| Materials: | Carbon Steel Or Stainless Steel 304 | Surface Treatment: | Electro-galvanizing / Hot Dipping / Polished |
| Inside Diameter: | 160mm. Other Sizes Please Check Our Specification List | Lining Gasket: | Without (with Gasket As Option) |
| Application: | Circular Duct, Galvanized Flange Pipe, Round Clip Duct Etc | Package: | Carton Or Wooden Case |
| Market: | European Market, Oceania Market, Southeast Asia. | Relative Product: | Clamp Together Modular Ducting Like Duct Length, Elbow, Blast Gate, Trousers, T Piece Etc. |
| Unit Price: | $2.2 | ||
| High Light: | hot dipping quick release duct clamps,160mm quick release duct clamps,160mm quick release duct hose clamp |
||

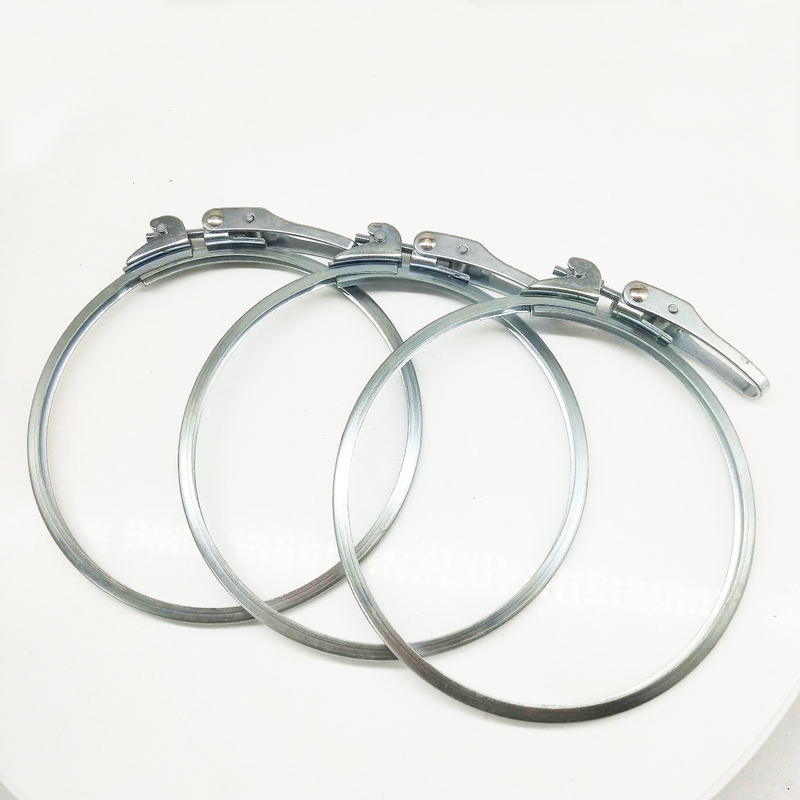

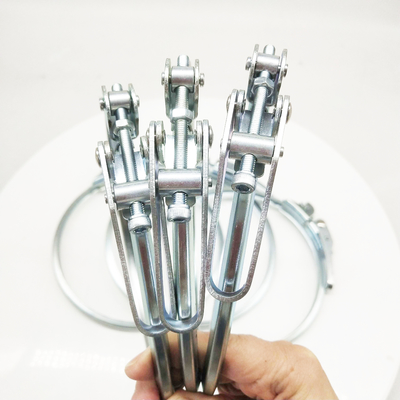

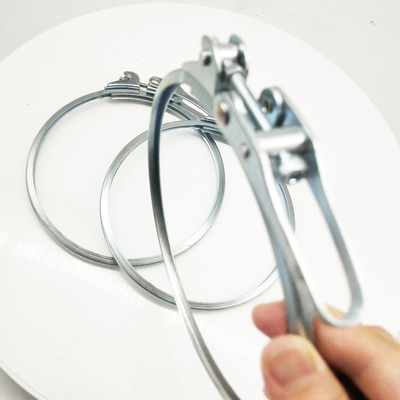

Dust Collection Pipe Clamp Ring Carbon Steel Quick Release Duct Clamps 160mm
As the important role of modular ducting for dust collection system, the slim clamping rings consist of galvanized carbon steel or stainless steel and connect pipe segments or pipe components with screws or lever fasteners. They are suitable for diameters ranging from 80mm to 600mm duct. Profiles could be manufactured according to specification provided by customers.
Features of slim pull ring
Specification of slim pull ring:
OEM structures are available as request
| ɸDiameter mm | Product code | A mm | H mm | Thickness mm |
| 80 | BMG80 | 8 | 6.37 | 1 |
| 100 | BMG100 | 8 | 6.37 | 1 |
| 120 | BMG120 | 8 | 6.37 | 1 |
| 125 | BMG125 | 8 | 6.37 | 1 |
| 140 | BMG140 | 8 | 6.37 | 1 |
| 150 | BMG150 | 8 | 6.37 | 1 |
| 160 | BMG160 | 8 | 6.37 | 1 |
| 180 | BMG180 | 8 | 6.37 | 1 |
| 200 | BMG200 | 8 | 6.37 | 1 |
| 225 | BMG225 | 8 | 6.37 | 1 |
| 250 | BMG250 | 8 | 6.37 | 1 |
| 275 | BMG275 | 8 | 6.37 | 1 |
| 300 | BMG300 | 8 | 6.37 | 1 |
| 315 | BMG315 | 8 | 6.37 | 1.2 |
| 350 | BMG350 | 8 | 6.37 | 1.2 |
| 400 | BMG400 | 8 | 6.37 | 1.2 |
| 450 | BMG450 | 8 | 6.37 | 1.2 |
| 500 | BMG500 | 8 | 6.37 | 1.2 |
| 550 | BMG550 | 8 | 6.37 | 1.2 |
| 600 | BMG600 | 8 | 6.37 | 1.2 |
Application of quick release clamp:
Dust collection ductwork
Industrial ducting
Oil mist & cutting fluid applications
High vacuum pipe fittings
Mild steel duct
Woodworking
Coofee roasting
Concrete & cement production
Grain processing
Polymer and plastic processing
Packaging and delivery time of lever clamp:
For multi-sizes, we choose wooden case to pack clamps. Smaller sizes in bigger sizes to save space.
For unitary size, we use carton box.
5pcs per bundle. Tidely put in crates layer by layer
Lead time: in 7 days if stocks available. otherwise against the order quantity.
Relative products from us:
Quick lock modular ductwork is a complete ventilation system of galvanised ducts and fittings with diameter range from Ø 80 to Ø 600 mm with rolled edge for industrial dust extraction systems. Industrial dust extraction ducting is used in welding industry, metalworking industry, woodworking industry, energy industry, ceramic, food and pharmaceutical industry. Installation air-tightness is crucial for this type of systems, since any kind of leakage may cause dust get outside of the ductwork and reduce dust extraction efficiency.
Quick lock modular ducting system consists of butt-welded pipes, bends, tees, reducers, adapters and sliding dampers as well as the most important element namely - quick lock and release clamps which ensure strong and airtight connection of components. The whole modular system has rolled-up lip at 90-degree angle, about 5-7 mm height.
