Product Details:
|
| Product Name: | 160mm Ajustable Slim Pull Ring Galvanized Carbon Steel Quick Release Pipe Connection Clamp With Lever Fasteners | Usage: | Connect Pipe Segments Or Pipe Components |
|---|---|---|---|
| Materials: | Carbon Steel Or Stainless Steel 304 | Surface Treatment: | Electro-galvanizing / Hot Dipping / Polished |
| Inside Diameter: | 160mm | Lining Gasket: | Without |
| Application: | Circular Duct, Galvanized Pipe, Stainless Steel Tube Etc | Package: | Carton Or Wooden Case |
| Market: | European Market, Oceania Market, Southeast Asia. | Relative Product: | Clamp Together Modular Ducting Like Duct Length, Elbow, Blast Gate, Trousers, T Piece Etc. |
| Unit Price: | $2.2 | ||
| High Light: | lever fasteners galvanized steel clamps,carbon 160mm galvanized steel clamps,160mm clamp galvanized |
||

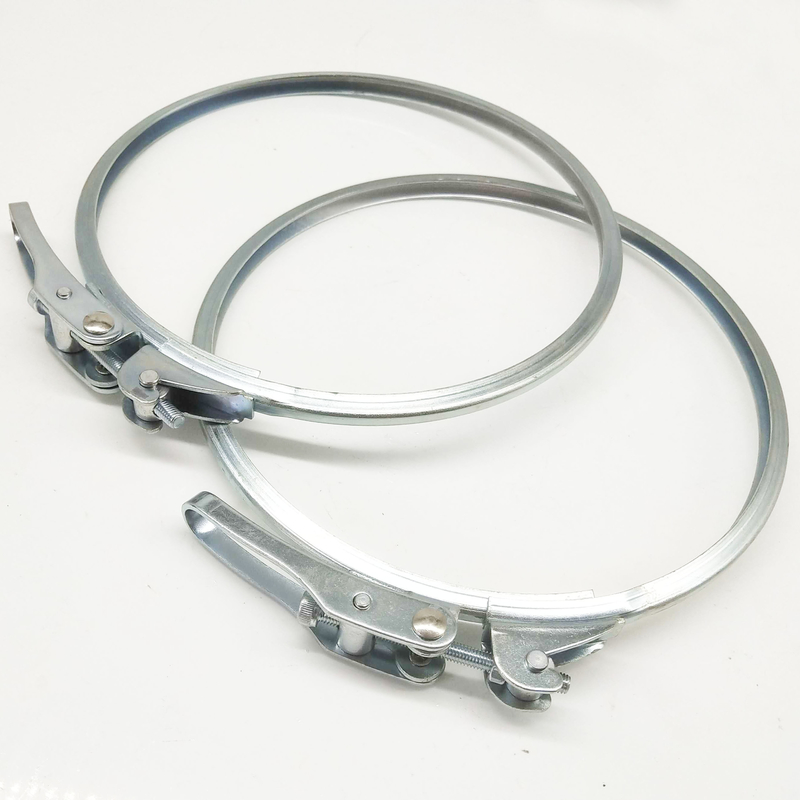

160mm Ajustable Slim Pull Ring Galvanized Carbon Steel Pipe Connection Clamp With Lever Fasteners
Product description:
The slim clamping rings consist of galvanized carbon steel or stainless steel and connect pipe segments or pipe components with screws or lever fasteners. They are suitable for diameters ranging from 80mm to 600mm. Profiles could be manufactured according to specification provided by customers.
Features of slim pull ring
Specification of slim pull ring:
OEM structures are available as request
| ɸDiameter mm | Product code | A mm | H mm | Thickness mm |
| 80 | BMG80 | 8 | 6.37 | 1 |
| 100 | BMG100 | 8 | 6.37 | 1 |
| 120 | BMG120 | 8 | 6.37 | 1 |
| 125 | BMG125 | 8 | 6.37 | 1 |
| 140 | BMG140 | 8 | 6.37 | 1 |
| 150 | BMG150 | 8 | 6.37 | 1 |
| 160 | BMG160 | 8 | 6.37 | 1 |
| 180 | BMG180 | 8 | 6.37 | 1 |
| 200 | BMG200 | 8 | 6.37 | 1 |
| 225 | BMG225 | 8 | 6.37 | 1 |
| 250 | BMG250 | 8 | 6.37 | 1 |
| 275 | BMG275 | 8 | 6.37 | 1 |
| 300 | BMG300 | 8 | 6.37 | 1 |
| 315 | BMG315 | 8 | 6.37 | 1.2 |
| 350 | BMG350 | 8 | 6.37 | 1.2 |
| 400 | BMG400 | 8 | 6.37 | 1.2 |
| 450 | BMG450 | 8 | 6.37 | 1.2 |
| 500 | BMG500 | 8 | 6.37 | 1.2 |
| 550 | BMG550 | 8 | 6.37 | 1.2 |
| 600 | BMG600 | 8 | 6.37 | 1.2 |
Application of quick release clamp:
Except the usage of pipes and ducts, clamps are widely applied in vehicles, ships, diesel engine. gasoline engine, machine tools, fire protection etc. All kinds of mechanical equipment, chemical equipment, ordianary ruber hose,n ylon plastic hose, fabric hose, outlet connetion fastening and sealing
Packaging and delivery time of lever clamp:
For multi-sizes, we choose wooden case to pack clamps. Smaller sizes in bigger sizes to save space.
For unitary size, we use carton box.
5pcs per bundle. Tidely put in crates layer by layer
Lead time: in 7 days if stocks available. otherwise against the order quantity.
Relative products from us:
We have much advantage on making of modular ducting for ventilation system, air fitltration system and vacuum conveying system. Clamp is our mature and hot sale product. Dozen designs of clamps for clients' choice like quick lock lever clamp, adjustable clamp, light duty or heavy duty bolted clamp, U band and V band clamp, Slim tension clip ring, wide pull ring etc. Not limited to clamps, we make pressed elbow, sliding damper, manual or pneumatic blast gate, suspension bracket, butterfly damper, Trousers, duct length, Y branches, Tee piece, reducer etc.
