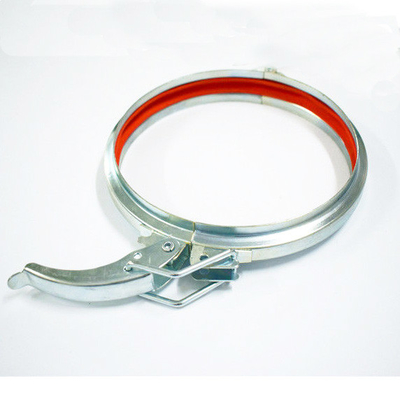

Circular 150mm Air Duct Clamp Galvanized Quick Release Lever For Dust Collection

Circular 150mm Air Duct Clamp Galvanized Quick Release Lever For Dust Collection
Circular 150mm Air Duct Clamp Galvanized Quick Release Lever For Dust Collection Circular 150mm Air Duct Clamp Galvanized Quick Release Lever For Dust Collection Circular 150mm Air Duct Clamp Galvanized Quick Release Lever For Dust Collection

Large Image :  Circular 150mm Air Duct Clamp Galvanized Quick Release Lever For Dust Collection

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YPC150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2.8
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: Circular 150mm Air Duct Clamp Quick Release Lever Clamp For Dust Collection Usage: Duct Connection
Materials: Carbon Steel Or Stainless Steel 304 Surface Treatment: Electro-galvanizing / Hot Dipping / Polished
Band Width: 25mm Or Customized Inside Diameter: 150mm 6"
Lining: With Red Gasket Gasket Materials: TPE Or Rubber
Application: Circular Duct, Galvanized Pipe, Stainless Steel Tube Etc Package: Carton Or Wooden Case
Market: American Market, European Market, Oceania Market Relative Product: Clamp Together Ducting Like Duct Length, Elbow, Blast Gate, Trousers, T Piece Etc.
Unit Price: $2.8
High Light:

150mm clamp galvanized

,

dust collection clamp galvanized

,

150mm galvanized steel clamps

Circular 150mm Air Duct Clamp Quick Release Lever Clamp For Dust Collection



Product description:

  • The quick release lever clamp can achieve speed Install and disassembly of flange ducting. Quick Release Pipe Clamp With Handle and Inner Rubber Seal can quickly connect the ducts and pipes by handle lock mechanism. Just need put the components inside of clamp and push the handle, the components will be connected.
  • The Quick Release duct Clamp With Inner Rubber Seal have good sealing for duct and pipe.
  • The Material of Quick Release Pipe Clamp is stainless steel or carbon steel with zinc plated,  so the anticorrosion is very high.
  • The clamp diameter is from 75mm up to 600mm, wall tickness is 1mm~1.2mm according to sizes, the Inner gasket color can be red or black as requirments of client. Customized design and size are available.

Circular Pipe Clamp Duct Lock Ring Hose Clamp / Quick Release Pipe Clamp Rapid Lock For Ventilation System 1

ɸDiameter mm Product code  A mm H mm  Thickness mm
80 BMG80 28 8 1
100 BMG100 28 8 1
120 BMG120 28 8 1
125 BMG125 28 8 1
140 BMG140 28 8 1
150 BMG150 28 8 1
160 BMG160 28 8 1
180 BMG180 28 8 1
200 BMG200 28 8 1
225 BMG225 28 8 1
250 BMG250 28 8 1
275 BMG275 28 8 1
300 BMG300 28 8 1
315 BMG315 28 8 1.2
350 BMG350 28 8 1.2
400 BMG400 28 8 1.2
450 BMG450 28 8 1.2
500 BMG500 28 8 1.2
550 BMG550 28 8 1.2
600 BMG600 28 8 1.2



Application of quick release clamp:



  • Dust Removal, some factories produce a lot of dust in the workshop,which requires special dust removal devices, where the wind flow is large and the modular pipe system can be used. Rapid lock clamp plays the important role in installation.

  • Bulk material handing, some of the factory production process,the need to transport loose particles, especially the small proportion of such foam plastic grain using modular piping system, lever clamp is low cost, good effect, in addition, it is more convenient to maintain and save working time.

  • Except the usage of pipes and ducts, clamps are widely applied in vehicles, ships, diesel engine. gasoline engine, machine tools, fire protection etc. All kinds of mechanical equipment, chemical equipment, ordianary ruber hose,n ylon plastic hose, fabric hose, outlet connetion fastening and sealing

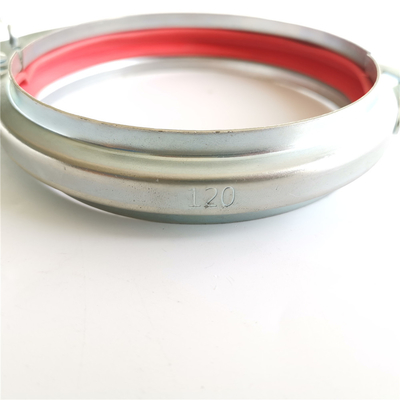

Circular 150mm Air Duct Clamp Galvanized Quick Release Lever For Dust Collection 1



Packaging and delivery time of lever clamp:



For multi-sizes, we choose wooden case to pack clamps. Smaller sizes in bigger sizes to save space.

For unitary size, we use carton box.

5pcs per bundle. Tidely put in crates layer by layer

Lead time: in 7 days if stocks available. otherwise against the order quantity.

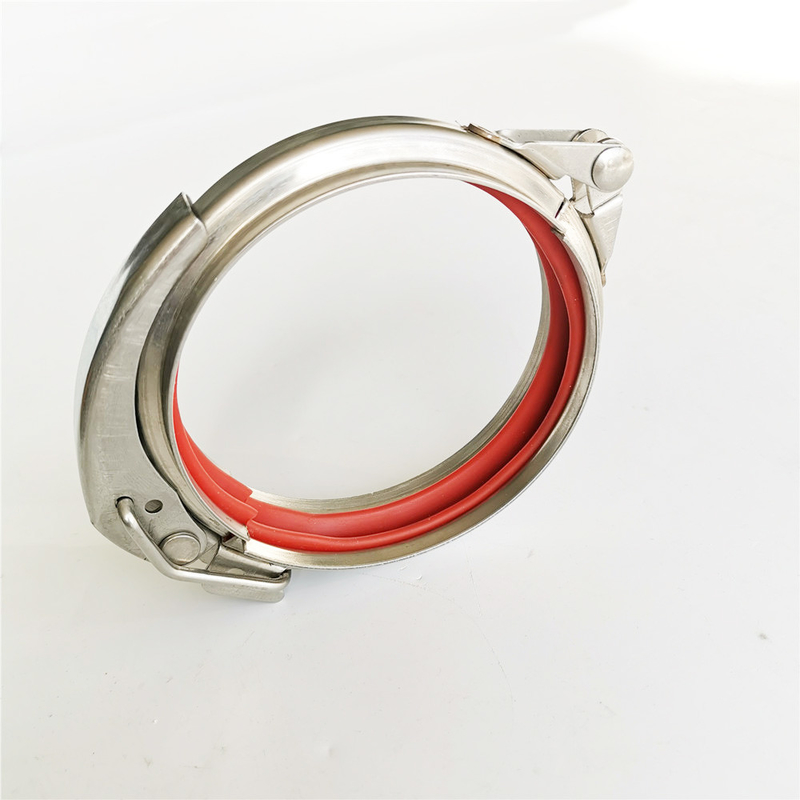

Circular 150mm Air Duct Clamp Galvanized Quick Release Lever For Dust Collection 2



Relative products from us:



We have much advantage on making of modular ducting for ventilation system, air fitltration system and vacuum conveying system. Clamp is our mature and hot sale product. Dozen designs of clamps for clients' choice like quick lock lever clamp, adjustable clamp, light duty or heavy duty bolted clamp, U band and V band clamp, Slim tension clip ring, wide pull ring etc. Not limited to clamps, we make pressed elbow, sliding damper, manual or pneumatic blast gate, suspension bracket, butterfly damper, Trousers, duct length, Y branches, Tee piece, reducer etc.



Circular 150mm Air Duct Clamp Galvanized Quick Release Lever For Dust Collection 3



Contact us for details:



Please contact Lily zhang for details. I am working here from 8:00 am to 5:00 pm on Monday~Friday.

Circular 150mm Air Duct Clamp Galvanized Quick Release Lever For Dust Collection 4
