Black Air Duct Galvanised Clamps Rubber Lined For Hvac Systems

Black Air Duct Galvanised Clamps Rubber Lined For Hvac Systems
Black Air Duct Galvanised Clamps Rubber Lined For Hvac Systems Black Air Duct Galvanised Clamps Rubber Lined For Hvac Systems

Large Image :  Black Air Duct Galvanised Clamps Rubber Lined For Hvac Systems

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YPVBC150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2.8
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: Air Duct Clamp Black Rubber Lined Galvanized Pipe Clamp For Hvac Systems Usage: Duct / Pipe Connection
Materials: Carbon Steel Or Stainless Steel As Option Surface Treatment: Electro-galvanizing / Hot Dipping
Band Width: 25mm Or Customized Inside Diameter: 150mm
Lining: With Or Without Gasket Materials: TPE Or Rubber
Gasket Color: Red Or Black Application: Industrial Pipe Systems
Package: Carton Or Wooden Case Market: American Market, European Market, Oceania Market
Relative Product: Flange Ducting Unit Price: $1.5-$6.0 According To Sizes
High Light:

air duct galvanised clamps

,

black rubber lined galvanised clamps

,

hvac systems galvanized steel clamps

Air Duct Clamp Black Rubber Lined Galvanized Pipe Clamp For Hvac Systems



Clamp details:

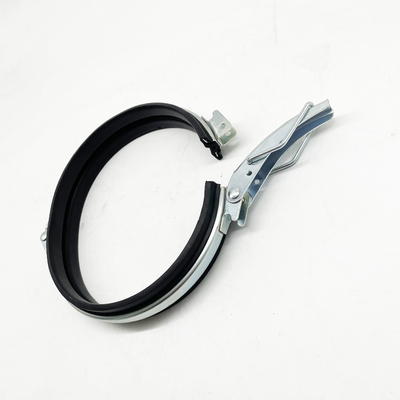

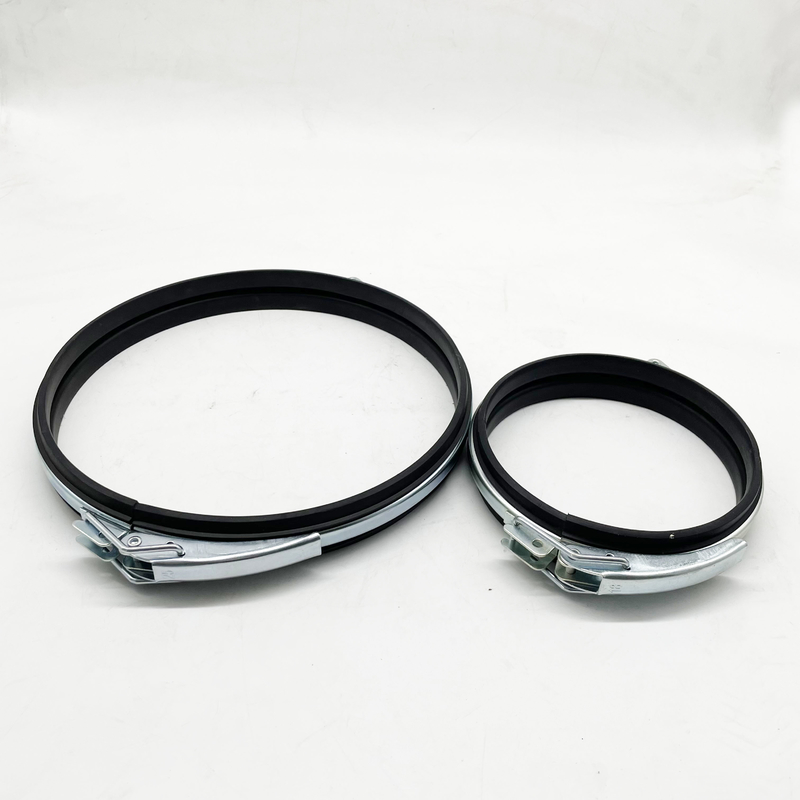

Rubber lined pipe clamp is made of carbon steel.The surface treatment is zinc plated or polished stainless, which have good rust-proof character. Standard sizes are in line with the pipe or duct specification on market, diameter from 75mm up to 600mm. Sealing gasket guarantee an tightness for dust and air as well as a better stability against heat, acids oil. Handle lock mechinism system fufill a quick connect and release to save working time.

Black Air Duct Galvanised Clamps Rubber Lined For Hvac Systems 0



Standard specification of quick release clamp:



The clamp diameter is from 75mm up to 600mm, wall tickness is 1mm~1.2mm according to sizes, the Inner gasket color can be red or black as requirments of client.





DIA. MM PRODUCT CODE Width MM Depth MM WALL THICKNESS MM
80 LMG80 28 8 1
100 LMG100 28 8 1
120 LMG120 28 8 1
125 LMG125 28 8 1
140 LMG140 28 8 1
150 LMG150 28 8 1
160 LMG160 28 8 1
180 LMG160 28 8 1
200 LMG200 28 8 1
225 LMG225 28 8 1
250 LMG225 28 8 1
275 LMG275 28 8 1
300 LMG300 28 8 1
315 LMG315 28 8 1.2
330 LMG330 28 8 1.2
350 LMG350 28 8 1.2
400 LMG400 28 8 1.2
450 LMG450 28 8 1.2
500 LMG500 28 8 1.2
550 LMG550 28 8 1.2
600 LMG600 28 8 1.2



Application of quick release clamp:



  • Dust collection ductwork
  • Industrial ducting
  • Oil mist & cutting fluid applications
  • High vacuum pipe fittings
  • Mild steel duct
  • Woodworking
  • Coofee roasting
  • Concrete & cement production
  • Grain processing
  • Polymer and plastic processing
  •
  •

Packaging and delivery time of clamps:



For muti-sizes, we choose wooden case to pack clamps. Smaller sizes in bigger sizes to save space.

For unitary size, we use carton box.

5pcs per bundle. Tidely put in crates layer by layer

Lead time: in 7 days if stocks available. otherwise against the order quantity.







Relative clamps from us:



We supply dozen designs of clamps for duct, pipe, tube.  Among those, lever clamp, slim pull ring, wide pull ring, adjustable bolted clamps are popular. Main Market: Europe, Usa, Oceania,  Southeast Asia.



Black Air Duct Galvanised Clamps Rubber Lined For Hvac Systems 1
