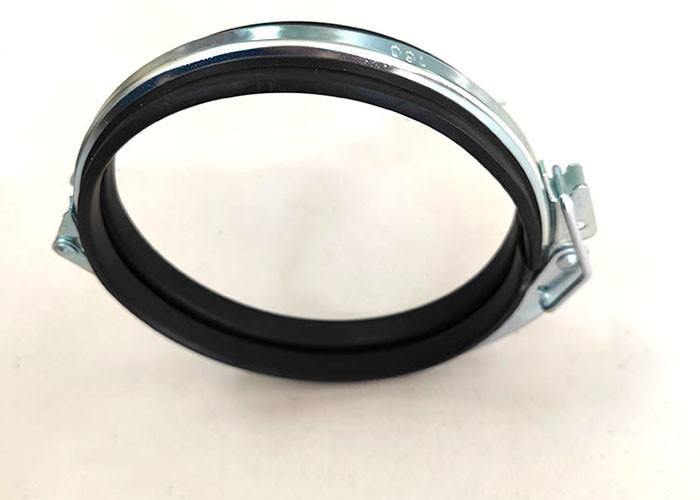

80mm Galvanized Steel Clamps Sheet Metal Pipe Quick Release With Handle

80mm Galvanized Steel Clamps Sheet Metal Pipe Quick Release With Handle
80mm Galvanized Steel Clamps Sheet Metal Pipe Quick Release With Handle

Large Image :  80mm Galvanized Steel Clamps Sheet Metal Pipe Quick Release With Handle

Product Details:
Place of Origin: Hebei , China
Brand Name: YP
Model Number: BGM
Payment & Shipping Terms:
Minimum Order Quantity: 20pc
Price: USD$ 6.10 /PC
Packaging Details: carton , pallet, wooden case
Delivery Time: 10-14 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH
Detailed Product Description
Name: Sheet Metal Pipe Quick Release Galvanized Steel Clamps With Handle Material: Mild Steel
Size: 80-600mm Application: Dust Collection , Filtration
Wall Thickness: 1.0mm Bandwidth: 28mm
Lock: Quick Release Pull Ring Rubber: TPE
High Light:

80mm galvanized steel clamps

,

quick release galvanized steel clamps

,

80mm galvanized pipe clamp

Sheet Metal Pipe Quick Release Galvanized Steel Clamps with Handle



Description:



The Quick Release Galvanized Steel Clamps with Handle are made of carbon steel with superior white galvanization on the surface, thickness is from 1.0mm to 1.2mm, bandwidth 28mm, customized width is acceptable too, the handle is designed with quick release lock system, make the connection easy and quickly, save more time.



Material Carbon steel with zinc plated or stainles steel
Lock  Quick release pull ring latch
Diameter 80mm to 600mm



This is a new design quick release latch air duct clamp developed by Yunpeng, also called the bolted duct clamp, usually it’s used for connecting 1.0mm/1.2mm modular ducts,like modular bends, straight pie, but also applied to 0.5-0.8mm HVAC system ventilation ducting, particle transport system, animal feed industry pipework system which has lipped pipe ends, another quick release lever adjustable duct clamp is also available.

There is a V groove at the clamping joint of the pipe clamp which makes the operation convenient and the clamping very tight.



Specification:





Galvanized Steel Connecting Pipe Clamp with Bolt and Pin for Dust Collection

Φ Diameter mm Product Code A mm H mm Thickness mm
80 BMG80 28 8 1.0
100 BMG100 28 8 1.0
120 BMG120 28 8 1.0
125 BMG125 28 8 1.0
140 BMG140 28 8 1.0
150 BMG150 28 8 1.0
160 BMG160 28 8 1.0
180 BMG180 28 8 1.0
200 BMG200 28 8 1.0
225 BMG225 28 8 1.0
250 BMG250 28 8 1.0
275 BMG275 28 8 1.0
300 BMG300 28 8 1.0
315 BMG315 28 8 1.2
350 BMG350 28 8 1.2
400 BMG400 28 8 1.2
450 BMG450 28 8 1.2
500 BMG500 28 8 1.2
550 BMG550 28 8 1.2
600 BMG600 28 8 1.2



Features:



1. Practically leak-proof

2. Durable, long time anti-rust

3. Easilly and quickly connection with pipe

4. Full Diameter, from 80mm to 600mm, and customized size welcome if bigger than 600mm.



80mm Galvanized Steel Clamps Sheet Metal Pipe Quick Release With Handle 0



Packing:



80mm Galvanized Steel Clamps Sheet Metal Pipe Quick Release With Handle 1



Other clamps:



80mm Galvanized Steel Clamps Sheet Metal Pipe Quick Release With Handle 2



Company:



We develop and manufacture modular ducting, circular ductwork in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. Our ducting system adopts the flanged/lip edge quick connection way, allowing rapid installation with no special tools needed. Products including pressed bends / segmented bends( R=1.5D, R=2D , material involving hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from 80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.



80mm Galvanized Steel Clamps Sheet Metal Pipe Quick Release With Handle 3

80mm Galvanized Steel Clamps Sheet Metal Pipe Quick Release With Handle 4
