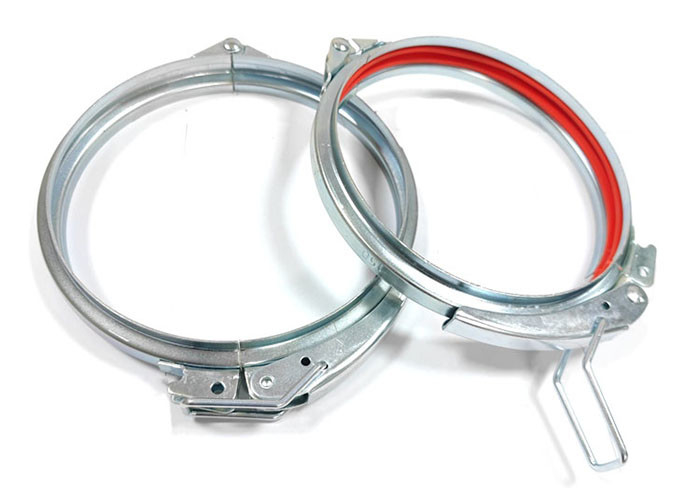

Connecting Pipe Galvanized Steel Clamps With Bolt And Pin For Dust Collection

Connecting Pipe Galvanized Steel Clamps With Bolt And Pin For Dust Collection

connecting pipe galvanized steel clamps

bolt and pin galvanized steel clamps

dust collection galvanised tube clamps

Place of Origin:

China

CONTACT US
Request A Quote
Product Details
Name:
Connecting Pipe Clamp
Material:
Mild Steel
Size:
80-600mm
Application:
Dust Collection , Filtration
Wall Thickness:
1.0mm
Bandwidth:
28mm
Lock:
Quick Release Pull Ring
Rubber:
TPE
Payment & Shipping Terms
Minimum Order Quantity
20pc
Price
USD$ 1.89--5..96 /PC
Packaging Details
carton , pallet, wooden case
Delivery Time
10-14 DAYS
Payment Terms
L/C, T/T, Western Union
Supply Ability
10000PCS/MONTH
Product Description

Galvanized Steel Connecting Pipe Clamp with Bolt and Pin for Dust Collection



Description:



Our "Galvanized Steel Connecting Pipe Clamp with Bolt and Pin" which are mild steel with galvanization or stainless steel clamps. Quick release duct clamps are used to secure metal duct products to industrial equipment dealing with dust, fume, exhaust, and abrasives collection and/or transfer and such ductwork system. Join duct and fittings with quick release duct clamps for faster connect and disassembly.

Galvanized steel has good corrosion resistance. 304 stainless steel is the most corrosion resistant.



Application:



The quick release connecting pipe clamp are mainly used for Dust extraction , HVAC system , particle transport,animal feed industry pipework system, etc.



Specification:





Galvanized Steel Connecting Pipe Clamp with Bolt and Pin for Dust Collection

Φ Diameter mm Product Code A mm H mm Thickness mm
80 BMG80 28 8 1.0
100 BMG100 28 8 1.0
120 BMG120 28 8 1.0
125 BMG125 28 8 1.0
140 BMG140 28 8 1.0
150 BMG150 28 8 1.0
160 BMG160 28 8 1.0
180 BMG180 28 8 1.0
200 BMG200 28 8 1.0
225 BMG225 28 8 1.0
250 BMG250 28 8 1.0
275 BMG275 28 8 1.0
300 BMG300 28 8 1.0
315 BMG315 28 8 1.2
350 BMG350 28 8 1.2
400 BMG400 28 8 1.2
450 BMG450 28 8 1.2
500 BMG500 28 8 1.2
550 BMG550 28 8 1.2
600 BMG600 28 8 1.2



Features:



1. Practically leak-proof

2. Durable, long time anti-rust

3. Easilly and quickly connection with pipe

4. Full Diameter, from 80mm to 600mm, and customized size welcome if bigger than 600mm.



Connecting Pipe Galvanized Steel Clamps With Bolt And Pin For Dust Collection 0

Company:



We develop and manufacture modular ducting, circular ductwork in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. Our ducting system adopts the flanged/lip edge quick connection way, allowing rapid installation with no special tools needed. Products including pressed bends / segmented bends( R=1.5D, R=2D , material involving hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from 80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.



Connecting Pipe Galvanized Steel Clamps With Bolt And Pin For Dust Collection 1

Connecting Pipe Galvanized Steel Clamps With Bolt And Pin For Dust Collection 2
