Product Details:
|
| Name: | Pipe Clamp | Material: | Carbon Steel |
|---|---|---|---|
| Lock: | Quick Release | Surface: | Galvanised |
| Feature: | Quick , Secure Connection | Thickness: | 1.0mm |
| Application: | Dust Collection , Dust Extraction | Usage: | Ducting System Connection |
| High Light: | adjustable 2 inch galvanized pipe clamps,slim 2 inch galvanized pipe clamps,connection tube 2 galvanized steel clamps |
||

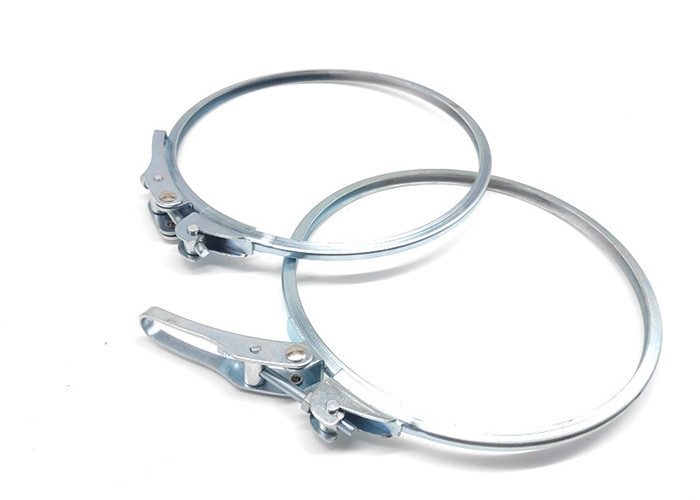

Galvanized Adjustable Slim Round Ring Pipe Connection Tube Clamp
We are experienced in producing a variety of pipe clamps, like quick connect G clamp, HVAC system adjustable quick clamps, galva. heavy duty duct clamp, v profile duct clamp, U band groove clamp, duct clamp for rolled edge ducting,split clamp, Germany heavy clamp,clip band, band clamp, overlap duct clamp, auto exhaust clamp, wrap duct clamp, etc. Our popular market like Australia, New Zealand,Poland, UK, Germany, Sweden, Holland, Canada,France, Switzerland, Spain,Hungary, Italy, South Africa, Vietnam, Malaysia and so on.
Product Introduction:
The quick-lock clamping-ring fulfils the same requirements as the clamping-ring two piece. This clamping-ring can be opened and closed easily and without any additional tool.It is used for connecting tubes of 1, 2 or 3 mm thickness with only one type of clamping-ring. For each thickness a fitting seal ring is required. Sealing rings guarantee an increased tightness for dust and air as well as a better stability against heat, certain acids, oil and fat.
The sealing ring ist mounted on one end of the flanged tube. This connection could be opened and closed without the necessity to mount a new seal ring.Because of a modification we were able to improve using and mounting of this type of clamping-ring.
Product Specification:
| Product Name | Slim steel ring clamps |
| Diameter | 80mm - 600mm |
| Material | Carbon Steel |
| ODM OEM | Accepted , customized size acceptable |
| Package | Carton , Wooden Case |
Product details:
Production Packing and Delivery time :
Cartons / Wooden Cases
Delivery time: 7days if have stock, 25-35 Days as per order qty.
We produce various clamps
About Company:
Yunpeng is engaged in the ducting components industry for more than 15 years, provides, but not limited to, superior galvanized/stainless steel ductwork, but also a variety of ventilation fittings for Circular / Spiral HVAC system ventilation duct fittings,like the pressed bends,reducers,collar saddles, press saddles,Tees,corners,clamps, on both half finished or finished versions.
We export our round dust collection fittings all round the world, popular countries like Australia, New Zealand,Poland, UK, Germany, Sweden, Holland, Canada,France, Switzerland, Spain,Hungary, Italy, South Africa, Vietnam, Malaysia and so on.
