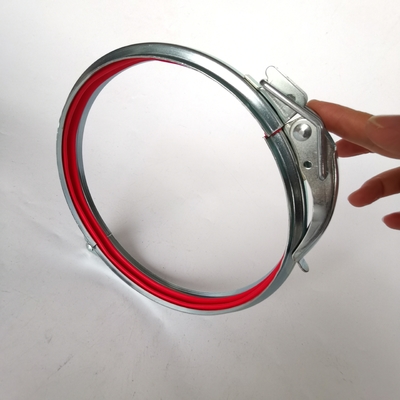

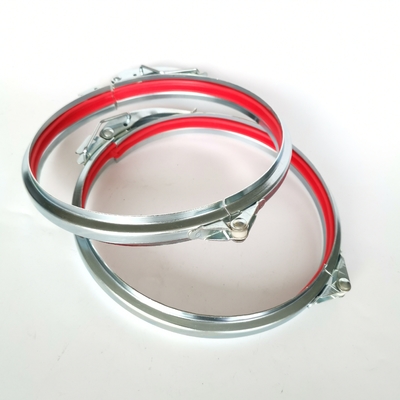

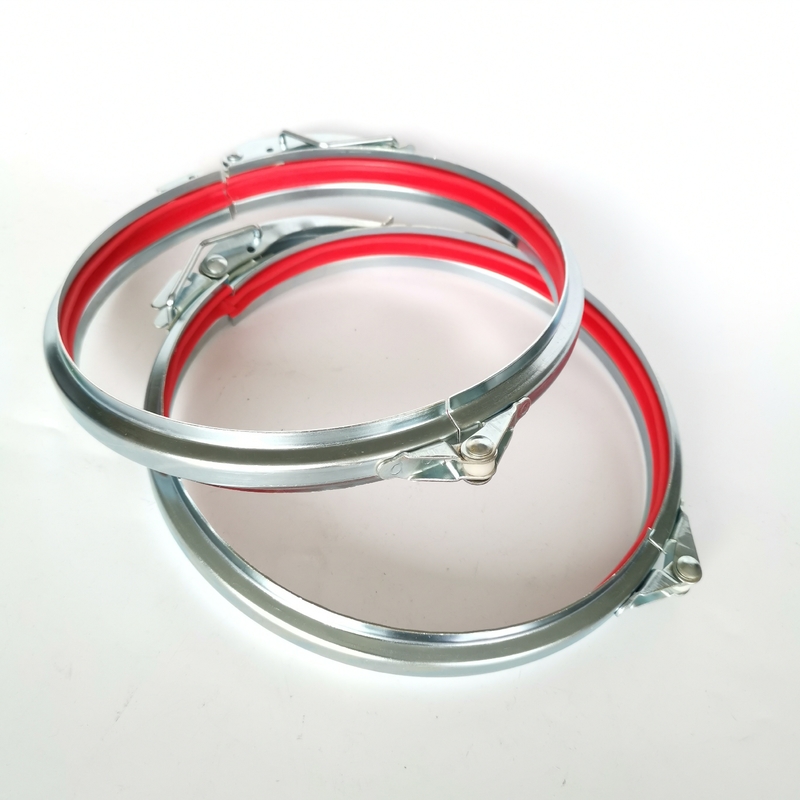

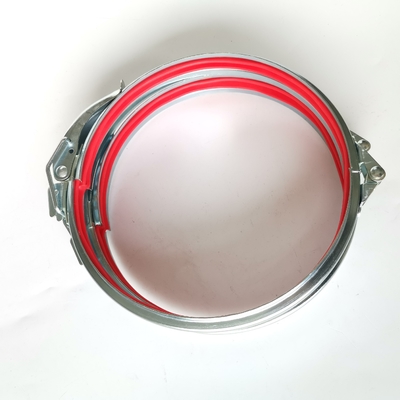

Dust Collector Ducting Galvanized Steel Clamps 10" Quick Fit

Dust Collector Ducting Galvanized Steel Clamps 10" Quick Fit
Dust Collector Ducting Galvanized Steel Clamps 10" Quick Fit Dust Collector Ducting Galvanized Steel Clamps 10" Quick Fit Dust Collector Ducting Galvanized Steel Clamps 10" Quick Fit

Large Image :  Dust Collector Ducting Galvanized Steel Clamps 10" Quick Fit

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YPVBC250
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3.5
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: 10" Dust Collector Ducting Clamp Quick-Fit Ductwork Clamp Ring With Gasket In Dust Collection Project Usage: Quick-fit Ducting Connection Clamp
Materials: Carbon Steel / Mild Steel / Stainless Steel Surface Treatment: Electro-galvanizing / Hot Dipping
Band Width: 25mm Or Customized Inside Diameter: 254mm / 10 Inch
Lining: Foam Seal Or TPE Gasket Linner Color: Black Or Red Color
Application: Industrial Pipe System Like Dust / Mist Collection, Fume Extraction, Particle Conveying Package: Carton Or Wooden Case
Market: American Market, European Market, Oceania Market Relative Product: Flange Ducting Like Bend, Sliding Damper, Blast Gate, Duct Length
High Light:

10" galvanized steel clamps

,

quick fit galvanized steel clamps

,

10" galvanized hose clamps

10" Dust Collector Ducting Clamp Quick-Fit Ductwork Clamp Ring With Gasket In Dust Collection Project



  • Clamp-together ducting were used in a wide variety of industries, from cement production to food and pharmaceutical manufacturing, in facilities of all sizes – from large manufacturing plants to small labs to one-person woodworking shops, almost anywhere de-dusting is required. The quick connect clamp in conjunction with the rolled ends or straight ends on components allow quick and easy installation or disassembly.
  • The gasket offer an unbeatable solution for oil mist and cutting fluid application as well as all other general purpose dust extraction duties. In addition to welded seams, bends, branches, reducers and all other components that have either a spot welded or full welded.
  • The duct clamp is made of mild steel or carbon steel with zinc plated,  so the anticorrosion is very high.
  • Main market: USA, Sweden, Norway, Poland, Germany, UK, Australia, New zealand, etc.



Specification of quick-fit ductwork clamp:



ɸDiameter inch Product code  A mm H mm  Thickness mm
3 BMG80 28 8 1
4 BMG100 28 8 1
5 BMG125 28 8 1
6 BMG150 28 8 1
8 BMG200 28 8 1
10 BMG250 28 8 1
12 BMG300 28 8 1
14 BMG350 28 8 1
16 BMG400 28 8 1
18 BMG450 28 8 1
20 BMG500 28 8 1
22 BMG550 28 8 1
24 BMG600 28 8 1


Feature of quick-fit ductwork clamp:



  • The lever latches create a fast lock and disassembly and reduces installation time to almost half that of conventional methods of ducting.
  • The gasket of Foam or rubber supply connection sealed. Black or red color can be supplied.
  • Galvanized pipe clamp are made of carbon steel or mild steel with higher quality galvanizing which is rust-proof under bad circumstance.
  • It was widely applied in industrial facotry for dust collection / fume extraction system pipe fittings. adjustable pipe clamp features a liner / gasket in clamp band, which supplies a better sealing for ducting.  It provides optimal protection for pipe applications.



Application of quick-fit ductwork clamp:



Dust collection ductwork

Industrial ducting

Oil mist & cutting fluid applications

High vacuum pipe fittings

Mild steel duct

Woodworking

Coofee roasting

Concrete & cement production

Grain processing

Polymer and plastic processing

Ducting for metalworking

 Collection Ductwork



  • Dust Removal, some factories produce a lot of dust in the workshop,which requires special dust removal devices, where the wind flow is large and the modular pipe system can be used. Rapid lock clamp plays the important role in installation.

  • Bulk material handing, some of the factory production process,the need to transport loose particles, especially the small proportion of such foam plastic grain using modular piping system, lever clamp is low cost, good effect, in addition, it is more convenient to maintain and save working time.

  • Except the usage of pipes and ducts, clamps are widely applied in vehicles, ships, diesel engine. gasoline engine, machine tools, fire protection etc. All kinds of mechanical equipment, chemical equipment, ordianary ruber hose,n ylon plastic hose, fabric hose, outlet connetion fastening and sealing



Packaging and delivery time:



For muti-sizes, we choose wooden case to pack clamps. Smaller sizes in bigger sizes to save space.

For unitary size, we use carton box.

5pcs per bundle. Tidely put in crates layer by layer

Lead time: in 7 days if stocks available. otherwise against the order quantity.



Dust Collector Ducting Galvanized Steel Clamps 10" Quick Fit 0



Relative products from us:



Pressed bend at 30-90 degree, sliding damper, manual or pneumatic blast gate, suspension bracket, butterfly damper,wide pull ring, slim pull ring, duct length, Y branches, Tee piece, reducer etc.
