Round Duct Quick Lock Galvanized Steel Clamps Ring Circular Quick Fit Dia 125 Mm

Round Duct Quick Lock Clamp Ring Circular Quick Fit Pipe Clamp With Quick Release Handle Dia. 125 MM

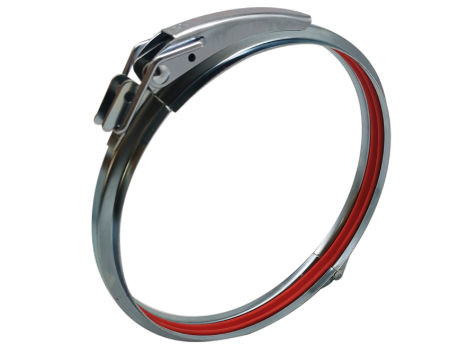

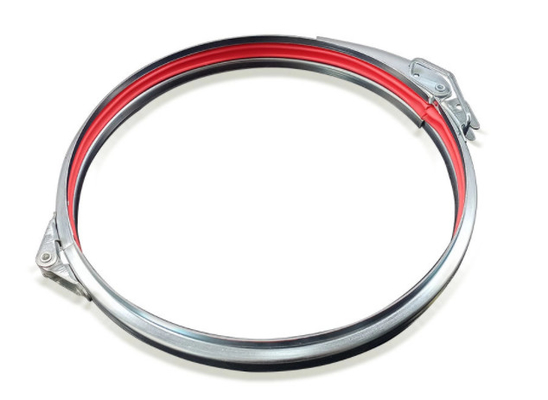

• The quick lock clamp ring can achieve speed Install and disassembly of flange ducting. Quick Release Pipe Clamp With Handle and Inner Rubber Seal can quickly connect the ducts and pipes by handle lock mechanism. Just need put the components inside of clamp and push the handle, the components will be connected.
• The Quick Release Pipe Clamp With Inner Rubber Seal have good sealing for duct and pipe.
• The Material of Quick Release Pipe Clamp is stainless steel or carbon steel with zinc plated,  so the anticorrosion is very high.
• Metric Size:75mm-600mm   Inch size: 3"-24"

• Materials choice	Carbon steel or stainless steel 304 as optional
  Wall Thickness	1mm for smaller diameter, 1.2mm for bigger ones.
  Metric Diameter size	80mm~600mm
  Inch sizes	3 inch- 24 inch
  Usage	Duct connection, pipe connection, tube connection, drum connection, hardware connection
  Feature	Quick connect and release, anti-rust, long-life
  Main markets	Sweden, Norway, Poland, Germany, UK, Australia, New zealand, USA etc.
  Application	Industrial pipe system, HVAC system, dust collection system, particle conveying system etc.

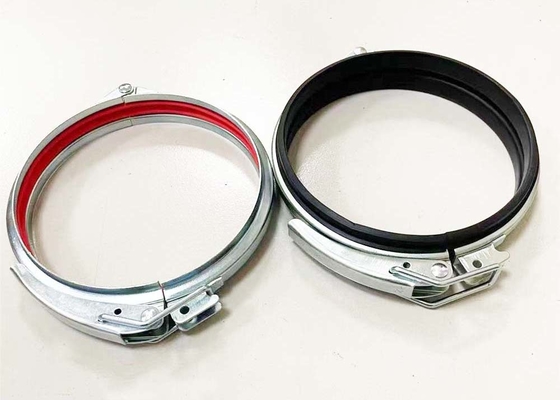

• The clamp diameter is from 75mm up to 600mm, wall tickness is 1mm~1.2mm according to sizes, the Inner gasket color can be red or black as requirments of client. Customized design and size are available.

Feature of quick release clamp:

The quick release handle mechanism creates a fast lock and disassembly and reduces installation time to almost half that of conventional methods of ducting.

The gasket of TEP or rubber supply connection sealed. Black or red color can be supplied.

Galvanized pipe clamp are made of carbon steel with higher quality galvanizing which is rust-proof under bad circumstance.

It was widely applied in industrial facotry for dust collection / fume extraction system pipe fittings. adjustable pipe clamp features a liner / gasket in clamp band, which supplies a better sealing for ducting.  It provides optimal protection for pipe applications.

Application of quick release clamp:

• Dust Removal, some factories produce a lot of dust in the workshop,which requires special dust removal devices, where the wind flow is large and the modular pipe system can be used. Rapid lock clamp plays the important role in installation.

​

• Bulk material handing, some of the factory production process,the need to transport loose particles, especially the small proportion of such foam plastic grain using modular piping system, lever clamp is low cost, good effect, in addition, it is more convenient to maintain and save working time.

​

• Except the usage of pipes and ducts, clamps are widely applied in vehicles, ships, diesel engine. gasoline engine, machine tools, fire protection etc. All kinds of mechanical equipment, chemical equipment, ordianary ruber hose,n ylon plastic hose, fabric hose, outlet connetion fastening and sealing

Packaging and delivery time:

For muti-sizes, we choose wooden case to pack clamps. Smaller sizes in bigger sizes to save space.

For unitary size, we use carton box.

5pcs per bundle. Tidely put in crates layer by layer

Lead time: in 7 days if stocks available. otherwise against the order quantity.

Relative products from us:

Pressed bend at 30-90 degree, sliding damper, manual or pneumatic blast gate, suspension bracket, butterfly damper,wide pull ring, slim pull ring, duct length, Y branches, Tee piece, reducer etc.
