Customized Steel 160mm Galvanized Pipe Clamp Quick Release With Handle Mechanical Lock

Customized Steel 160mm Galvanized Pipe Clamp Quick Release With Handle Mechanical Lock
Customized Steel 160mm Galvanized Pipe Clamp Quick Release With Handle Mechanical Lock Customized Steel 160mm Galvanized Pipe Clamp Quick Release With Handle Mechanical Lock Customized Steel 160mm Galvanized Pipe Clamp Quick Release With Handle Mechanical Lock

Large Image :  Customized Steel 160mm Galvanized Pipe Clamp Quick Release With Handle Mechanical Lock

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YPVBC160
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2.65
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: Customized Steel Clamp Quick Release Clamps With Handle Mechanical Lock Usage: Connect Clamp
Materials: Carbon Steel Or Stainless Steel As Option Surface Treatment: Electro-galvanizing / Hot Dipping / Polished / Brushed
Band Width: 25mm Or Customized Inside Diameter: 160mm / Customized Diameter
Linning: With Or Without Gasket Materials: TPE Or Rubber
Linner Color: Red Or Black Application: Industrial Pipe Sysetem
Package: Carton Or Wooden Case Market: American Market, European Market, Oceania Market
Relative Product: Flange Ducting Unit Price: $1.5-$6.0 According To Sizes
High Light:

160mm galvanized pipe clamp

,

handle mechanical lock galvanized pipe clamp

,

160mm galvanized steel clamps

Customized Steel Clamp Quick Release Clamps With Handle Mechanical lock

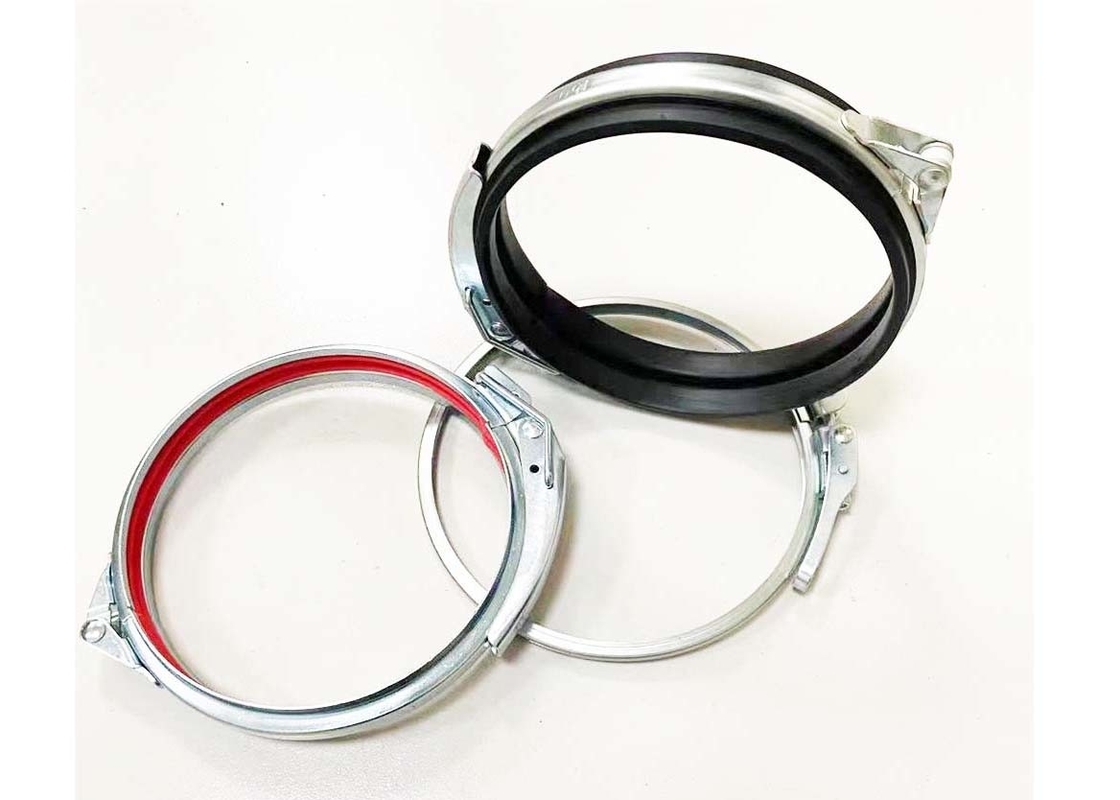

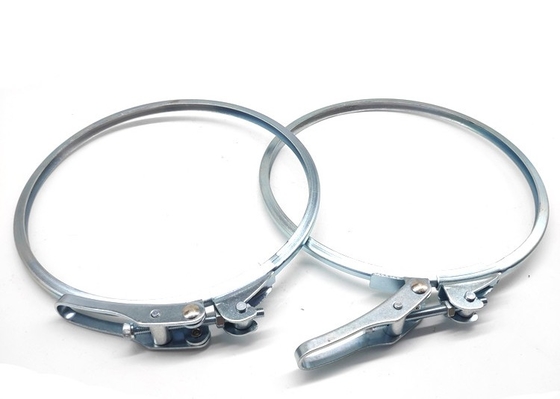

The customized steel clamp made of carbon steel or galvanized steel. The band is formed by machine, and assembled stamped mechanical lock handle and TEP gasket (optional). The surface treatment is zinc plated or polished stainless, which have good rust-proof character. Standard sizes are in line with the pipe or duct specification on market, diameter from 75mm up to 600mm. Customized sizes are available according to client's usage.



Materials choice Carbon steel or stainless steel 304 as optional
Wall Thickness 1mm for smaller diameter, 1.2mm for bigger ones.
Metric Diameter size 80mm~600mm
Inch sizes 3 inch- 24 inch
Usage Duct connection, pipe connection, tube connection, drum connection, hardware connection
Feature Quick connect and release, anti-rust, long-life
Main markets Sweden, Norway, Poland, Germany, UK, Australia, New zealand, USA etc.
Application Industrial pipe system, HVAC system, dust collection system, particle conveying system etc.



Feature of quick release clamp:



The quick release handle mechanism creates a fast lock and disassembly and reduces installation time to almost half that of conventional methods of ducting. The gasket of TEP or rubber supply connection sealed. Black or red color can be supplied. Galvanized pipe clamp are made of carbon steel with higher quality galvanizing which is rust-proof under bad circumstance. It was widely applied in industrial facotry for dust collection / fume extraction system pipe fittings. adjustable pipe clamp features a liner / gasket in clamp band, which supplies a better sealing for ducting.  It provides optimal protection for pipe applications.



Customized Steel 160mm Galvanized Pipe Clamp Quick Release With Handle Mechanical Lock 0



Application of quick release clamp:



  • Dust Removal, some factories produce a lot of dust in the workshop,which requires special dust removal devices, where the wind flow is large and the modular pipe system can be used. Rapid lock clamp plays the important role in installation.

  • Bulk material handing, some of the factory production process,the need to transport loose particles, especially the small proportion of such foam plastic grain using modular piping system, lever clamp is low cost, good effect, in addition, it is more convenient to maintain and save working time.

  • Except the usage of pipes and ducts, clamps are widely applied in vehicles, ships, diesel engine. gasoline engine, machine tools, fire protection etc. All kinds of mechanical equipment, chemical equipment, ordianary ruber hose,n ylon plastic hose, fabric hose, outlet connetion fastening and sealing



Standard specification of quick release clamp:



The clamp diameter is from 75mm up to 600mm, wall tickness is 1mm~1.2mm according to sizes, the Inner gasket color can be red or black as requirments of client.





DIA. MM PRODUCT CODE Width MM Depth MM WALL THICKNESS MM
80 LMG80 28 8 1
100 LMG100 28 8 1
120 LMG120 28 8 1
125 LMG125 28 8 1
140 LMG140 28 8 1
150 LMG150 28 8 1
160 LMG160 28 8 1
180 LMG160 28 8 1
200 LMG200 28 8 1
225 LMG225 28 8 1
250 LMG225 28 8 1
275 LMG275 28 8 1
300 LMG300 28 8 1
315 LMG315 28 8 1.2
330 LMG330 28 8 1.2
350 LMG350 28 8 1.2
400 LMG400 28 8 1.2
450 LMG450 28 8 1.2
500 LMG500 28 8 1.2
550 LMG550 28 8 1.2
600 LMG600 28 8 1.2


Customized sizes and design are welcome



Packaging and delivery time:

For muti-sizes, we choose wooden case to pack clamps. Smaller sizes in bigger sizes to save space.

For unitary size, we use carton box.

5pcs per bundle. Tidely put in crates layer by layer

Lead time: in 7 days if stocks available. otherwise against the order quantity.

Customized Steel 160mm Galvanized Pipe Clamp Quick Release With Handle Mechanical Lock 1



Relative products from us:



Pressed bend at 30-90 degree, sliding damper, manual or pneumatic blast gate, suspension bracket, butterfly damper,wide pull ring, slim pull ring, duct length, Y branches, Tee piece, reducer etc.

Customized Steel 160mm Galvanized Pipe Clamp Quick Release With Handle Mechanical Lock 2
