Product Details:
|
| Product Name: | Dust Extraction Duct Fittings Connection Clamps 150mm Adjustable Lever Clamp With Gasket | Usage: | Pipe Connection / Duct Connection / Tube Connection |
|---|---|---|---|
| Materials: | Carbon Steel | Surface Treatment: | Electro-galvanizing |
| Band Width: | 25mm | Inside Diameter: | 150mm / 6" |
| Available Sizes: | 80mm-600mm / 3"-24" | Gasket Materials: | TPE Or Rubber |
| Linner Color: | Red Or Black | Application: | Fume Extraction / Dust Collection / Air Filtration / Pneumatic Conveying |
| Package: | Carton Or Wooden Case | Market: | American Market, European Market, Oceania Market |
| Relative Product: | Flange Duct Length/ Flange Bend / Sliding Damper / Blast Gate / Hanging Bracket Etc. | Unit Price: | $1.5-$6.0 According To Sizes |
| High Light: | galvanized steel clamps 150mm,adjustable lever gasket galvanized steel clamps,150mm galvanized steel pipe clamp |
||

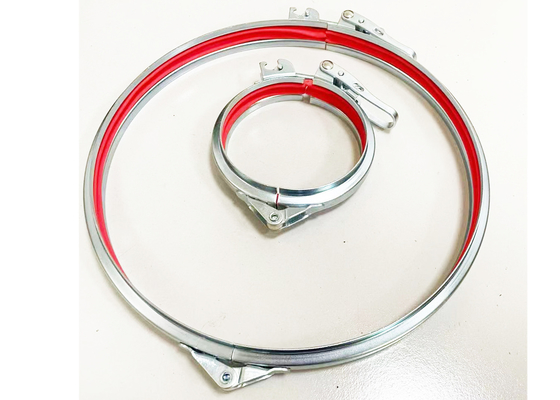

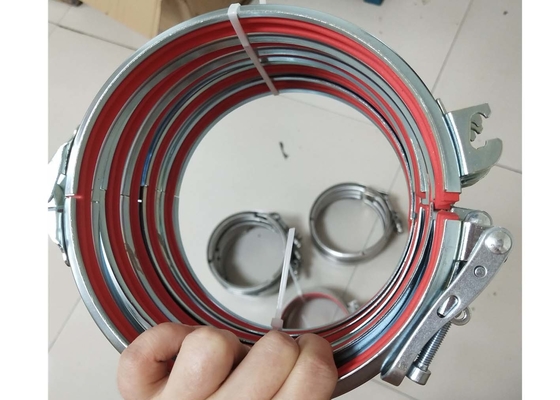

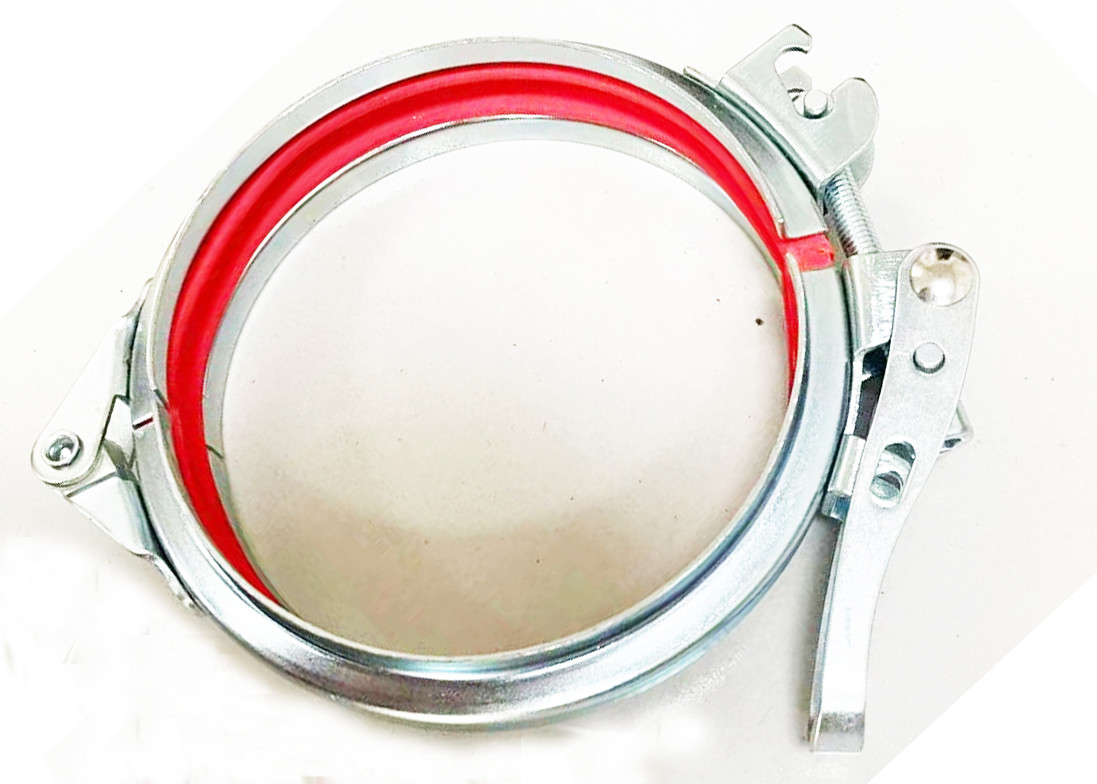

Dust Extraction Duct Fittings Connection Clamps 150mm Adjustable Lever Clamp With Gasket
Duct lever clamp is the most important component of Quick System ventilation installations. It is used to connect two components of ventilation pipe together. Quick release pipe clamp is made of carbon steel with higher quality galvanizing which is rust-proof under bad circumstance. It was widely applied in wood working shop for dust collection pipe fittings. Rapid lock pipe clamp features a liner / gasket in clamp band, which supplies a better sealing of ducting.
Feature of quick release pipe clamp:
The quick release handle mechanism creates a fast lock and disassembly and reduces installation time to almost half that of conventional methods of ducting. The gasket of TPE or rubber supply connection sealed. Black or red color can be supplied. Sizes are from 75mm up to 600mm. It provides optimal protection for pipe applications.
| Materials choice | Carbon steel or stailess steel 304 as optional |
| Thickness | 1mm for smaller diameter, 1.2mm for bigger ones. |
| Metric Diameter size | 80mm~600mm |
| Inch sizes | 3 inch- 24 inch |
| Feature | Quick connect and release, anti-rust, long-life |
| Main market | Sweden, Norway, Poland, Germany, UK, Australia, New zealand, USA etc. |
| Application | HVAC system, dust collection system, particle conveying system etc. |
Specification of quick release pipe clamp:
Application of adjustable lever clamp:
Modular ducting Industries: * Air Conditioning, * Fume Extraction, * Air Compressor Heat Recovery, * Fumes extraction, * Commercial Kitchen Cooking, * Heat Recovery
* Exhaust Flues, * Marine Applications, * Oil & Gas Industry, * Plating & Anodizing, * Education — Schools & Colleges
Materials Handling: * Agricultural, * Cement Processes, * Dust Control, * Fertilizer Manufacturing, * Grain Handling, * Foodstuff Manufacturing, * Manufacturing, * Plastics Manufacturing, * Pneumatic Conveying, * Pharmaceutical Production, * Paper, * Textiles, * Packaging, * Timber Industry, * Mining & Mineral Processing. etc.
Packing and delivery of adjustable lever clamp:
Package method: Carton box for small quantity. Wooden case for big quantity
Delivery time:in 3 days if stocks available, new production time depends on ordered quantity
Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)
Shipping terms: FOB, CIF, CNF DDP etc.
