100mm 4" Flange Duct Galvanized Steel Pipe Clamp With Quick Lock Handle Rubber Lined

100mm 4" Flange Duct Galvanized Steel Pipe Clamp With Quick Lock Handle Rubber Lined

100mm galvanized steel pipe clamp

rubber lined galvanized steel pipe clamp

100mm galvanized steel clamps

Place of Origin:

China

Certification:

ISO

CONTACT US
Request A Quote
Product Details
Product Name:
102mm 4" Flange Duct Clamp With Quick Lock Handle Rubber Lined Pipe Clamp For Dust Collection System
Usage:
Galvanized Pipe Clamp / GI Ducting Clamp
Materials:
Carbon Steel
Surface Treatment:
Electro-galvanizing
Band Width:
25mm
Inside Diameter:
100mm / 4"
Available Sizes:
80mm-600mm / 3"-24"
Gasket Materials:
TPE Or Rubber
Linner Color:
Red Or Black
Application:
Fume Extraction / Dust Collection / Air Filtration / Pneumatic Conveying
Package:
Carton Or Wooden Case
Market:
America Market, European Market, Oceania Market
Relative Product:
Flange Duct Length/ Flange Bend / Sliding Damper / Blast Gate / Hanging Bracket Etc.
Unit Price:
$1.5-$6.0 According To Sizes
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$2.2
Packaging Details
Film bag + carton
Delivery Time
5-8 days if stocks available
Payment Terms
L/C T/T WESTERN UNION
Supply Ability
10000 Pieces Per Month
Product Description

102mm 4" Flange Duct Clamp With Quick Lock Handle Rubber Lined Pipe Clamp For Dust Collection System



Rapid lock duct clamp with gasket are used for flange ducting in dust collection system. The quick release handle mechanism creates a fast lock and disassembly and reduces installation time to almost half that of conventional methods of ducting. The gasket of TPE or rubber supply connection sealed. Black or red color can be supplied. Sizes are from 75mm up to 600mm. It provides optimal protection for pipe applications.



Materials choice Carbon steel or stailess steel 304 as optional
Thickness 1mm for smaller diameter, 1.2mm for bigger ones.
Metric Diameter size 80mm~600mm
Inch sizes 3 inch- 24 inch
Feature Quick connect and release, anti-rust, long-life
Main market Sweden, Norway, Poland, Germany, UK, Australia, New zealand, USA etc.
Application HVAC system, dust collection system, particle conveying system etc.

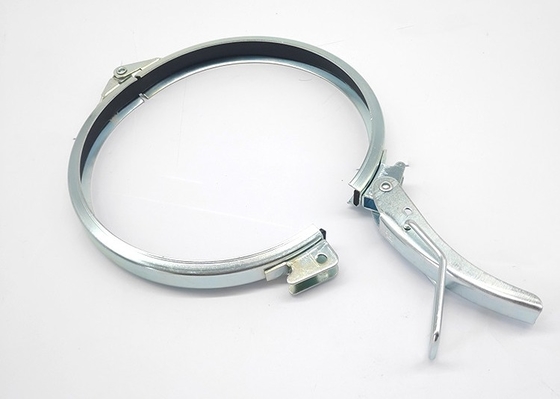

Feature of quick release clamp:

The lever machenism designs are for applications where joints need to be closed and released frequently and quickly. The red rubber ring plays the role of sealing.



Specification of quick release clamp:

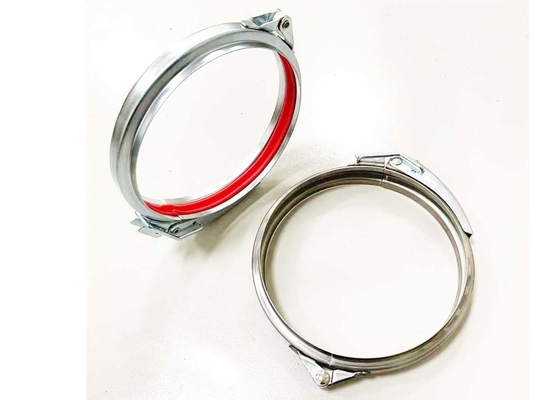

100mm 4" Flange Duct Galvanized Steel Pipe Clamp With Quick Lock Handle Rubber Lined 0



Relative clamps:



We produce different designs of clamps according to customers' usage, such as lever clamp, suspenstion clamps, heavy duty bolted clamp, adjustable clamp, v band clip, slim pull ring, wide pull ring etc. We are committed to all kinds of metal pipe connecting clamps. OEM / ODM service are available.

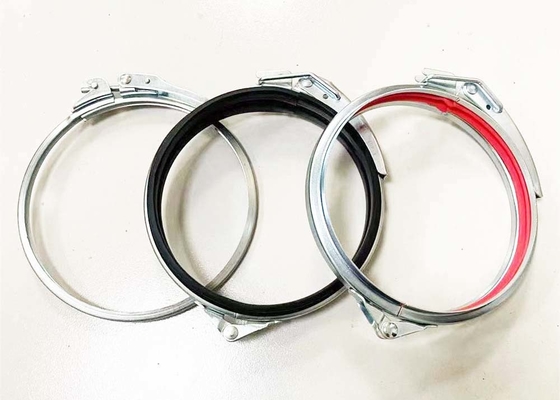

100mm 4" Flange Duct Galvanized Steel Pipe Clamp With Quick Lock Handle Rubber Lined 1



Packing and delivery:



Package method:Carton box for small quantity. Wooden case for big quantity

Delivery time:in 3 days if stocks available, new production time depends on ordered quantity

Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)

Shipping terms: FOB, CIF, CNF DDP etc.

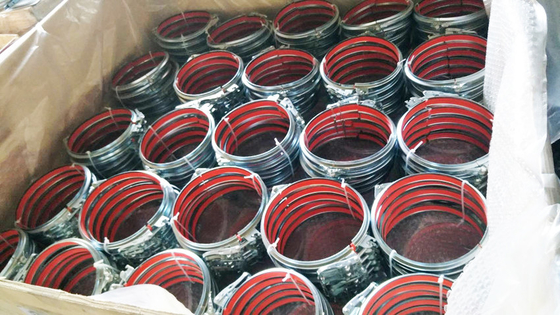

100mm 4" Flange Duct Galvanized Steel Pipe Clamp With Quick Lock Handle Rubber Lined 2



About us



As a leading manufacturer of metal products, we aim to supply the perfect products to customers. Today we are more specialized on the pipe fittings, especially duct clamps, pipe clamps, tube clamps and relative products like tube, elbow, tee, damper and so on. We are pleased to offer you one-stop service from design, manufacturing, technology solution, and market developing. We win good reputation worldwide with our principle that put customer’s satisfaction on top priority.

Modular ducting Industries:* Air Conditioning, * Fume Extraction, * Air Compressor Heat Recovery, * Fumes extraction, * Commercial Kitchen Cooking, * Heat Recovery, * Exhaust Flues, * Marine Applications, * Oil & Gas Industry, * Plating & Anodizing, * Education — Schools & Colleges

Materials Handling: * Agricultural, * Cement Processes, * Dust Control, * Fertilizer Manufacturing, * Grain Handling, * Foodstuff Manufacturing, * Manufacturing, * Plastics Manufacturing, * Pneumatic Conveying, * Pharmaceutical Production, * Paper, * Textiles, * Packaging, * Timber Industry, * Mining & Mineral Processing. etc.

100mm 4" Flange Duct Galvanized Steel Pipe Clamp With Quick Lock Handle Rubber Lined 3
