Product Details:
|
| Name: | Slim Galvanised Clip Duct Fittings Pull Ring | Width: | 10mm |
|---|---|---|---|
| Industry: | Dust Collection, Air Handling, Particle Transportation | Surface: | Galvanised |
| Material: | Carbon Steel (or Stainless Steel 304) | Diameter: | 80mm-600mm |
| Lock Mechanism: | Quick Release Handle Lock | Packing: | Carton Or Wooden Cases |
| Feature: | Air Tight , Quick Lock | Thickness: | 1.0mm 1.2mm |
| High Light: | 80mm quick connect clamp,particle conveying quick connect clamp,80mm quick connect pipe clamp |
||

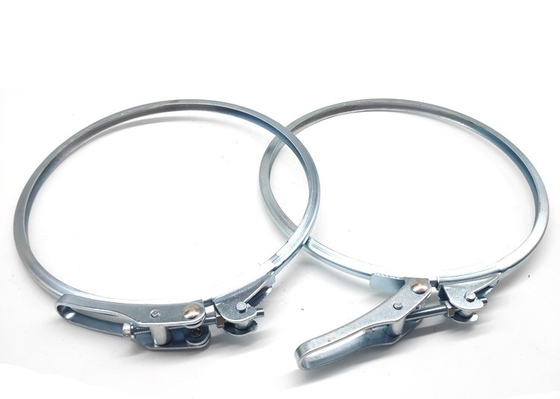

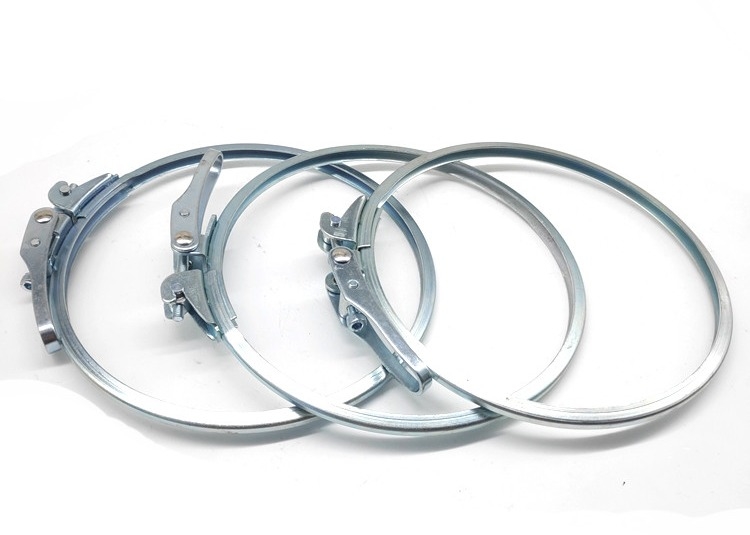

Hot dipped slim ring galvanized steel ducts hose clamp lever locking ring clamps
Product Description:
80mm-300mm for the diameters, ued for pipe & fittings connection, quick release handle lock.
The quick-lock clamping ring is designed as one piece or two pieces parts, which can be opened and closed easily and without any additional tool. It is used for connecting tubes of 1, 2 or 3 mm thickness, the sealing ring can be fixed at the an end of flanged tube, to ensure the tightness for dust and air as well as a better stability against heat, certain acids, oil and fat.
We are factory and supplied a series of duct & fittings for ventilation system, industry dust collection system and central heating system.
♦Ventilation system products : pressed bend, duct reducer, pressed collar saddle, tee piece and so on.
♦Dust collection system product : pressed bend, lever clamp, wild/slim pull rings, damper and so on
| Material | Carbon Steel |
| Surface | Galvanization |
| Diameter | DN80-DN600 |
Specification:
Our standard available sizes are from 80mm to 600mm , customized design and size requirement are welcome.

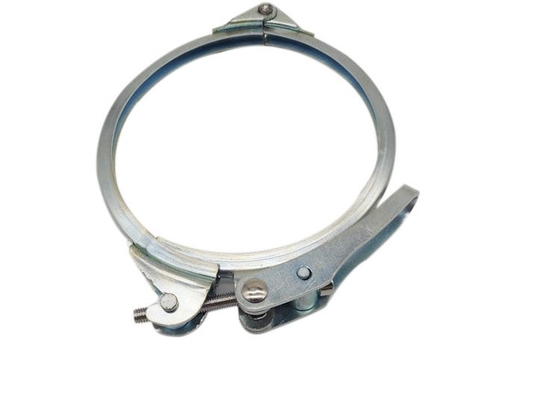

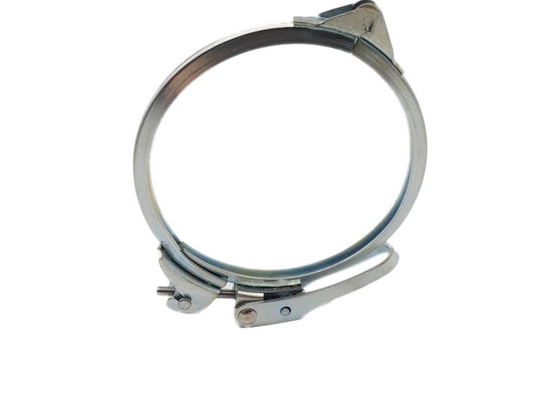

Our another two popular similar duct clamp are provided with adjustable bolt lever.
Application:
Quick lock duct clamp could be used for standard modular ducting for dust collection, dust extraction, air filtration and particle transport system.
And any other pipeline which needs the air tight requirement.
Packing of air duct clamp:
Cartons or wooden cases for mixed sizes.
Company:
We develop and manufacture modular ducting, circular ductwork in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. Our ducting system adopts the flanged/lip edge quick connection way, allowing rapid installation with no special tools needed. Products including pressed bends / segmented bends( R=1.5D, R=2D , material involving hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from 80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.
