Dust Collection Pipe 160mm Quick Release V Band Clamp Standard Duty

Dust Collection Pipe 160mm Quick Release V Band Clamp Standard Duty

160mm quick release v band clamp

dust quick release v band clamp

160mm v band clamp

Place of Origin:

China

Certification:

ISO

CONTACT US
Request A Quote
Product Details
Product Name:
160mm Dust Collection Pipe Clamp Standard Duty Modular Ducting Clamp Ring Quick Release Fast Lock
Usage:
GI Pipe Clamp / Duct Clamp / Tube Clamp
Materials:
Galvanized Steel Or Stainless Steel 304
Band Width:
25mm
ID:
160mm
Gasket:
TPE Or Rubber
Surface Finish:
Zinc Plated Or Polished
Package:
Carton Or Wooden Case
Application:
Fume Extraction / Dust Collection / Air Filtration / Pneumatic Conveying
Market:
USA. Europe, Australia, New Zealand Etc.
Diameter Scope:
80mm-600mm
Relative Product:
Duct Elbow / Sliding Damper / Blast Gate / Hanging Bracket Etc.
Unit Price:
2.65
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$2.65
Packaging Details
Film bag + carton
Delivery Time
5-8 days if stocks available
Payment Terms
L/C T/T WESTERN UNION
Supply Ability
10000 Pieces Per Month
Product Description

160mm Dust Collection Pipe Clamp Standard Duty Modular Ducting Clamp Ring Quick Release Fast Lock



Modular ducting clamp is equipped with the handle mechanism. It is specially designed for duct systems made from 1 and 1.2 mm steel plate. The clamps are made of zinc plated or stainless steel 304 materials, which are rust proof for bad circumstance. It features quick locking and release of duct fittings and save much working time. Each adjustable quick lock clamp includes a pin for securing the handle closed. In addition, the clamps have a rubber lining in the inner circle of the clamp. This rubber lining creates a seal when the clamp handle is closed, joining the two pipes (or pipe and elbow, blastgate, etc.) as one.



Key Specifications/ Special Features:



Product name

Modular ducting clamp for dust collection system



Diameter scope:

80-600mm



Usage:

Used for connect 0.7mm-1.2mm wall thick round duct, pipe, tube in stainless steel or galvanize steel



Material choice

Galvanized steel, carbon stell with zinc plated, stainless steel 304



Application

Low pressure or Medium pressure conveying system like Fume extraction, Materials handling, Dust collection, vaccum conveying



Main Market Europe, USA. Oceania, Southeast Asia etc.



Usage of modular ductwork clamp:



The use of quick lock and release clamping ring creates a sealed joint and reduces installation time to almost half that of conventional methods of ducting. It provide optimal protection for pipe applications. The lever machenism designs are for applications where joints need to be closed and released frequently and quickly. The red rubber ring plays the role of sealing.

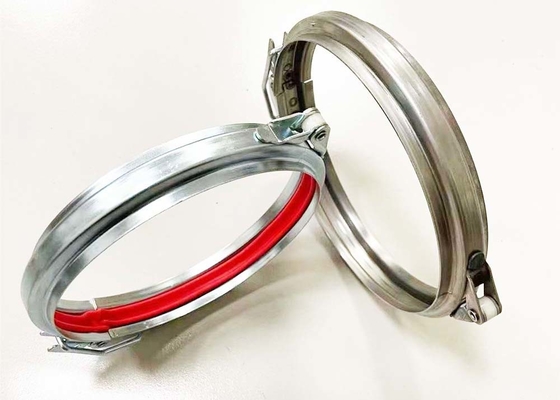

Dust Collection Pipe 160mm Quick Release V Band Clamp Standard Duty 0



Features of quick lock duct clamp with gasket:

  • Speed Install,The Used Duct Of Quick Release Pipe Clamp With Handle Inner Rubber Seal can quickly connect the ducts of all kinds by handle.You only need to push the handle which the ducts are locked.
  • Good Sealing,The Used Duct Of Quick Release Pipe Clamp With Handle Inner Rubber Seal have high sealing because innering rubber seal.
  • Strong Anticorrosion,Because the Material of Used Duct Of Quick Release Pipe Clamp With Handle Inner Rubber Seal is stainless steel,so the anticorrosion is very high.



Specification of duct clamp:



ΦD/mm A/mm H/mm Thickness/mm
80 28 8 1
100 28 8 1
120 28 8 1
125 28 8 1
140 28 8 1
150 28 8 1
160 28 8 1
180 28 8 1
200 28 8 1
225 28 8 1
250 28 8 1
275 28 8 1
300 28 8 1
315 28 8 1.2
350 28 8 1.2
400 28 8 1.2
450 28 8 1.2
500 28 8 1.2
550 28 8 1.2
600 28 8 1.2



We produce different designs of clamps in light duty, standard duty and heavy duty according to customers' usage. Our clamps includ lever clamp, adjustable clamp, hose clamp, bolted clamp, band clip, slim / wide tension clip, hanging bracket, saddle clamp, U type clamp etc. We are committed to all kinds of metal pipe connecting clamps.



Welcome your OEM inquiry.

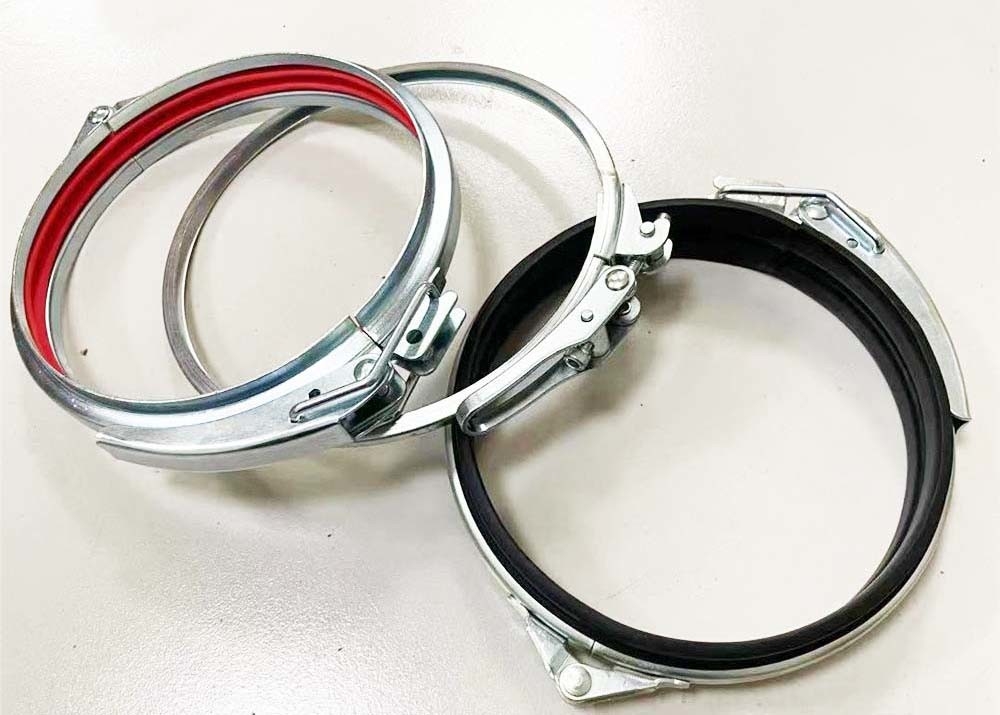

Dust Collection Pipe 160mm Quick Release V Band Clamp Standard Duty 1

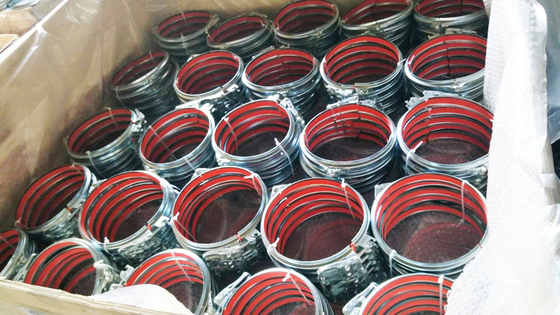

Packing and delivery of rapid lock pipe clamp:



Package method:Carton box for small quantity. Wooden case for big quantity

Delivery time:in 3 days if stocks available, new production time depends on ordered quantity

Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)

Shipping terms: FOB, CIF, CNF DDP etc.



Dust Collection Pipe 160mm Quick Release V Band Clamp Standard Duty 2



About us:



As a leading manufacturer of metal products, we aim to supply the perfect products to customers. Today we are more specialized on the pipe fittings, especially duct clamps, pipe clamps, tube clamps and relative products like tube, elbow, tee, damper and so on. We are pleased to offer you one-stop service from design, manufacturing, technology solution, and market developing. We win good reputation worldwide with our principle that put customer’s satisfaction on top priority.



Modular ducting Industries that use our ducting are:

* Air Conditioning, * Fume Extraction, * Air Compressor Heat Recovery, * Fumes extraction, * Commercial Kitchen Cooking, * Heat Recovery
* Exhaust Flues, * Marine Applications, * Oil & Gas Industry, * Plating & Anodizing, * Education — Schools & Colleges



Materials Handling

* Agricultural, * Cement Processes, * Dust Control, * Fertilizer Manufacturing, * Grain Handling, * Foodstuff Manufacturing, * Manufacturing, * Plastics Manufacturing, * Pneumatic Conveying, * Pharmaceutical Production, * Paper, * Textiles, * Packaging, * Timber Industry, * Mining & Mineral Processing. etc.



Dust Collection Pipe 160mm Quick Release V Band Clamp Standard Duty 3



Please contact Lily zhang for details. I am working here from 8:00 am to 5:00 pm on Monday~Friday.Dust Collection Pipe 160mm Quick Release V Band Clamp Standard Duty 4
