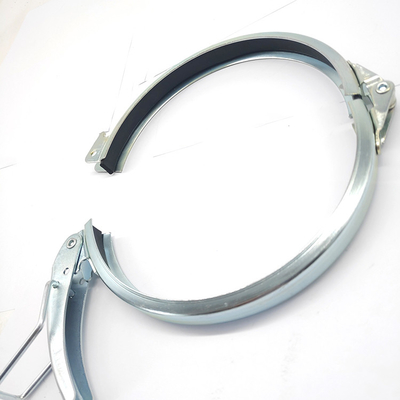

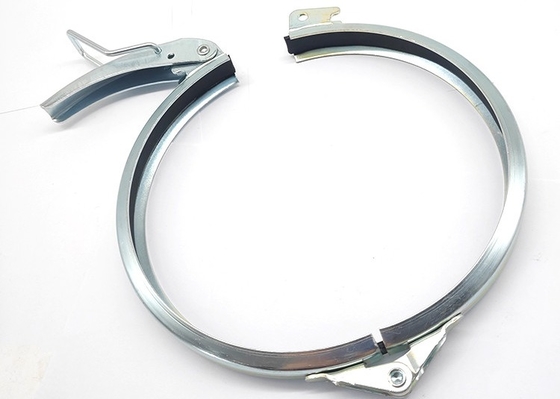

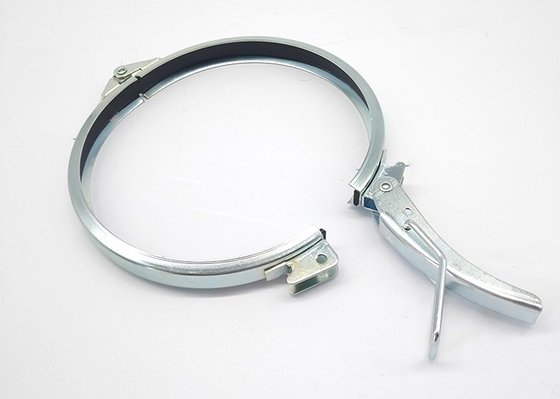

1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring

1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring
1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring 1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring 1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring

Large Image :  1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring

Product Details:
Place of Origin: Hebei , China
Brand Name: YP
Model Number: BMG80-BMG600
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD$ 1.5--8.99 /PC
Packaging Details: carton , wooden case
Delivery Time: 5-7days if stock, 20-25days for mass order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH
Detailed Product Description
Name: Galvanized Steel Lever Lock Ring Width: 28mm
Industry: Dust Collection, Air Handling, Particle Transportation Surface: Galvanised
Material: Carbon Steel (or Stainless Steel 304) Diameter: 80mm-600mm
Lock Mechanism: Quick Release Handle Lock Packing: Carton Or Wooden Cases
Feature: Air Tight , Quick Lock Thickness: 1.0mm 1.2mm
High Light:

1.0mm v band clamp

,

round v band clamp 4 inch

,

galvanized v band clamp 4 inch

1.0mm round duct galvanized steel lever lock ring



Product Description:



Material: Mild Steel or Stainless steel

Band: 28mm

Thickness: 1.0mm

Diameter: DN80-DN600



Round duct galvanized steel lever lock ring provides quick and easy connections for our quick ductwork. Quick-Fit Ducting is ideal for dust collection and process ventilation systems, saving time and money on installation, future relocations, and cleanouts. Clamps come standard with seals and bridge pin for locking clamp into closed position.

Ring Material: Carbon steel with superior galvanization or stainless steel 304

Pin: Galvanized supplied with galvanized bridge pin. SS supplied with SS bridge pin.

Gasket: Silicone, EPDM, TFE are optional seal materials for applications where temperature requires.



Specification:

Our standard available sizes are from 80mm(3")  to 600mm (24") , customized design and size requirement are welcome.



Galvanized steel quick lock air duct clamp for dust collection system



Φ Diameter mm Product Code A mm H mm Thickness mm
80 BMG80 28 8 1.0
100 BMG100 28 8 1.0
120 BMG120 28 8 1.0
125 BMG125 28 8 1.0
140 BMG140 28 8 1.0
150 BMG150 28 8 1.0
160 BMG160 28 8 1.0
180 BMG180 28 8 1.0
200 BMG200 28 8 1.0
225 BMG225 28 8 1.0
250 BMG250 28 8 1.0
275 BMG275 28 8 1.0
300 BMG300 28 8 1.0
315 BMG315 28 8 1.2
350 BMG350 28 8 1.2
400 BMG400 28 8 1.2
450 BMG450 28 8 1.2
500 BMG500 28 8 1.2
550 BMG550 28 8 1.2
600 BMG600 28 8 1.2



Our another popular similar duct clamp are provided with adjustable bolt lever.



1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring 0



Application:



Quick lock duct clamp could be used for standard modular ducting for dust collection, dust extraction, air filtration and particle transport system.

And any other pipeline which needs the air tight requirement.

1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring 1



Packing of air duct clamp:



Cartons or wooden cases for mixed sizes.



1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring 2

1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring 3

1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring 4

Company:



We develop and manufacture modular ducting, circular ductwork in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. Our ducting system adopts the flanged/lip edge quick connection way, allowing rapid installation with no special tools needed. Products including pressed bends / segmented bends( R=1.5D, R=2D , material involving hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from 80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.

1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring 5

1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring 6

1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring 7





Contact Becky for more information if you have requirement on this clamp:

1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring 8

1.0mm Round Duct V Band Clamp 4 Inch Galvanized Steel Lever Lock Ring 9
