150mm Dust Extraction System Heavy Duty Steel Pipe Clamps Galvanized Fittings

150mm Dust Extraction System Heavy Duty Steel Pipe Clamps Galvanized Fittings
150mm Dust Extraction System Heavy Duty Steel Pipe Clamps Galvanized Fittings 150mm Dust Extraction System Heavy Duty Steel Pipe Clamps Galvanized Fittings 150mm Dust Extraction System Heavy Duty Steel Pipe Clamps Galvanized Fittings 150mm Dust Extraction System Heavy Duty Steel Pipe Clamps Galvanized Fittings 150mm Dust Extraction System Heavy Duty Steel Pipe Clamps Galvanized Fittings

Large Image :  150mm Dust Extraction System Heavy Duty Steel Pipe Clamps Galvanized Fittings

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YPVBC150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2.5
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: 150mm Galvanized Duct Clamps With Gasket And Screw For Dust Extraction System Usage: Duct Clamp / Pipe Clamp / Tube Clamp
Materials: Galvanized Steel Or Stainless Steel 304 Band Width: 25mm
ID: 150mm / 6" Gasket: TPE Or Rubber
Surface Finish: Zinc Plated Or Polished Package: Carton Or Wooden Case
Application: Fume Extraction / Dust Collection / Air Filtration / Pneumatic Conveying Market: USA. Europe, Australia Etc.
Diameter Scope: 80mm-600mm Relative Product: Duct Elbow / Sliding Damper / Blast Gate / Hanging Bracket Etc.
Unit Price: $1.5-$6.0 According To Sizes
High Light:

150mm heavy duty steel pipe clamps

,

galvanized heavy duty steel pipe clamps

,

150mm galvanized pipe clamp fittings

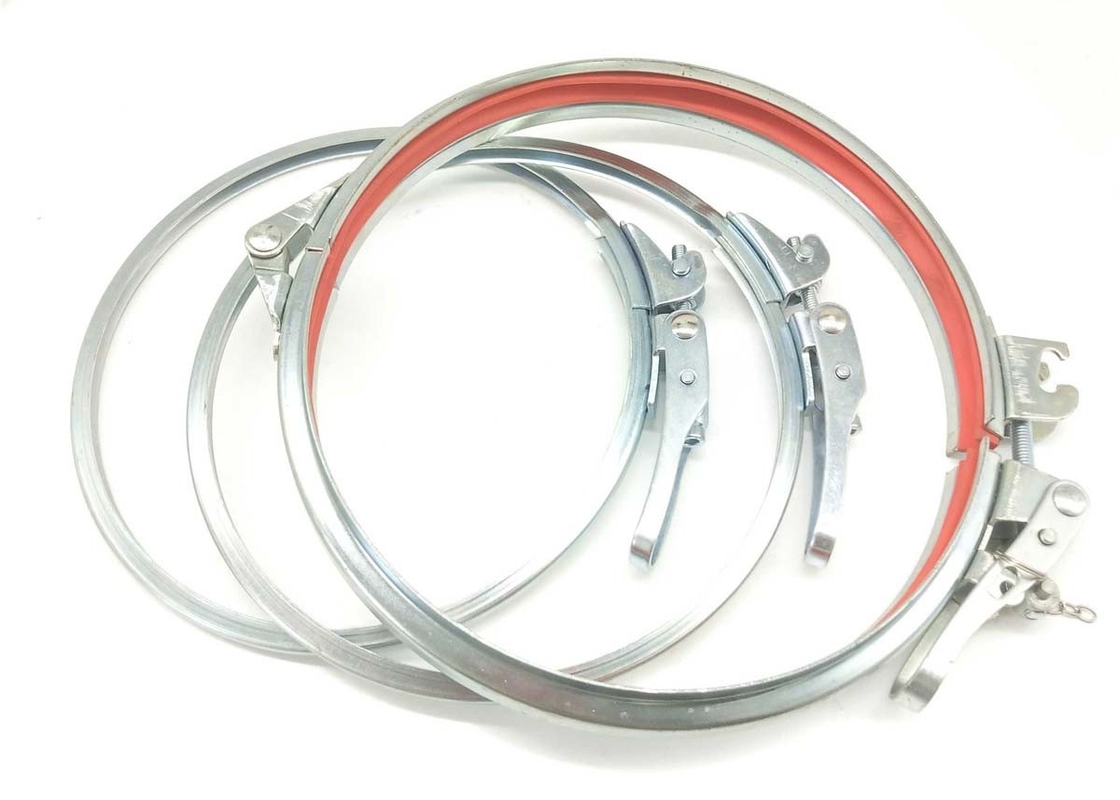

150mm Galvanized Duct Clamps With Gasket And Screw For Dust Extraction System

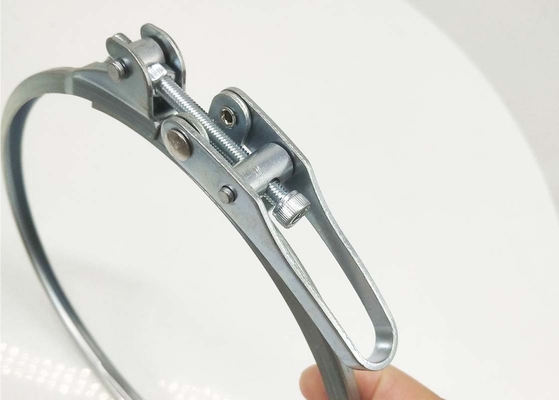

The use of quick release clamping ring creates a sealed joint and reduces installation time to almost half that of conventional methods of ducting. It provide optimal protection for pipe applications. The lever machenism designs are for applications where joints need to be closed and released frequently and quickly. The red rubber ring plays the role of sealing.



Features of quick lock duct clamp with gasket:

  • Speed Install,The Used Duct Of Quick Release Pipe Clamp With Handle Inner Rubber Seal can quickly connect the ducts of all kinds by handle.You only need to push the handle which the ducts are locked.
  • Good Sealing,The Used Duct Of Quick Release Pipe Clamp With Handle Inner Rubber Seal have high sealing because innering rubber seal.
  • Strong Anticorrosion,Because the Material of Used Duct Of Quick Release Pipe Clamp With Handle Inner Rubber Seal is stainless steel,so the anticorrosion is very high.



Specification of duct clamp:

Warranty
1 Year
After-sale Service
Return and Replacement
Application
Fume extraction, Materials handling, Dust collection, vaccum conveying
Design Style
Industrial
Place of Origin
Hebei
Brand Name
Yunpeng
Product name
Air duct galvanized flange pipe quick release duct pipe clamp with red seal rubber for dust collection system
Material
Carbon steel with galvanized or stainless steel 304
Function
Pipe clamp, duct clamp, Tube clamp
Feature
Quick lock and release. Save worktime. Easy Installtion
Shape
Round Shaped
OEM
Acceptable
Package
Carton or wooden case as request





Hot sizes of duct clamp:



ΦD/mm
A/mm
H/mm
Thickness/mm
80
28
8
1
100
28
8
1
120
28
8
1
125
28
8
1
140
28
8
1
150
28
8
1
160
28
8
1
180
28
8
1
200
28
8
1
225
28
8
1
250
28
8
1
275
28
8
1
300
28
8
1
315
28
8
1.2
350
28
8
1.2
400
28
8
1.2
450
28
8
1.2
500
28
8
1.2
550
28
8
1.2
600
28
8
1.2



We produce different designs of clamps according to customers' usage, such as lever clamp, heavy duty bolted clamp, adjustable clamp, v band clip etc. We are committed to all kinds of metal pipe connecting clamps. Welcome your OEM inquiry.



150mm Dust Extraction System Heavy Duty Steel Pipe Clamps Galvanized Fittings 0

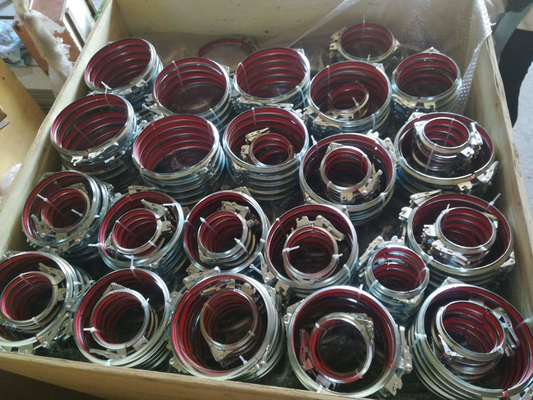

Packing and delivery of rapid lock pipe clamp:



Package method:Carton box for small quantity. Wooden case for big quantity

Delivery time:in 3 days if stocks available, new production time depends on ordered quantity

Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)

Shipping terms: FOB, CIF, CNF DDP etc.



150mm Dust Extraction System Heavy Duty Steel Pipe Clamps Galvanized Fittings 1



About us:



As a leading manufacturer of metal products, we aim to supply the perfect products to customers. Today we are more specialized on
the pipe fittings, especially duct clamps, pipe clamps, tube clamps and relative products like tube, elbow, tee, damper and so on.
We are pleased to offer you one-stop service from design, manufacturing, technology solution, and market developing. We win good
reputation worldwide with our principle that put customer’s satisfaction on top priority.



Modular ducting Industries that use our ducting are:



* Air Conditioning, * Fume Extraction, * Air Compressor Heat Recovery, * Fumes extraction, * Commercial Kitchen Cooking, * Heat Recovery
* Exhaust Flues, * Marine Applications, * Oil & Gas Industry, * Plating & Anodizing, * Education — Schools & Colleges



Materials Handling

* Agricultural, * Cement Processes, * Dust Control, * Fertilizer Manufacturing, * Grain Handling, * Foodstuff Manufacturing, * Manufacturing, * Plastics Manufacturing, * Pneumatic Conveying, * Pharmaceutical Production, * Paper, * Textiles, * Packaging, * Timber Industry, * Mining & Mineral Processing. etc.
