Product Details:
|
| Name: | Locking Ring Quick Release Pipe Clamp | Width: | 28mm |
|---|---|---|---|
| Industry: | Dust Collection, Air Handling, Particle Transportation | Surface: | Stainless Natural |
| Material: | Stainless Steel 304 Or Carbon Steel | Diameter: | 80mm-600mm |

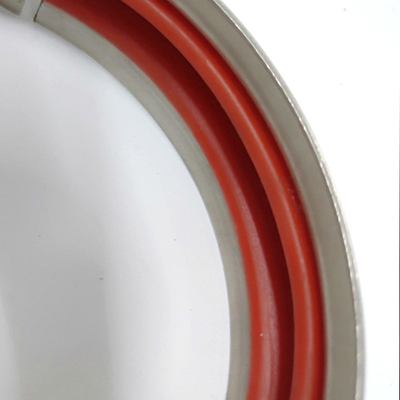

| Lock Mechanism: | Quick Release Handle Lock | Sealing Gasket: | TPE Or EPDM |
| Feature: | Air Tight , Quick Lock | Thickness: | 1.0mm 1.2mm |
| High Light: | 1mm thickness quick release pipe clamp,duct system quick release pipe clamp,ss304 pipe quick release clamp |
||

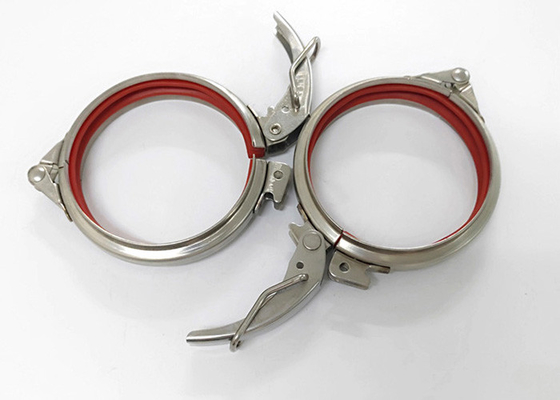

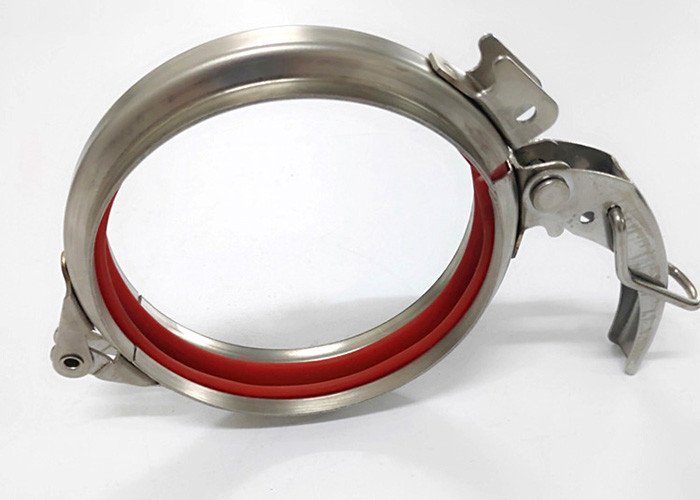

1mm Thickness Duct System SS304 Quick Release Pipe Clamp Rapid Lock v Band Clamp
Product Description:
Material: stainless steel 304
Wall Thickness: 1.0mm for sizes below 315mm, 1.2mm for above 315mm
Use for food grade ducting pipeline.
Available diameters: 80mm-600mm or 3"-24"
Our most cost-conscious clamps are our "quick release duct clamps" which are stainless steel clamps. Quick release duct clamps are used to secure metal duct products to industrial equipment dealing with dust, fume, exhaust, and abrasives collection and/or transfer and such ductwork system. Join duct and fittings with quick release duct clamps for faster connect and disassembly.
Specification:
Our standard available sizes are from 80mm(3") to 600mm (24") , customized design and size requirement are welcome.
|
Galvanized steel quick lock air duct clamp for dust collection system
|
||||
| Φ Diameter mm | Product Code | A mm | H mm | Thickness mm |
| 80 | BMG80 | 28 | 8 | 1.0 |
| 100 | BMG100 | 28 | 8 | 1.0 |
| 120 | BMG120 | 28 | 8 | 1.0 |
| 125 | BMG125 | 28 | 8 | 1.0 |
| 140 | BMG140 | 28 | 8 | 1.0 |
| 150 | BMG150 | 28 | 8 | 1.0 |
| 160 | BMG160 | 28 | 8 | 1.0 |
| 180 | BMG180 | 28 | 8 | 1.0 |
| 200 | BMG200 | 28 | 8 | 1.0 |
| 225 | BMG225 | 28 | 8 | 1.0 |
| 250 | BMG250 | 28 | 8 | 1.0 |
| 275 | BMG275 | 28 | 8 | 1.0 |
| 300 | BMG300 | 28 | 8 | 1.0 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
BMG TYPE:
LMG TYPE:
Our another popular similar duct clamp are provided with adjustable bolt lever.
Application:
Quick lock duct clamp could be used for standard modular ducting for dust collection, dust extraction, air filtration and particle transport system.
And any other pipeline which needs the air tight requirement.
Packing of air duct clamp:
Cartons or wooden cases for mixed sizes.
We accept many OEM clamp production:
Company:
We develop and manufacture modular ducting, circular ductwork in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. Our ducting system adopts the flanged/lip edge quick connection way, allowing rapid installation with no special tools needed. Products including pressed bends / segmented bends( R=1.5D, R=2D , material involving hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from 80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.
