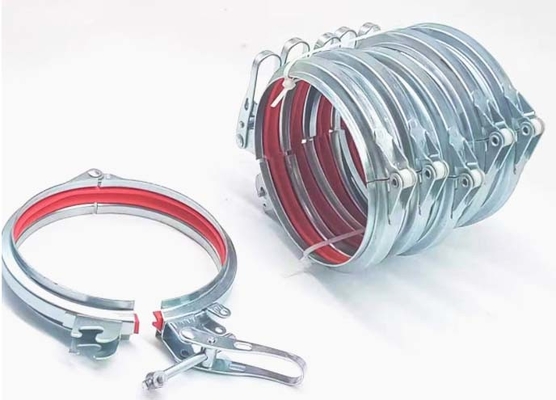

5 Inch / 125mm Dust Removal Pipe V Band Clamp Rapid Lock Pull Rings

5 Inch / 125mm Dust Removal Pipe V Band Clamp Rapid Lock Pull Rings

125mm v band clamp

dust removal pipe v band clamp

5 stainless v band clamp

Place of Origin:

China

Certification:

ISO

CONTACT US
Request A Quote
Product Details
Product Name:
5 Inch / 125mm Dust Removal Pipe Clamp Rapid Lock Pull Rings In Galvanized Steel Or Stainless Steel 304
Type:
Dust Collection Pipe Clamp
Materials:
Carton Steel Or Stainless Steel 304
Band Width:
25mm
ID:
125mm / 5"
Gasket:
TPE Or Rubber Materials
Surface Finish:
Zinc Plated Or Plished
Package:
Carton Or Wooden Case
Application:
Dust Collection / Air Filtration / Pneumatic Conveying
Market:
USA, Europe, Australia Etc.
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$2.2
Packaging Details
Film bag + carton
Delivery Time
5-8 days if stocks available
Payment Terms
L/C T/T WESTERN UNION
Supply Ability
10000 Pieces Per Month
Product Description

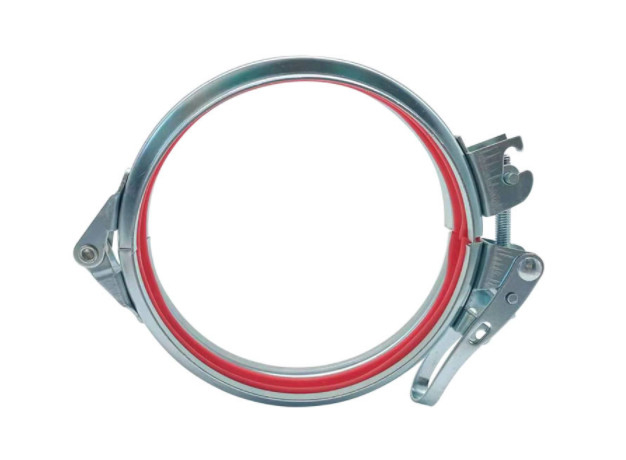

5 Inch 125mm Dust Removal Pipe clamp rapid lock pull rings in galvanized steel or stainless steel 304





1. Pipe clamp material : galvanized carbon steel, stainless steel 304/316

2. Seal ring material : EPDM or Rubber

3. Rapid lock and quick release mechnism (handle or bolt)



This quick release clamp is used to connect and fasten mordular clip ducting in dust collection and light particle conveying. It is air tight with EPDM gasket ring. Rapid lock and quick release design greatly save work time and improve work efficiency.

The material of clamp band is available at carbon steel with galvanzing or stainless steel 304 as required. So the antiseptic is extremely good.

The standard metric size form 80mm up o 600mm. We also supply inch sizes from 4" up to 24".

According to the customer`s requirements and design drawing, our factory accept OEM order. We make the tools, arrange the production and guarantee the quality.





Specification of dust removal pipe clamp



ɸD PRODUCT CODE Width Height Thickness
mm mm mm mm
80 BMG80 28 8 1
100 BMG100 28 8 1
120 BMG120 28 8 1
125 BMG125 28 8 1
140 BMG140 28 8 1
150 BMG150 28 8 1
160 BMG160 28 8 1
180 BMG180 28 8 1
200 BMG200 28 8 1
225 BMG225 28 8 1
250 BMG250 28 8 1
275 BMG275 28 8 1
300 BMG300 28 8 1
315 BMG315 28 8 1.2
350 BMG350 28 8 1.2
400 BMG400 28 8 1.2
450 BMG450 28 8 1.2
500 BMG500 28 8 1.2
550 BMG550 28 8 1.2
600 BMG600 28 8 1.2



Advantage of quick lock pipe clamp



1. Chosed high-quality galvanized carbon steel or stainless steel 304, which is environmental protection.

2. The specifications are available in metric and inches. The non-standard size can be produced according at MOQ.

3. Dozen designs for choice. Hot sales model is rapid lock clamp with handle and pull ring with bolt and pin.

4. It is widely used in medium pressure conveying system like dust collection, air filtration, light particle conveying etc.

5. Quick and simple installation to save work time

6. Factory competitive price to guanrantee clients' cost.





Package of quick release pipe clamp:



  • Carton box for smaller order



5 Inch / 125mm Dust Removal Pipe V Band Clamp Rapid Lock Pull Rings 0

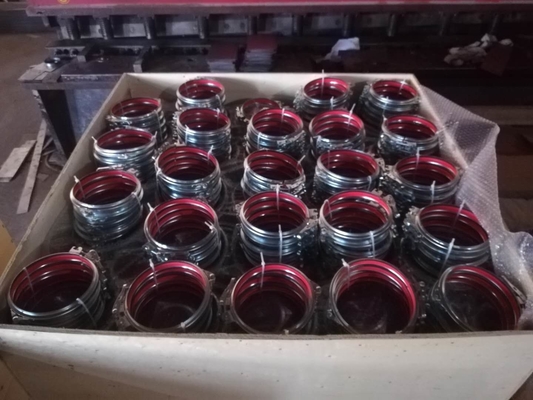

  • Wooden case for big order with dozen of sizes.

5 Inch / 125mm Dust Removal Pipe V Band Clamp Rapid Lock Pull Rings 1



Relative pipe / duct clamp for dust collection and particle conveying:



GI rapid lock pipe clamp, wide / slim pull rings, heavy duty bolted clamp, quick release V vand clamp, hanging bracket etc.



5 Inch / 125mm Dust Removal Pipe V Band Clamp Rapid Lock Pull Rings 2



About us:



As a leading manufacturer of metal products, we aim to supply the perfect products to customers. Today we are more specialized on
the pipe fittings, especially duct clamps, pipe clamps, tube clamps and relative products like tube, elbow, tee, damper and so on.
We are pleased to offer you one-stop service from design, manufacturing, technology solution, and market developing. We win good
reputation worldwide with our principle that put customer’s satisfaction on top priority.

5 Inch / 125mm Dust Removal Pipe V Band Clamp Rapid Lock Pull Rings 3
