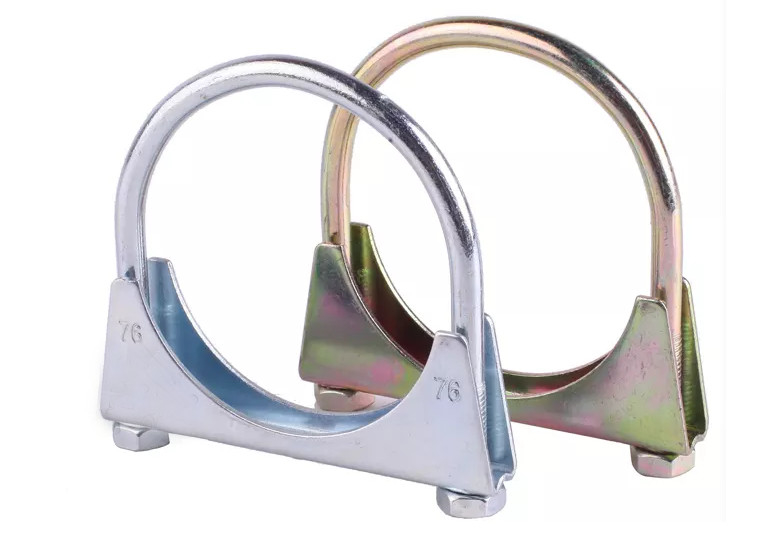

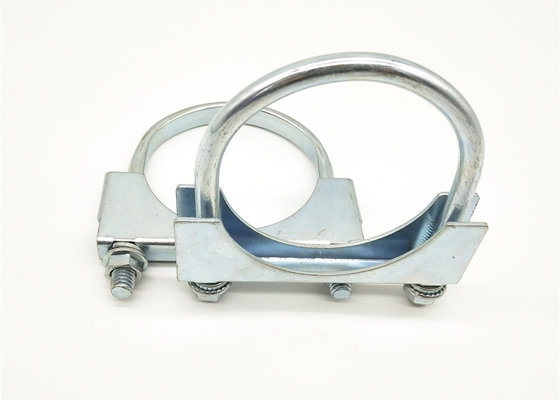

Galvanized Exhaust 76mm U Bolt Muffler Clamp Heavy Duty

Galvanized Exhaust 76mm U Bolt Muffler Clamp Heavy Duty
Galvanized Exhaust 76mm U Bolt Muffler Clamp Heavy Duty Galvanized Exhaust 76mm U Bolt Muffler Clamp Heavy Duty

Large Image :  Galvanized Exhaust 76mm U Bolt Muffler Clamp Heavy Duty

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YP-EXUC76
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD0.8-1.0 PER PIECE
Packaging Details: Plastic bag + seaworthy carton
Delivery Time: In 3 days if stocks available
Payment Terms: L/C T/T WESTERN UNION MONEYGRAM
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: Galvanized Exhaust Clamp Heavy Duty U Bolt Muffler Clamp 76mm Type: Exhaust Pipe Clamp / Muffler Clamp
Dimension Available: 2" 2.25" 2.5" 2.75" 3" 3.5" 4" 4.5" 5" 6" Band Materials: Carton Steel
Sureface Treatment: Chrome Plated / Galvanized Color: Silver
Sub-type: U Bolt Clamp Application: Exhaust Pipe Clamp / Muffler Clamp
Exhaust Clamp Type: Preformed Strap Band Clamp Style: U Bolt Clamp
High Light:

heavy duty u bolt muffler clamp

,

76mm u bolt muffler clamp

,

76mm stainless steel exhaust u clamps

Galvanized Exhaust Clamp Heavy Duty U Bolt Muffler Clamp 76mm



  • Heavy duty double edge open end chrome plated saddle muffler clamp
  • Beautiful silver chrome plating
  • Includes saddle, u-bolt , and 2 nuts (serrated flange)
  • Available in multiple sizes: 2", 2 1/4". 2 1/2", 2 3/4", 3", 3 1/2", 4", 5", and 6"
  • Multiple uses

This U type muffler clamps are available in carbon steel or stainless steel . They feature a 5/16 or 3/8 in. diameter U-bolt and nuts, the 3/8” one is kind of heavy duty clamp, for extra strength and rigidity. The clamps are available in many sizes ranging from 25mm to 105mm for a wide variety of pipe diameters.They are ideal for any exhaust system and feature a saddle-type clamp for added strength. This U Bolt exhaust clamp equipped with bigger 3/8 U-Pole (equal M10) offers stronger, more reliable clamping force. Saddle- type substrate offers more reliable and stronger for applications.



Fitment of U bolt clamp

For any exhaust system

Applications:

flex pipe , exhaust systems for gas/diesel vehicles, tractors, or other heavy machinery

Types:

Heavy-duty steel design with Saddle Style U-Bolt Clamp is more durable and robust then usual bolt one

Zinc finish or stainless material:

Rust and corrosion resistance.




Specification of U bolt clamp:



Galvanized Exhaust 76mm U Bolt Muffler Clamp Heavy Duty 0



Part number Pipe diameter(Inch) Pipe diameter(metric)
C01 1.5" 38mm
C02 1.75" 44.5mm
C03 2" 50.8mm
C04 2.25" 57mm
C05 2.5" 63.5mm
C06 2.75" 69.9mm
C07 3" 76.2mm
C08 3.25" 82.5mm
C09 4" 101.6mm
C10 5" 127mm
C11 5.5" 139.7mm
C12 6" 152.4mm
C13 7" 177.8mm
C14 8" 203.2mm
C15 9" 228.6mm
C16 10" 254mm




Application:

Heavy duty chrome plated u-bolt exhaust saddle style clamps. With many sizes to choose from with multiples uses, our heavy duty u-bolt exhaust clamps are easy to install and are made from steel with a beautiful chrome plating. Chrome plated helps with protecting from rust.



Galvanized Exhaust 76mm U Bolt Muffler Clamp Heavy Duty 1



Packaging and delivery of U bolt clamp:

  • Packaging :Carton with pallet or Wooden crate
  • In 7 days if dimension and quantitly available in stocks
  • Usually 25-30 days for new mass production.
  • Delivery method :By sea, By air, by Train, Ay Express. Any way customer prefered.
  •

Related products:





As a leading producer of exhaust clamps and flexible pipe in China, we aim to supply best price and high-qualited products on the market to our clients.There are many designs and dimensions for your choice. For example, the exhaust clamp included  stainless steel V band clamp kits, butt joint band clamp, galvanized U bolted clamp, and OEM bracket etc.

Galvanized Exhaust 76mm U Bolt Muffler Clamp Heavy Duty 2
