4" Stainless Steel V Band Clamp For Auto Exhaust System Repairing

4" Stainless Steel V Band Clamp For Auto Exhaust System Repairing

304 stainless steel v band clamp

4" stainless steel v band clamp

4 inch exhaust v band clamp

Place of Origin:

China

Certification:

ISO

CONTACT US
Request A Quote
Product Details
Product Name:
4" V-Band Clamp Assembly Stainless Steel Exhaust Clamp For Auto Exhaust System Repairing
Type:
V Band Exhaust Clamp Assembly
Materials:
Stainless Steel 304
Band Width:
3/4"(19mm)
ID:
4 In.
Flange:
Male / Female
Surface Finish:
Polished
Package:
Individual Packaging
Application:
Auto Exhaust Pipe
Market:
USA. Europe, Australia Etc.
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$8.25
Packaging Details
Film bag + carton
Delivery Time
5-8 days if stocks available
Payment Terms
L/C T/T WESTERN UNION
Supply Ability
10000 Pieces Per Month
Product Description

4" V-Band Clamp Assembly Stainless Steel Exhaust Clamp For Auto Exhaust System Repairing



304 Stainless Quick Release style V-Band Clamp utilize a quick release style latch that allows for quick assembly and disassembly in applications where frequent removal is required. Unlike the "standard" style V-Band Clamps, Quick Release style V-Band Clamps feature a removable and replaceable T-Bolt section, should the user need to do so.

Stainless steel V-Band Clamp Properties

"Male/Female" interlocking style V-Band Flanges feature a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The interlocking seating surface, the area where the two flanges meet, makes fitment and installation a breeze even in tightest of areas.

V-Band Clamps are engineered and designed for heavy duty trucks, automotive, high performance and racing, generator and marine industries. Their tight design makes them a perfect solution for decreased emissions. Applications include:

  • Pumps
  • Engines
  • Exhaust systems
  • Emissions
  • Diesel particulate filters
  • Muffler assemblies
  • Filters
  • Food and chemical processing equipment
  • Turbochargers
  • Telecommunication equipment and tubing

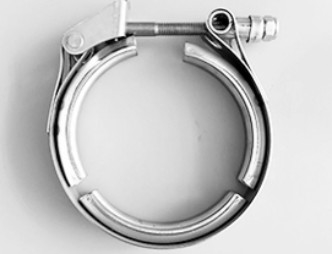

​V-Band clamps with T-Bolt quick release style latches.

4" Stainless Steel V Band Clamp For Auto Exhaust System Repairing 0

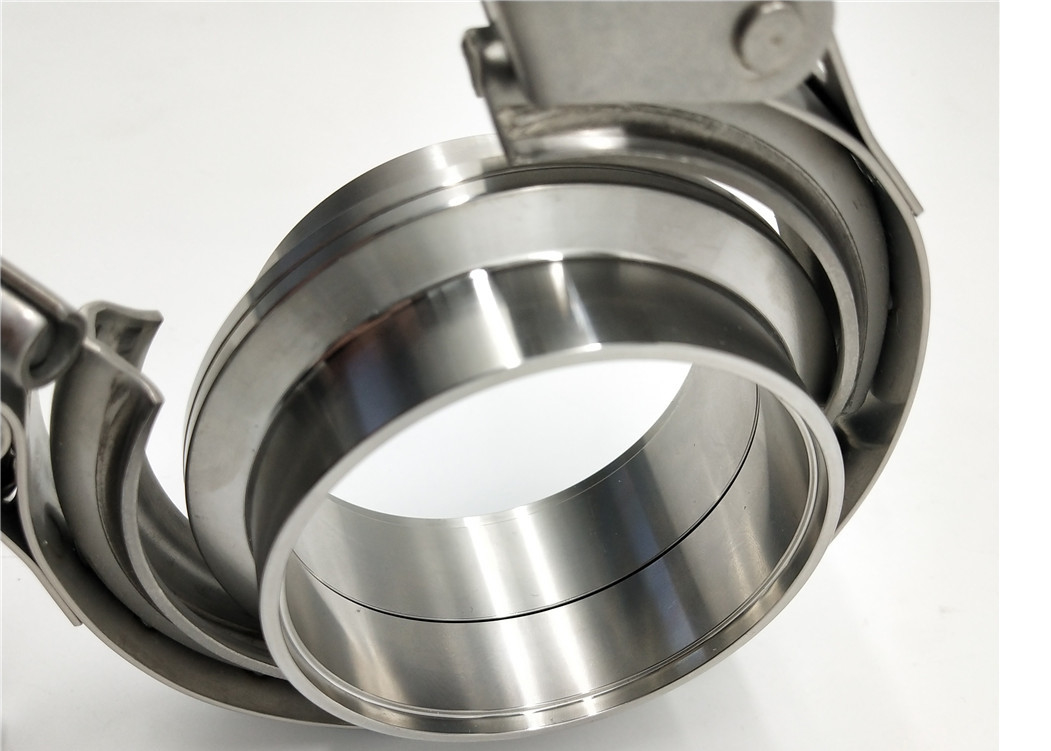

V band clamp with standard T-bolt

4" Stainless Steel V Band Clamp For Auto Exhaust System Repairing 1



Specifications of V band exhaust clamp assembly.



Size(Inch) Flange ID(mm) Exhaust pipe OD(mm) Materials
1.5 38.9 38.1 Stainless steel 304
1.75 45.3 44.5
2 51.6 50.8
2.25 57.9 57.1
2.5 64.3 63.5
2.75 70.6 69.8
3 77 76.2
3.25 83.3 82.5
3.5 89.7 88.9
3.75 96.4 95.6
4 102.4 101.6
4.5 115.1 114.3
5 127.8 127
6 153.2 152.4






Advantages of Stainless steel V-band clamps assebmly"

When compared to 2 or 3-bolt flanges, the V-band connections are lighter, quicker and easier to take apart. In most cases the V-band clamps are economical when you consider the cost of time in installation and reassembly. V-band connections require a smaller fitment envelope as compared with multi-bolt flanges, and the biggest advantage, the design of the V-band clamp applies uniform force around the flange which maximizes the seal potential of the flanges.

  1. Reduces assembly cost, saves time and ease of accessibility
  2. Ideal for applications requiring frequent access for cleaning, inspection or replacement of internal components
  3. Smaller envelop dimensions, weight savings and improved appearance
  4. Provides additional strength by absorbing circumferential load

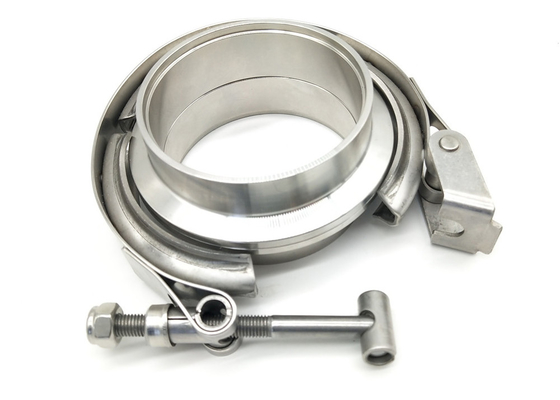

Installation of V band clamp



For a V-band clamp to work optimally, proper installation is critical. Tubes and components of the coupling must be joined and aligned before installing the coupling. The flanges must also be aligned correctly prior to coupling installation for good joint performance.



Tighten the nut to approximately 70% of the required torque (on double-latch assemblies, torque both latches equally). Check to assure the coupling has seated over flanges equally around the periphery. Also, check for correct flange alignment. Radial flange alignment can be checked visually in the gap between adjacent retainer segments.



4" Stainless Steel V Band Clamp For Auto Exhaust System Repairing 2



Packing and delivery:



Package method:Separate carton for each, big carton outside or as clients's request

Delivery time:in 3 days if stocks available, new production time depends on ordered quantity

Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)

Shipping terms: FOB, CIF, CNF DDP etc.



4" Stainless Steel V Band Clamp For Auto Exhaust System Repairing 3
