Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Shijiazhuang, Hebei | Item: | Stainless Steel Exhaust V Band Clamp |
|---|---|---|---|
| OE NO.: | Performance | Clamp Type: | Quick Bolt Lock V Band Clamp |
| Model: | 760 | Flange Type: | Male And Female Flanges Could Be Added |
| Size: | 3.0" | Clamp Material: | Stainless Steel 304 |
| Car Fitment: | Universal | Logo: | YP Or Customized |
| High Light: | 76mm v band clamp,mild steel 3 v band clamp,quick lock v band clamp 3 inch |
||

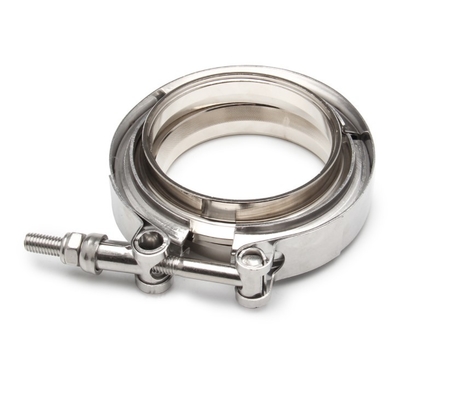

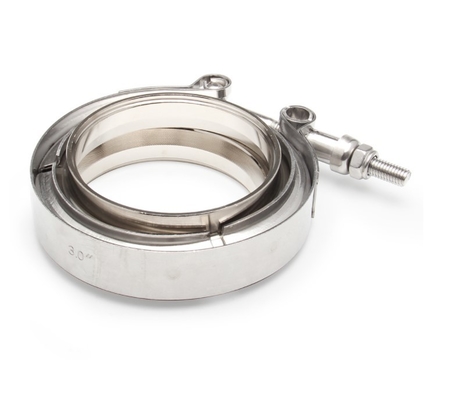

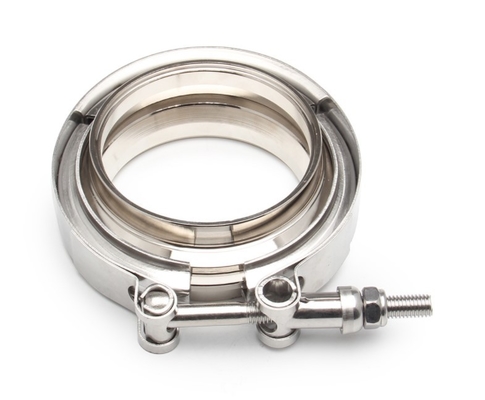

3.0 inch 76mm Mild Steel Interlocking Flanges with Quick Lock V Band Clamp
Description:
Material :Clamp -Stainless Steel , Male and Female Mild Steel Flanges
Fit for : 3.0 inch O.D. Pipe ,Universal.
"Male/Female" design to ensure proper alignment of the flanges inside the clamp.
This flange assembly consists of interlocking flanges,V-band clamp and is one year limited warranty.
Package : 1 set.
Important Note: This item is not vehicle specific. It is compatible with a wide range of applications. Please review the specifications and verify compatibility prior to placing your order.
Details:
Butt welding,each welding spot can bear tension of 150KG.
Clear screw thread & thread galling free.
Two types of latches, standard and quick release for option.
stainless steel T-bolt clamps, Barrel hardware clamps,V-band clamps/ coupling and flanges, etc. We serve commercial and industrial companies in a wide variety of markets ranging from the automative industry to the waste water treatment industry.Our ability to offer top quality products, design engineering expertise, friendly customers service, and on-time delivery make Palmergrip the best choice for all of your fastening applications. Our heavy duty clamp series are outstanding to serve in some special applications like high tempreture (1200F), high vibration (4G) applications.
Specification of v band clamp:
| No. | Products |
Spec (Inch) |
Flange ID(mm) |
| 1 |
Standard V band clamp kits |
1.50" | 38.9 |
| 2 | 1.75" | 45.2 | |
| 3 | 2.00" | 51.6 | |
| 4 | 2.25" | 57.9 | |
| 5 | 2.36" | 60.5 | |
| 6 | 2.50" | 64.3 | |
| 7 | 2.75" | 70.6 | |
| 8 | 3.00" | 77.0 | |
| 9 | 3.25" | 83.3 | |
| 10 | 3.50" | 89.7 | |
| 11 | 4.00" | 102.4 | |
| 12 | 4.50" | 115.1 | |
| 13 | 5.00" | 127.8 | |
| 14 | 6.00" | 153.2 |
Packaging :
10pieces into a plastic bag, then 50 pieces into a carton.
Customized packing requirement could be met too, single packing also workable, cost will be added as actual order quantity.
Workshop Show:
| Our Advantages: |
| 1)We are original manufacturer of hose clamp, it means we could offer products with more quality assurance but with better price. |
| 2) We have our own technology research and development department, and have the ability to open mold for the late-model products, it decide our leading role in the clamp industry. |
| 3)We could offerbetter delivery time to the customers. |
| 4)We have long-term cooperate suppliers of raw material and packages, it is powerfully guaranteed the quality and stability |
| 5) We also set up quality testing department, to control the products further. |
| 6)We also offer after-sales service to the new and old customers, if you find the products damaged or short for our cause, we would repair and supplement them, or we could talk about compensation method together. |
