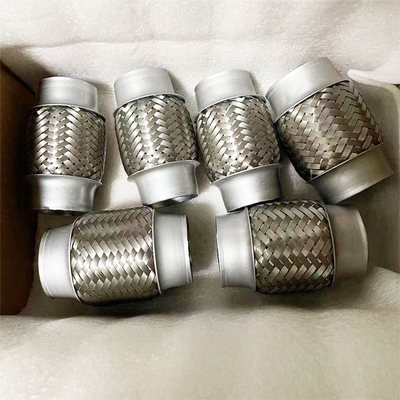

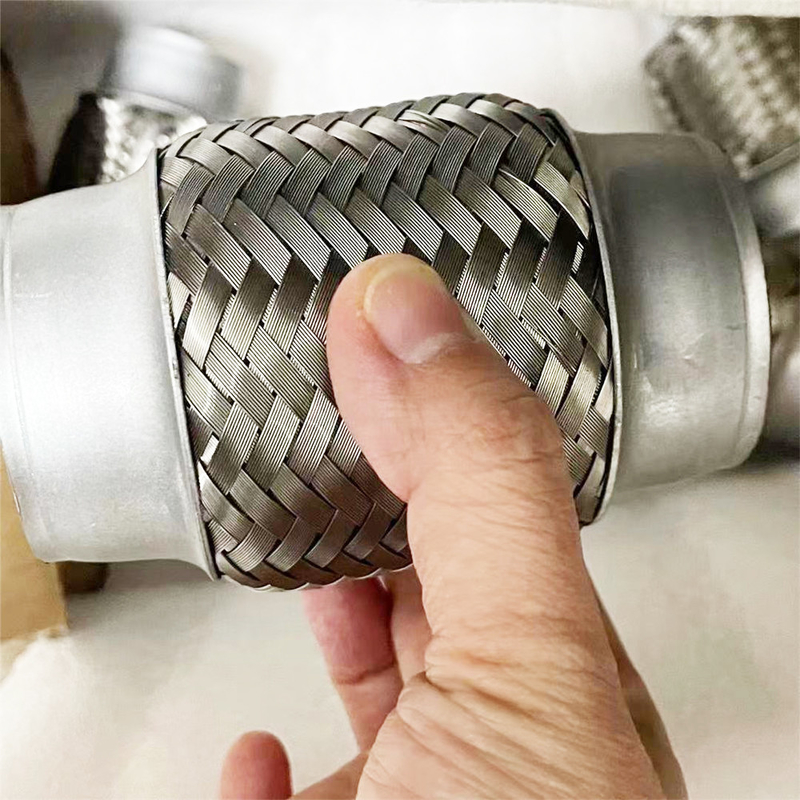

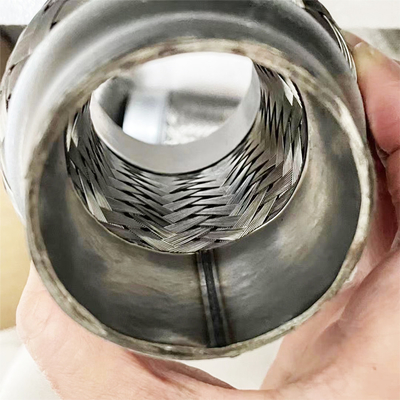

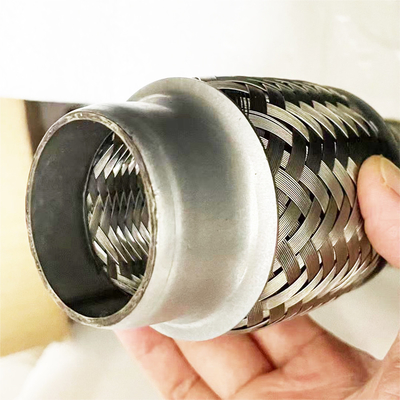

Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe

Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe
Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe

Large Image :  Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe

Product Details:
Place of Origin: Hebei
Brand Name: YP
Model Number: YP-EXF57
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2.0
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION MONEYGRAM
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: Vibration Absorb Exhaust System ID 40mm Flexible Braided Bellows Flex Bellows With 1.2mm Welded Pipe Inside Diameter: 40mm
Materials: SS201, SS304, SS409 Wire Braided Body: 4 Inch / 102mm
Structure: Inner Braid, Outer Braid Cap / Collar Materials: Aluminized Steel Cap Or SS409 / Ss201 Cap
Bellow Layers: Single Layer Or Double Layers Application: Car / Truck / Freight Liner Exhaust System
Feature: Low Cost, No Leak And Suitable Flexibility Main Market: Lybia, Pakistan, Turkey, Iran, UAE, Southeast Asia Etc
High Light:

id 40mm braided bellows

,

1.2mm welded pipe braided bellows

Vibration Absorb Exhaust System ID 40mm Flexible Braided Bellows Flex Bellows With 1.2mm Welded Pipe



Product Description of exhaust system flexible braided bellows:



Key words: Car Exhaust System Stainless Steel Flex Exhaust Muffer Pipe, Flexible Exhaust Bellows with wire braided / interlock liner / nipple


The flexible exhaust pipe is a flexible piece of pipe that allows the exhaust system some flexibility. Flex Pipe are an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex. Pipe protects your exhaust system from breakage and more noise. Without that extra flexibility , the rocking motion would crack the exhaust system and cause a loud leak.



Stainless steel exhaust flexible pipe is a common part for engine exhaust system of car or truck. You can find what you want in our factory. Based on different market, we supply different structures and materials for flex pipe.  SUS 201, SUS 202, SUS 304 SUS316, double layers or single layers. Nipple materials could be aluminized steel or stainless steel. Hot sizes included  1.75” / 2.0” / 2.25” / 2.5” / 3.0” . Flexible pipe resist high temperature, and absorbs muffler pipe thermal expansion, decrease engine noise and vibration, reduce air pollution.


We supply flexible pipe in followed models:


Type A Outer Braided Flexible pipe with inner bellow
Type B Outer Braided Flexible pipe with braided liner and bellows in the middle
Type C Bellows with interlock liner
Type D Typle A B C models  + Nipples
OEM model  Available as request


Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe 0

Specification of exhaust flex pipe:



Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe 1



Inner Diameter (ID) Flex length(L) Overall length(L)
Inch mm Inch mm Inch mm
1-3/4" 45 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
  48 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
2" 50.8 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
  54 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10 254 14" 356
2-1/4" 57.2 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
2-1/2" 63.5 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
3" 76.2 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356




Warehouse of flexible exhaust pipe:



Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe 2


Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe 3

Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe 4

Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe 5Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe 6


Packaging and Delivery Time of exhaust flexible pipe:

Packaging method: 25pcs per carton, each piece is wrapped with a plastic bag.
Delivery time: in 7 days if stocks available. New production against the order quantity.

Id 40mm Braided Bellows Stainless Steel Exhaust Parts With 1.2mm Welded Pipe 7


FAQ



1. Q: How about the payment terms?

T/T 100% for order value less than $3000. Otherwise, 30% deposit in advance, the balance against the copy of B/L. It can be also discussed when we have friendly relationship.

2. How about Delivery time?

We can produce 100,00 pcs per month. Normally, 5-8 days if stocks available.

3. Q:Can I get a sample?

For sure, we are willing to supply samples free for your quality checking. But the freight fee is in buyer side.

4. Q : What's the price?

Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
