Product Details:
|
| Product Name: | SS409 45×152mm Stainless Steel Exhaust Flex Pipe With Interlock Liner And Welded Extension Pipe | Inside Diameter: | 45mm / 1.75" |
|---|---|---|---|
| Materials: | SS201, SS304, SS316 | Wire Braided Body: | 6 Inch / 102mm |
| Overall Length: | 10 Inch / 202mm | Structure: | Interlock Liner + Outer Braided + Nipple / Extension Pipe |
| Cap / Collar Materials: | Aluminized Steel Or SS409 | Bellow Layers: | Single Layer Or Double Layers |
| Application: | Car / Truck / Freight Liner Exhaust System | Feature: | Low Cost, No Leak And Suitable Flexibility |
| Main Market: | Lybia, Pakistan, Turkey, Iran, UAE, Southeast Asia Etc | ||
| High Light: | ss409 1.75 inch flex pipe,45×152mm flex pipe exhaust,id 1.75" flex pipe exhaust |
||

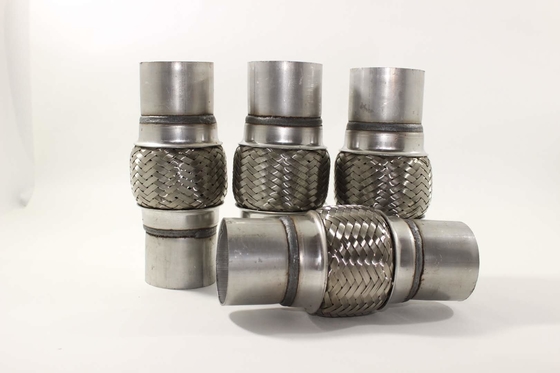

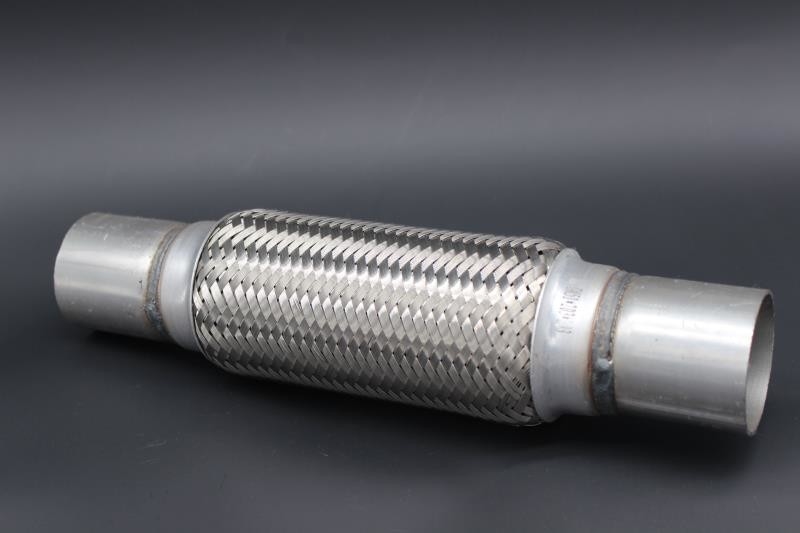

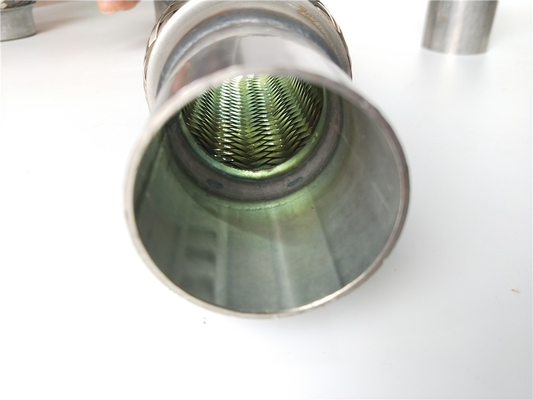

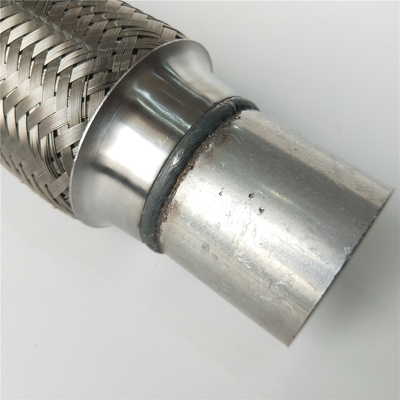

Car Exhaust System Stainless Steel Flex Exhaust Muffer Pipe, Flexible Exhaust Bellows with wire braided / interlock liner / nipple
The flexible exhaust pipe is a flexible piece of pipe that allows the exhaust system some flexibility. Flex Pipe are an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex. Pipe protects your exhaust system from breakage and more noise. Without that extra flexibility , the rocking motion would crack the exhaust system and cause a loud leak.
Stainless steel exhaust flexible pipe is a common part for engine exhaust system of car or truck. You can find what you want in our factory. Based on different market, we supply different structures and materials for flex pipe. SUS 201, SUS 202, SUS 304 SUS316, double layers or single layers. Nipple materials could be aluminized steel or stainless steel. Hot sizes included 1.75” / 2.0” / 2.25” / 2.5” / 3.0” . Flexible pipe resist high temperature, and absorbs muffler pipe thermal expansion, decrease engine noise and vibration, reduce air pollution.
We supply flexible pipe in followed models:
| Type A | Outer Braided Flexible pipe with inner bellow |
| Type B | Outer Braided Flexible pipe with braided liner and bellows in the middle |
| Type C | Bellows with interlock liner |
| Type D | Typle A B C models + Nipples |
| OEM model | Available as request |

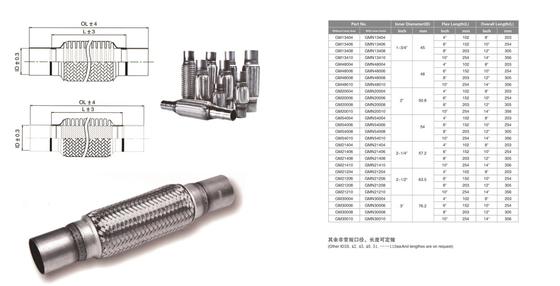

Specification of exhaust flex pipe:
| Inner Diameter (ID) | Flex length(L) | Overall length(L) | |||
| Inch | mm | Inch | mm | Inch | mm |
| 1-3/4" | 45 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 48 | 4" | 102 | 8" | 203 | |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 2" | 50.8 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 54 | 4" | 102 | 8" | 203 | |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10 | 254 | 14" | 356 | ||
| 2-1/4" | 57.2 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 2-1/2" | 63.5 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 3" | 76.2 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 |
||
Warehouse of flexible exhaust pipe:
FAQ
1. Q: How about the payment terms?
T/T 100% for order value less than $3000. Otherwise, 30% deposit in advance, the balance against the copy of B/L. It can be also discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 100,00 pcs per month. Normally, 5-8 days if stocks available.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for your quality checking. But the freight fee is in buyer side.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Contact me on line or by email. We will give you fast and best offer. Thanks.
