Product Details:
|
| Product Name: | Exhaust Pipe Clamp 304 Bright Stainless Steel 0.02" Thick Lap Joint Clamp | Type: | Exhaust Lap Joint Clamp |
|---|---|---|---|
| Dimension: | 2" 2.25" 2.5" 2.75" 3" 3.5" 4" 4.5" 5" 6" | Band Materials: | Stainless Steel 304 |
| Surface Treatment: | Polished | Color: | Silver |
| Block Materials: | Aluminum | Application: | Exhaust Pipe Clamp / Muffler Clamp |
| Exhaust Clamp Type: | Pre-formed Strap Band Clamp | Style: | Band Clamp, Butt Joint |
| High Light: | 152.4mm stainless steel exhaust clamps,6 inch stainless steel exhaust clamps,152.4mm stainless exhaust clamps |
||

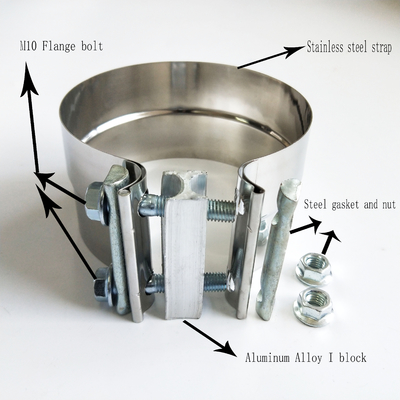

Butt / Lap joint band exhaust clamp provide a very simple, effective way when connecting your exhaust systems with 360°seal . The unique seal and high clamp loads are supplied without distorting your exhaust components, allowing the flexibility to disassemble for service. Regular exhaust clamps will distort the tubes when you try to tighten to make it more seal. With an I shape reaction block, which has arc curved face, together with a bolt, the clamp can create a complete "Inner circle Seal", helping avoid any leak of exhaust gas or noise.
| 1 |
Butt Joint exhaust Muffler clamp band is a strap of metal, which will wrap around the exhaust pipe joints easily no damage to the pipe |
| 2 |
Seal Muffler Inlets, outlets, elbow joints, pipe |
| 3 |
I-Block helps to distributes the clamping force evenly over the entire 360° , which prevent any leaks or material distortion |
| 4 |
Available in a wide range of styles and sizes |
| 5 |
304 Stainless Steel Construction |
Specification of lap joint exhaust pipe clamp
| MODEL NUMBER | Dia(mm) | Dia(in) |
| YP-EXFBC020 | 51 | 2" |
| YP-EXFBC225 | 57 | 2.25" |
| YP-EXFBC250 | 64 | 2.5“ |
| YP-EXFBC275 | 70 | 2.75” |
| YP-EXFBC300 | 76 | 3“ |
| YP-EXFBC350 | 89 | 3.5” |
| YP-EXFBC400 | 102 | 4“ |
| YP-EXFBC450 | 114 | 4.5” |
| YP-EXFBC500 | 127 | 5“ |
| YP-EXFBC600 | 152 | 6” |
Feature of lap joint exhaust clamp

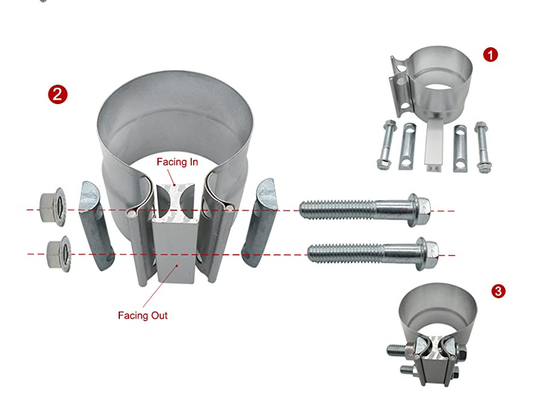

Reaction block provides full 360 degree equal distribution of stretching force. Preformed band with step provides fast and accurate installation. High strength plated fasteners can be torqued from either side of clamp.
This exhaust clamp have strong strength, good durability, great apperance and anti-corrosion advantage.
Stainless steel band with long lifetime.
No welding design
Easy installation
Application of lap joint exhaust clamp
Univeral fit for most vehicle 2"-6" OD exhasut pipe.
