Product Details:
|
| Item Name: | ID 2" / 51mm 300mm Length Stainless Steel Flex Bellow Pipe Auto Aftermarket Car / Truck Exhaust Pipe | Inside Diameter: | 2 Inch / 51mm |
|---|---|---|---|
| Materials: | Stainless Steel 201 / 304 | Overall Length: | 12" / 300mm |
| Structure: | SS Bellow + Inner Braided + Outer Braided | Cap / Collar Materials: | Aluminized Steel |
| Bellow No.: | Single Layer Or Double Layers | Application: | Aftermarket Auto Exhaust Pipe |
| Feature: | No Leak And Suitable Flexibility | ||
| High Light: | odm flexible metal exhaust pipe,51mm flexible metal exhaust pipe,51mm stainless steel flexible exhaust tubing |
||
Exhaust flexible pipe is installed in the exhaust pipe between the engine exhaust branch pipe and the muffler, which makes theconnection of the entire exhaust system flexible and plays a role in reducing noise. Easy to install and extend the life of exhaust noise reduction system. Mainly used for light trucks, small passenger cars and buses. The structure is a double-layer corrugated pipe covered with a steel wire mesh sleeve, and the two ends are a straight edge segment outer snap ring structure. In order to improve the noise reduction effect, an expansion joint or mesh sleeve can be installed in the bellows.

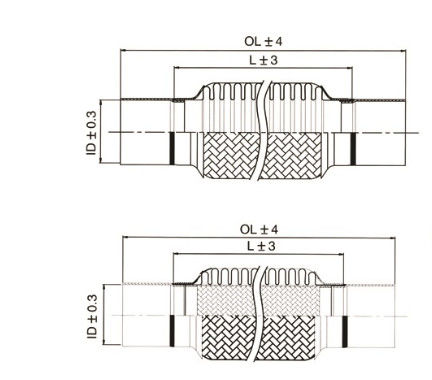

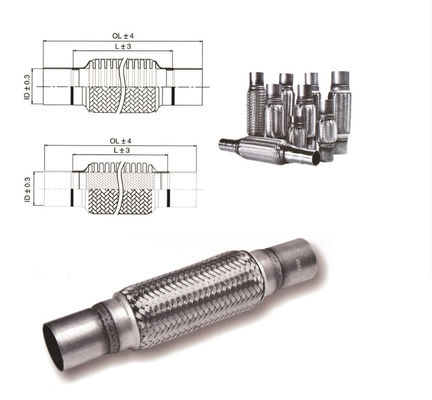

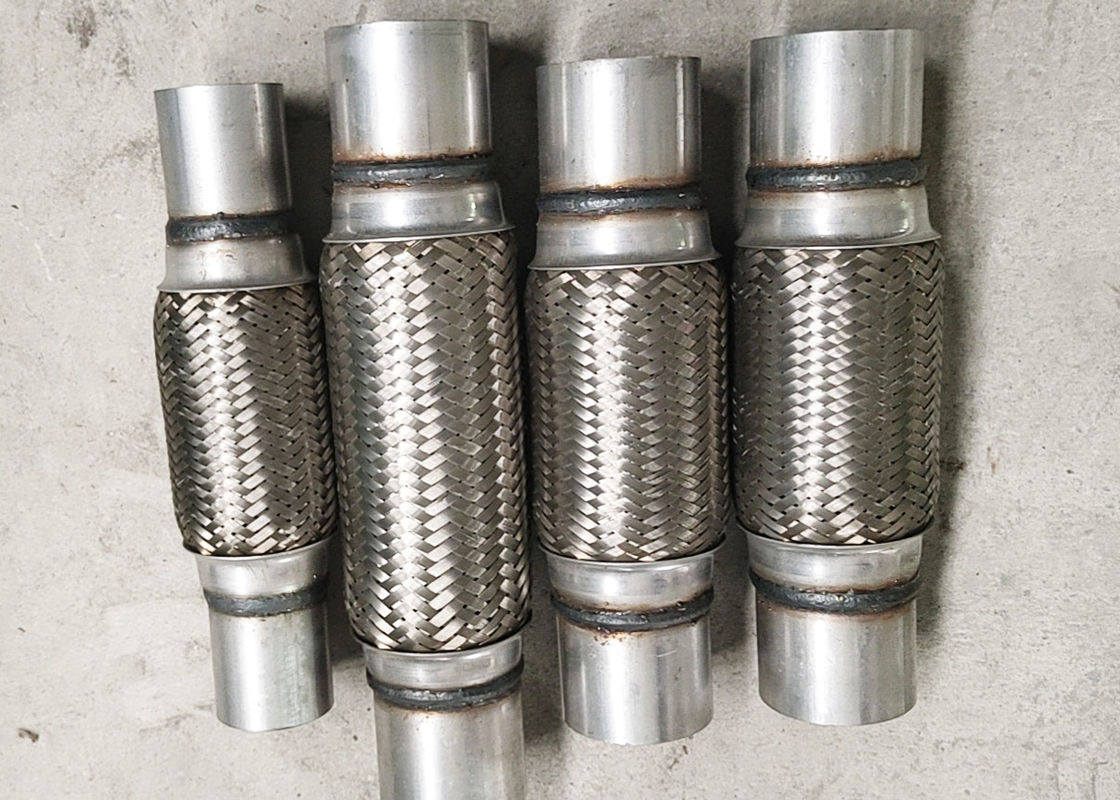

Exhaust bellow pipe are constructed by stainless steel bellow and wire braid. According to different requirement on the flexibility and model, we can supply double layer bellows and several models like inner wire braided, interlock linner gasket, and wire mesh outside etc. The dimensions can be customized according to client's actual usage. Hot sales ID is 40mm 45mm 51mm 60mm 63mm.
Model of exhaust flex pipe
| Discription | Flexible Bellow Pipe | Main market | Africa, Middle-east country, Indonesia, South-east countries, Pakistan, North America, South America |
| Inside diameter inch | 1 1/2", 1 3/4" , 2", 2 1/2", | Inside daimeter metric | 40mmm 45mm 51mm 60mm 63mm |
|
Overall length in inch
|
4" 6" 8" 10 " 12" 14" | Overall length in metric | 100mm 150mm 200mm 250mm 300mm etc |
| Flex pipe Material | Stainless steel 304 201 | Joint Cap Material | Aluminized steel / stainless steel |
| Car Make | Universal | Application | Exhaust pipe of various of car, bus, truck, and so on. |
| Packing | Plastic bag and seaworthy box | Package Quantity | 1 pcs |
| Brand | YP | Place of Origin | Tianjin, China |
| Certificate | ISO | Warranty | One Year |
Specification of available exhaust flexible pipe:
|
Hot sales flexible pipe sizes
|
|
| With extension pipe | Without extension pipe |
| ID 45 x 100 x 200mm | ID 45 x 100mm |
| ID 45 x 150 x 250mm | ID 45 x 200mm |
| ID 51 x 100 x 200mm | ID 51 x 200mm |
| ID 51 x 200 x 300mm | ID 51 x 150mm |
| ID 57 x 150 x 250mm | ID 57 x 200mm |
| ID 57 x 200 x 300mm | ID 57 x 150mm |
| ID 60 x 150 x 250mm | ID 60 x 250mm |
| ID 60 x 250 x 350mm. | ID 65 x 250mm |
Application of exhaust flexible pipe:
The flexible bellow pipe is an important part of car exhaust system. When you accelerate, The car’s engine moves back and forth on rubber engine mounts. The flexible pipe allows for flexibility in your exhaust system, preventing the engine’s movement and vibrations from damaging and cracking the exhaust pipe.
Packaging of exhaust flexible pipe:
25pcs per carton. film bag for each product. Mark as request.
