High Performance 2.5 Inch V Band Exhaust Clamp With Male And Female Flanges

High Performance 2.5 Inch V Band Exhaust Clamp With Male And Female Flanges

2.5 inch v band exhaust clamp

flanges v band clamp 2.5 inch

performance 2.5 inch v band exhaust clamp

Place of Origin:

China

CONTACT US
Request A Quote
Product Details
Product Name:
High Performance Stainless Steel Turbo Exhaust System Pipe V Band Clamp 2.5 Inch With Male And Female Flanges
Size Choice:
1.75 Inch, 2.0 Inch, 2.25 Inch, 2.5 Inch, 2.75 Inch, 3.0 Inch, 3.25 Inch, 3.5 Inch, 4.0 Inch 5.0 Inch And 6.0inch.
Materials:
Stainless Steel 304
Band Width:
3/4"(19mm)
Flange:
Male And Female / Flat Flange
Surface:
Polished
Package:
Individual Packaging
Type:
Turbo Exhaust Pipe Clamp
Application:
Car Exhaust System
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD5.0~5.5 PER PIECE
Packaging Details
Film bag + carton
Delivery Time
5-8 days if stocks available
Payment Terms
L/C T/T WESTERN UNION
Supply Ability
10000 Pieces Per Month
Product Description

Goods Description:



Our premium V-Band Clamps and flanges are made of high-quality stainless steel 304 or 316L material with high strength, reliability, and corrosion resistance ,has a shining surface and good welding. The inside interlocking stainless steel flange with much deeper outside , ensuring a secure and tight fit that are able to withstand high pressures. The high corrosion resistant 304 stainless steel make the v band clamps accept extreme environmental conditions. Available as individual pieces with or without flange or 2 pieces as requirement.





3" Stainless Steel Exhaust Pipe Clamp Standard Latch V Band Clamp And Flange Kit Female / Male



V band clamp and clamp kit with flange

1. Variety of bolts are available, in different length,diameters or material
2. Different Latch system are provided , either quick release version or standard T bolt version.
3. Custom diameters, width, thickness and sizes are welcome.
4. Different flanges , V inserts are available to choice.
5. Quality manufacturing, excellent performance, shiny/bright surface with no burr.
6. Clear screw thread & thread galling free.

Specification



1.75 inch, 2.0 inch, 2.25 inch, 2.5 inch, 2.75 inch, 3.0 inch, 3.25 inch, 3.5 inch, 4.0 inch 5.0 inch and 6.0inch.



Feature:



V-Band Clamps+Flange makes it easy to install and remove exhaust systems and turbo parts, such as downpipes, B Pipes and the like. Great for racers and tuners, these clamps make it easy to remove parts to gain access to vital componenets easily as there are no hard to reach bolts or special tools needed. Simply undo the clamp and you can remove the component easily



Application



V-Band Clamps/Couplings offer effective fastening solutions in a wide range of applications including pumps, engines, exhaust systems, filters, and food and chemical processing equipment. Because V-Band Couplings can be easily assembled and disassembled, they are often used on equipment that requires frequent service or maintenance. Clampco makes it easy to find the exact V-Band Clamp/Coupling for your application.

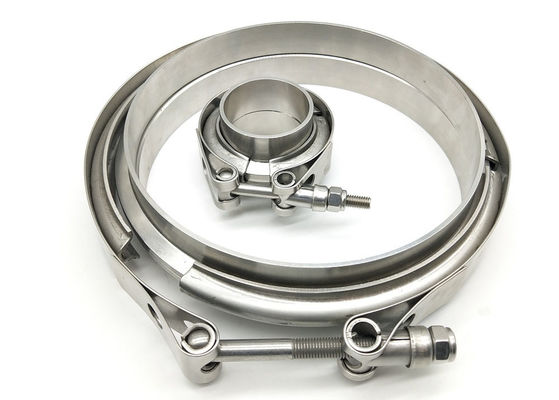

High Performance 2.5 Inch V Band Exhaust Clamp With Male And Female Flanges 0

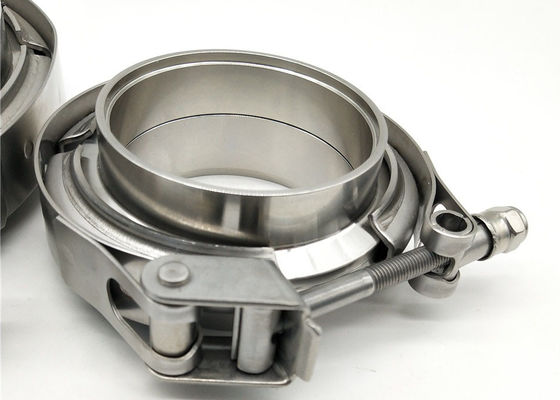

High Performance 2.5 Inch V Band Exhaust Clamp With Male And Female Flanges 1



Specification of V band clamp with flanges

Item
Material
Spec.(inch)
Clamp ID(mm)
Flange ID(mm)





1. V band clamp



2. V band clamp with flat flange



3. V band clamp kit with female / Male flange



( standard latch and quick release latch are both available )









Superior Grade SS 304
1.5”
60
38.9
1.75”
66.4
45.3
2”
72.8
51.6
2.25”
79.1
57.9
2.36”
81.6
64.3
2.5”
85.5
70.6
2.75”
91.8
77
3”
98.2
83.3
3.25”
104.5
89.7
3.5
110.9
96.1
4”
123.5
102.4
4.5”
136.3
115.1
5”
149
127.8
6”
174.4
153.2





Application of exhaust V band clamp with flanges.



High Performance 2.5 Inch V Band Exhaust Clamp With Male And Female Flanges 2

High Performance 2.5 Inch V Band Exhaust Clamp With Male And Female Flanges 3



Packaging and delivery of v band clamp



  •  Plastic bag + seaworthy carton without pallet
  •  Plastic bag + seaworthy carton with pallet
  •  Particular packaging as client's request
  • 1-100pcs delivery time in 5-8 days
  • 100-10000pcs delivery time depends on the final purchased quantity.



High Performance 2.5 Inch V Band Exhaust Clamp With Male And Female Flanges 4

High Performance 2.5 Inch V Band Exhaust Clamp With Male And Female Flanges 5



About us:

We are speicalized in exhaust pipe clamp not limted to v band clamp, but also Butt jointed clamp, lap jointed clamp, U bolt clamp, single bolt band clamp, heavy duty hose clamp and OEM mounting bracket.  Our main market: USA, Europe, The Middle East, Southeast Asia, and Russia. Our products are sold worldwide with strict control over materials. We strictly control the quality of our products in the production process. Our responsibility for our products is our responsibility to our customers.

High Performance 2.5 Inch V Band Exhaust Clamp With Male And Female Flanges 6

High Performance 2.5 Inch V Band Exhaust Clamp With Male And Female Flanges 7

Our service:

1. Any inquiries will be replied within 24 hours.
2. Professional team made of exeprienced technician and sales person.
3. High quality,standard designs,reasonable&competitive price,fast lead time.
4. Sample will be prepared in 7 days.
5. Strong cooperation with DHL,TNT,UPS,China Shipping and supply best freight,etc.
6. Small order are acceptable.



We not only supplied clients premium products, but also good service and support you need to get orders quickly and accurately.Welcome your inquiry if you have any demand. My whatsapp number: 008613472162077
