Product Details:
|
| Product: | 2.5 Inch Centered Centered Configuration Welded Performance Stainless Steel Mufflers | Material: | Stainless Steel 409 |
|---|---|---|---|
| Surface Treatment: | Mirror Polished | Type: | Straight-through |
| Muffler Installation Methods: | Welding Or Clamp On | Configuration: | Centered / Centered |
| Muffler Inlet Diamter: | ID 2.5" | Muffler Outlet Diameter: | ID 2.5" |
| Overall Length: | 14" | Shape: | Oval Shape |
| Muffler Body Height: | 4.5" | Muffler Body Width: | 9.75 |
| High Light: | centered configuration universal performance muffler,2.5 inch universal performance muffler,universal performance muffler overal 19 inch |
||

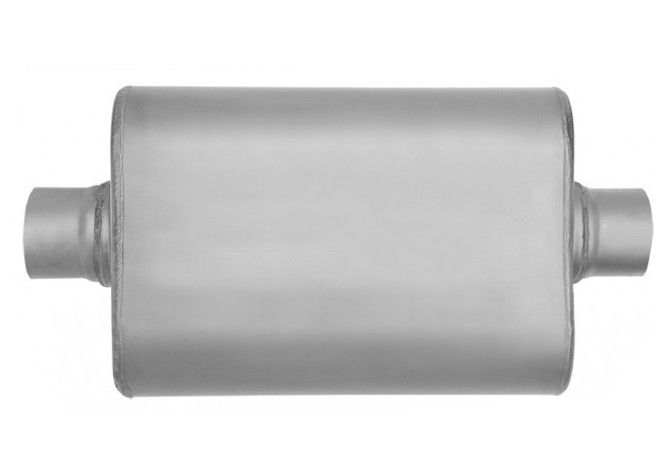

2.5 Inch Centered Centered Configuration Welded Performance Stainless Steel Mufflers Overal 19 Inch
Welded perfofrmance stainless steel mufflers feature 100% welded construction for lifelong durability. The unrestricted, straight-through design support up 2000 horsepower. Each muffler uses exclusive continuous roving fiberglass to absorb unwanted interior resonance while maintaining a deep performance tone.

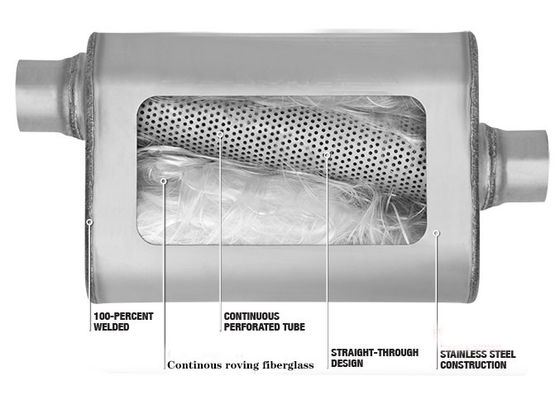

Features and benefit of welded stainless steel muffler
Stainless steel construction for lifelong protection
100% welded design for maxiumu durability
Support up to 2000 horspower.
Straight-through design ensures unrestricted exhaust flow and reduces back pressure
Continous roving fiberglass absort unwanted interior resonance while maintaining a deep performance tone.
Brief production of welded stainless steel muffler
|
Product: |
2.5 Inch Centered Centered Configuration Welded Performance Stainless Steel Mufflers Overal 19 Inch |
| Material |
Stainless steel 409, two layers of stainless steel |
|
Installation method |
Welding on or clamp on |
| Muffler type | Welded |
| Surface treatment |
Polished |
|
Body length |
14 inches |
| Inlet diameter |
2.5 inch |
| Outlet diameter |
2.5 inch |
| Muffler type |
Straight-through |
| Overall Length |
19 inch |
| Muffler configuration | Centered / Centered |
| Muffler shape | OVAL |
| Muffler body height | 4 inch |
| Muffler body width | 9 inch |
The other specification of muffler. Materials can be aluminized steel and stainless steel as request.
| MUFFLER SHAPE: Oval muffler. | ||||
| MODEL | SIZE | BODY LENGTH | TOTAL LENGTH | DESCRIPTATION |
| YPMOF-C225 | 4"X9" | 22" | 28" | OFFSET2.25"/CENTER 2.25" |
| YPMOF-C300 | 4"X9" | 22" | 28" | OFFSET3"/CETNER 3" |
| YPMOF-C250 | 4"X9" | 22" | 28" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C250 | 5"X8" | 24" | 30" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C300 | 5"X8" | 24" | 30" | OFFSET3"/CENTER 3" |
| YPMOF-C225 | 4"X9" | 14" | 20" | OFFSET2.25"/CENTER 3" |
| YPMOF-C250 | 4"X9" | 14" | 20" | OFFSET2.5"/CENTER 2.5 |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF200 | 4"X9" | 14" | 20" | OFFSET2"/OFFSET2" |
| YPMOF-OF225 | 4"X9" | 14" | 20" | OFFSEST2.25"/OFFSET2.25" |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF225 | 5"X8" | 18" | 24"" | OFFSET2.25"/OFFSET2.25 |
| YPMOF-OF250 | 5"X8" | 18" | 24" | OFFSET2.5"/OFFSET2.25" |
| YPMOF-OF300 | 5"X11" | 22" | 28" | OFFSET3"/OFFSET3" |
| YPMC-DUAL225 | 5"X11" | 22" | 28" | CENTER2.25"/DUAL2.25" |
| YPMC-DUAL250 | 5"X11" | 22" | 28" | CENTER2.5"/DUAL2.5" |
| YPMC-DUAL300 | 5"X11" | 22" | 28" | CENTER3"/DUAL3" |
| Inlet | Outlet | Muffler shape | muffler diameter | Body length | Total length |
| 2" | 2" | Round | 4" | 14" | 20" |
| 2.25" | 2.25" | Round | 4" | 14" | 20" |
| 2.5 | 2.5" | Round | 4" | 14" | 20" |
| 2.75" | 2.75" | Round | 4" | 14" | 20" |
| 3" | 3" | Round | 4" | 14" | 20" |
| 2" | 2" | Round | 6" | 24" | 30" |
| 2.5" | 2.5 | Round | 6" | 24" | 30" |
| 3" | 3" | Round | 6" | 24" | 30" |
| 3.5" | 3.5" | Round | 6" | 24" | 30"" |
| 4" | 4" | Round | 6" | 24" | 30" |
| 4.5" | 4.5" | Round | 6" | 24" | 30" |
| 5" | 5: | Round | 6" | 24" | 30" |
| 2" | 2" | Round | 6" | 14" | 20" |
| 2.5" | 2.5" | Round | 6" | 14" | 20" |
| 3" | 3" | Round | 6" | 14" | 20" |
| 3.5" | 3.5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 6" | 14" | 20" |
| 4.5" | 4.5" | Round | 6" | 14" | 20" |
| 5" | 5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 24" | 30" |
| 4" | 4" | Round | 8" | 24" | 30" |
| 5" | 5" | Round | 8" | 24" | 30" |
Remark: Custom design and dimension are accepatable
Our Warehouse of performance muffler
