Direct Fit Performance Stainless Steel 409 Universal Exhaust Muffler
stainless steel 409 universal exhaust muffler
,stainless steel 409 universal performance muffler
,direct fit ss universal exhaust muffler

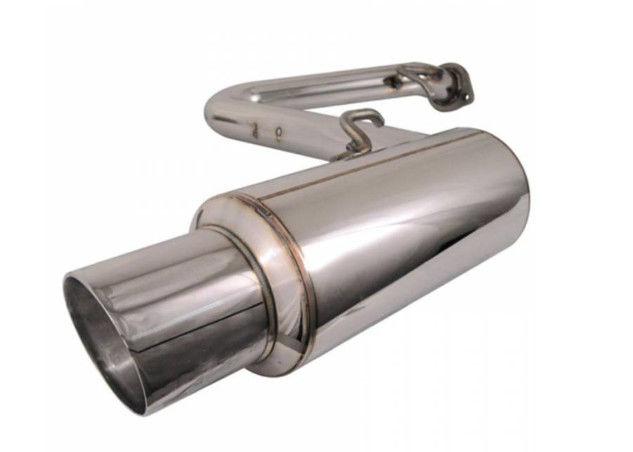

Direct Fit Stainless Steel Performance Exhaust Muffler
Full 60MM piping made from premium 304 SS Mandrel-Bent Tubing
Features Injen's JDM Style round muffler to deliver a clean, crisp, distinctively Injen sound
Beautiful 4.5” polished exhaust tip
Stainless Steel Investment Cast Flange for a Fast and Easy Install
Hand Crafted and TIG Welded to Perfection for Strength and Durability
Premium Stainless Steel Hardware and Hangers for a simple install
No Cutting or Welding Required
If you're looking to improve sound, power, and looks then this is the system for you!
Relative product: Universal muffler
|
Product: |
2.5" Inlet 4" Outlet Burnt Exhaust Tip Muffler Stainless Steel Universal 18.6" Length |
| Material |
Stainless steel 409, two layers of stainless steel |
|
Installation
|
it would fit .-and easy to install,bolts on in minutes.You can choose Butt joint,Lap joint,or muffler seal clamp ,U bolt clamp. |
| Surface treatment |
Polished or burnt |
|
Body length |
18.6 inches |
| Inlet diameter |
2.5 inch |
| Outlet diameter |
4.0 inch |
| Muffler type |
Straight-through |
| Overall Length |
20 inch |
| Fitment |
Hot Rod, Car, Off-Road toy, Truck or SUV |
Not limited to universal muffler we also produce oval shape muffler in stainless steel and aluminized steel.
- Standard oval muffler in straight through muffler and charmbered muffler at 4" x 9" , 5" x 8", and 5" x 11". Particular dimension can be supplied as request, but there was minimum order quantity.
| MUFFLER SHAPE: Oval muffler. | ||||
| MODEL | SIZE | BODY LENGTH | TOTAL LENGTH | DESCRIPTATION |
| YPMOF-C225 | 4"X9" | 22" | 28" | OFFSET2.25"/CENTER 2.25" |
| YPMOF-C300 | 4"X9" | 22" | 28" | OFFSET3"/CETNER 3" |
| YPMOF-C250 | 4"X9" | 22" | 28" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C250 | 5"X8" | 24" | 30" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C300 | 5"X8" | 24" | 30" | OFFSET3"/CENTER 3" |
| YPMOF-C225 | 4"X9" | 14" | 20" | OFFSET2.25"/CENTER 3" |
| YPMOF-C250 | 4"X9" | 14" | 20" | OFFSET2.5"/CENTER 2.5 |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF200 | 4"X9" | 14" | 20" | OFFSET2"/OFFSET2" |
| YPMOF-OF225 | 4"X9" | 14" | 20" | OFFSEST2.25"/OFFSET2.25" |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF225 | 5"X8" | 18" | 24"" | OFFSET2.25"/OFFSET2.25 |
| YPMOF-OF250 | 5"X8" | 18" | 24" | OFFSET2.5"/OFFSET2.25" |
| YPMOF-OF300 | 5"X11" | 22" | 28" | OFFSET3"/OFFSET3" |
| YPMC-DUAL225 | 5"X11" | 22" | 28" | CENTER2.25"/DUAL2.25" |
| YPMC-DUAL250 | 5"X11" | 22" | 28" | CENTER2.5"/DUAL2.5" |
| YPMC-DUAL300 | 5"X11" | 22" | 28" | CENTER3"/DUAL3" |
- Stainless steel 409 round muffler in diameter 6 inch, 7 inch, and 8 inch.
| Inlet | Outlet | Muffler shape | muffler diameter | Body length | Total length |
| 2" | 2" | Round | 4" | 14" | 20" |
| 2.25" | 2.25" | Round | 4" | 14" | 20" |
| 2.5 | 2.5" | Round | 4" | 14" | 20" |
| 2.75" | 2.75" | Round | 4" | 14" | 20" |
| 3" | 3" | Round | 4" | 14" | 20" |
| 2" | 2" | Round | 6" | 24" | 30" |
| 2.5" | 2.5 | Round | 6" | 24" | 30" |
| 3" | 3" | Round | 6" | 24" | 30" |
| 3.5" | 3.5" | Round | 6" | 24" | 30"" |
| 4" | 4" | Round | 6" | 24" | 30" |
| 4.5" | 4.5" | Round | 6" | 24" | 30" |
| 5" | 5: | Round | 6" | 24" | 30" |
| 2" | 2" | Round | 6" | 14" | 20" |
| 2.5" | 2.5" | Round | 6" | 14" | 20" |
| 3" | 3" | Round | 6" | 14" | 20" |
| 3.5" | 3.5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 6" | 14" | 20" |
| 4.5" | 4.5" | Round | 6" | 14" | 20" |
| 5" | 5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 24" | 30" |
| 4" | 4" | Round | 8" | 24" | 30" |
| 5" | 5" | Round | 8" | 24" | 30" |
Remark: Custom design and dimension are accepatable
