Product Details:
|
| Product: | 409 S Stainless Steel Chambered Muffler 2.50 In. IN/OUT Aggressive Sound | Material: | 409S Stainless Steel |
|---|---|---|---|
| Surface Treatment: | Anti-heat Black Painted | Type: | Chambeed Muffler |
| Configuration: | Offset/offset, Center/dual | Inlet Diamter: | 2.5" |
| Outlet Diameter: | 2.5" | Sound Level: | Aggressive Sound |
| Overall Length: | 18" | Shape: | Oval Shape |
| High Light: | 16ga stainless steel exhaust muffler,409s stainless steel exhaust muffler,409s single chamber muffler |
||

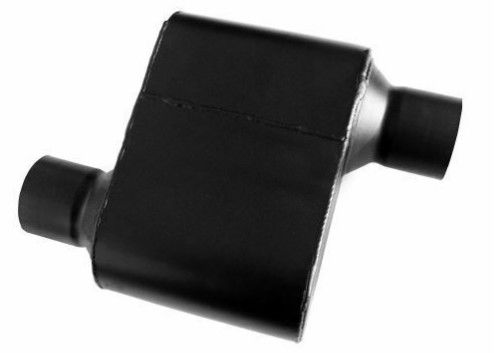

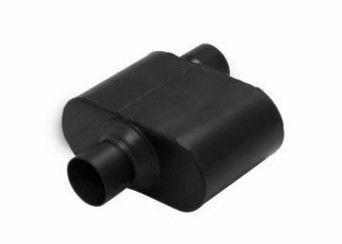

16GA 409S Stainless Steel Single Charmber Muffler-Aggressive Sound
Product Description of charmbered muffler
409S stainless steel single chamber mufflers are intended for customers who desire the loudest and most aggressive sound they can find. Because these mufflers are so aggressive, they are recommended only for off highway use and not for street driven vehicles. These mufflers constructed of 16-gauge 409S stainless steel and fully MIG-welded for maximum durability, deliver maximum performance.
Short introduction
|
Product:
|
16GA 409S Stainless Steel Single Charmber Muffler-Aggressive Sound |
| Material |
16GA 409 S stainless steel
|
| Construction |
offset/offset, center/dual
|
| Body finished |
Anti-heat black painted
|
| Body Dimension |
4 inch x 9.5 inch ( other choice: 5" x 8", 5" x 11")
|
| Inlet diameter |
2.5inch
|
| Outlet diameter |
2.5 inch
|
| Muffler type |
Single Chamber
|
| Body Length |
6.5 inch
|
| Fitment |
They are recommended only for off highway use and not for street driven vehicles |
Specification of charmbered muffler
We supply standard oval muffler in straight through muffler and charmbered muffler at 4" x 9" , 5" x 8", and 5" x 11". Particular dimension can be supplied as request, but there was minimum order quantity.
| MUFFLER SHAPE: Oval shaped muffler | ||||
| MODEL | SIZE | BODY LENGTH | TOTAL LENGTH | DESCRIPTATION |
| YPMOF-C225 | 4"X9" | 22" | 28" | OFFSET2.25"/CENTER 2.25" |
| YPMOF-C300 | 4"X9" | 22" | 28" | OFFSET3"/CETNER 3" |
| YPMOF-C250 | 4"X9" | 22" | 28" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C250 | 5"X8" | 24" | 30" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C300 | 5"X8" | 24" | 30" | OFFSET3"/CENTER 3" |
| YPMOF-C225 | 4"X9" | 14" | 20" | OFFSET2.25"/CENTER 3" |
| YPMOF-C250 | 4"X9" | 14" | 20" | OFFSET2.5"/CENTER 2.5 |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF200 | 4"X9" | 14" | 20" | OFFSET2"/OFFSET2" |
| YPMOF-OF225 | 4"X9" | 14" | 20" | OFFSEST2.25"/OFFSET2.25" |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF225 | 5"X8" | 18" | 24"" | OFFSET2.25"/OFFSET2.25 |
| YPMOF-OF250 | 5"X8" | 18" | 24" | OFFSET2.5"/OFFSET2.25" |
| YPMOF-OF300 | 5"X11" | 22" | 28" | OFFSET3"/OFFSET3" |
| YPMC-DUAL225 | 5"X11" | 22" | 28" | CENTER2.25"/DUAL2.25" |
| YPMC-DUAL250 | 5"X11" | 22" | 28" | CENTER2.5"/DUAL2.5" |
| YPMC-DUAL300 | 5"X11" | 22" | 28" | CENTER3"/DUAL3" |
Warehouse of muffler
Not limited to oval stainless steel and aluminized steel muffler, we also produce and supply round alumininized performance muffler and stainless steel performance muffler at followed sizes.
Specification of round muffler
| Inlet | Outlet | Muffler shape | muffler diameter | Body length | Total length |
| 2" | 2" | Round | 4" | 14" | 20" |
| 2.25" | 2.25" | Round | 4" | 14" | 20" |
| 2.5 | 2.5" | Round | 4" | 14" | 20" |
| 2.75" | 2.75" | Round | 4" | 14" | 20" |
| 3" | 3" | Round | 4" | 14" | 20" |
| 2" | 2" | Round | 6" | 24" | 30" |
| 2.5" | 2.5 | Round | 6" | 24" | 30" |
| 3" | 3" | Round | 6" | 24" | 30" |
| 3.5" | 3.5" | Round | 6" | 24" | 30"" |
| 4" | 4" | Round | 6" | 24" | 30" |
| 4.5" | 4.5" | Round | 6" | 24" | 30" |
| 5" | 5: | Round | 6" | 24" | 30" |
| 2" | 2" | Round | 6" | 14" | 20" |
| 2.5" | 2.5" | Round | 6" | 14" | 20" |
| 3" | 3" | Round | 6" | 14" | 20" |
| 3.5" | 3.5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 6" | 14" | 20" |
| 4.5" | 4.5" | Round | 6" | 14" | 20" |
| 5" | 5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 24" | 30" |
| 4" | 4" | Round | 8" | 24" | 30" |
| 5" | 5" | Round | 8" | 24" | 30" |
Remark: Custom design and dimension are accepatable
