Product Details:
|
| Product: | 3" Inlet Outlet Universal Performance Exhaust Mufflers Stainless Steel | Material: | 409 Stainless Steel |
|---|---|---|---|
| Surface Treatment: | Satin | Type: | Straight Through |
| Configuration: | Center/center | Inlet Diamter: | 3.0" |
| Outlet Diameter: | 3.0" | Case Dimension: | 4.0" |
| Overall Length: | 14.0" | Shape: | Round Muffler |
| High Light: | inlet outlet 3 inch stainless steel muffler,odm stainless steel exhaust muffler,stainless steel exhaust muffler odm |
||

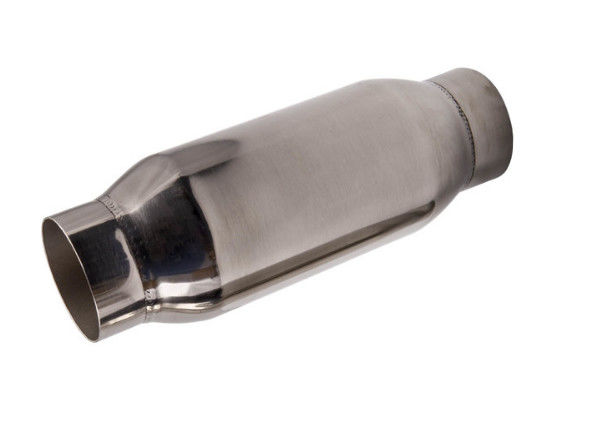

3" Inlet Outlet Universal Performance Exhaust Mufflers Stainless Steel
Introduction:
The Exhaust Silencer plays a very crucial role to muffle the noise coming from the blasts inside a combustion engine. It is also used to cleanse the exhaust gases with the help of a catalytic converter.
| Product: |
3" Inlet Outlet Universal Performance Exhaust Mufflers Stainless Steel
|
| Material |
409 stainless steel
|
| Construction |
center/center
|
|
Shape:
|
Round muffler |
| Body finished |
Satin
|
| Body Dimension |
4.0 inch
|
| Inlet diameter |
3.0 inch
|
| Outlet diameter |
3.0 inch
|
| Muffler type |
straight through
|
| Overall Length |
14 inch
|
| Fitment |
Universal muffler |
Sizes of round muffler:
| Inlet | Outlet | Muffler shape | muffler diameter | Body length | Total length |
| 2" | 2" | Round | 4" | 14" | 20" |
| 2.25" | 2.25" | Round | 4" | 14" | 20" |
| 2.5 | 2.5" | Round | 4" | 14" | 20" |
| 2.75" | 2.75" | Round | 4" | 14" | 20" |
| 3" | 3" | Round | 4" | 14" | 20" |
| 2" | 2" | Round | 6" | 24" | 30" |
| 2.5" | 2.5 | Round | 6" | 24" | 30" |
| 3" | 3" | Round | 6" | 24" | 30" |
| 3.5" | 3.5" | Round | 6" | 24" | 30"" |
| 4" | 4" | Round | 6" | 24" | 30" |
| 4.5" | 4.5" | Round | 6" | 24" | 30" |
| 5" | 5: | Round | 6" | 24" | 30" |
| 2" | 2" | Round | 6" | 14" | 20" |
| 2.5" | 2.5" | Round | 6" | 14" | 20" |
| 3" | 3" | Round | 6" | 14" | 20" |
| 3.5" | 3.5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 6" | 14" | 20" |
| 4.5" | 4.5" | Round | 6" | 14" | 20" |
| 5" | 5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 24" | 30" |
| 4" | 4" | Round | 8" | 24" | 30" |
| 5" | 5" | Round | 8" | 24" | 30" |
Remark: Custom design and dimension are accepatable
Specification of oval muffler
We supply standard oval muffler in straight through muffler and charmbered muffler at 4" x 9" , 5" x 8", and 5" x 11". Particular dimension can be supplied as request, but there was minimum order quantity.
| MUFFLER SHAPE: Oval shaped muffler. | ||||
| MODEL | SIZE | BODY LENGTH | TOTAL LENGTH | DESCRIPTATION |
| YPMOF-C225 | 4"X9" | 22" | 28" | OFFSET2.25"/CENTER 2.25" |
| YPMOF-C300 | 4"X9" | 22" | 28" | OFFSET3"/CETNER 3" |
| YPMOF-C250 | 4"X9" | 22" | 28" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C250 | 5"X8" | 24" | 30" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C300 | 5"X8" | 24" | 30" | OFFSET3"/CENTER 3" |
| YPMOF-C225 | 4"X9" | 14" | 20" | OFFSET2.25"/CENTER 3" |
| YPMOF-C250 | 4"X9" | 14" | 20" | OFFSET2.5"/CENTER 2.5 |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF200 | 4"X9" | 14" | 20" | OFFSET2"/OFFSET2" |
| YPMOF-OF225 | 4"X9" | 14" | 20" | OFFSEST2.25"/OFFSET2.25" |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF225 | 5"X8" | 18" | 24"" | OFFSET2.25"/OFFSET2.25 |
| YPMOF-OF250 | 5"X8" | 18" | 24" | OFFSET2.5"/OFFSET2.25" |
| YPMOF-OF300 | 5"X11" | 22" | 28" | OFFSET3"/OFFSET3" |
| YPMC-DUAL225 | 5"X11" | 22" | 28" | CENTER2.25"/DUAL2.25" |
| YPMC-DUAL250 | 5"X11" | 22" | 28" | CENTER2.5"/DUAL2.5" |
| YPMC-DUAL300 | 5"X11" | 22" | 28" | CENTER3"/DUAL3" |

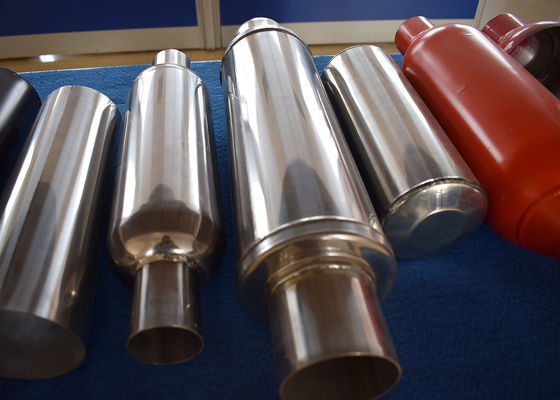

Warehouse of muffler
Not limited to oval stainless steel and aluminized steel muffler, we also produce and supply round alumininized performance muffler and stainless steel performance muffler at followed sizes.
