Product Details:
|
| Product: | 409 S Stainless Steel Chambered Muffler 2.50 In. IN/OUT Aggressive Sound | Material: | 409S Stainless Steel |
|---|---|---|---|
| Surface Treatment: | Anti-heat Black Painted | Type: | Chambeed Muffler |
| Configuration: | Offset/offset, Center/dual | Inlet Diamter: | 2.5" |
| Outlet Diameter: | 2.5" | Sound Level: | Aggressive Sound |
| Overall Length: | 18" | Shape: | Oval Shape |
| Highlight: | 409 round chambered muffler,2.50 inch round chambered muffler,2.50 inch chambered muffler |
||

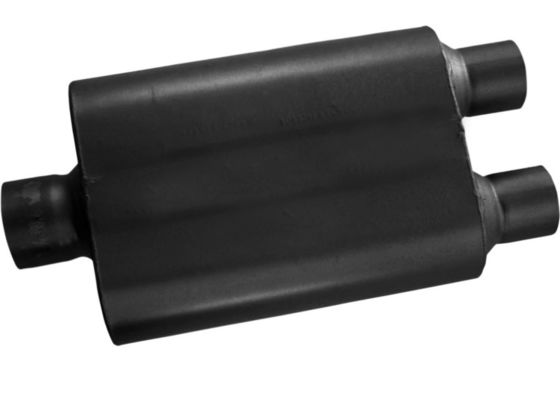

Black Painted Aluminized Steel 2-Chamber Mufflers 3.00 Center Inlet / 2.50 Dual Outlet
Product Description of charmbered muffler
This charbered muffler delivers a powerful rich tone and is the most aggressive, deepest sounding, highest performing four inch case street muffle. Constructed of 16 gauge 409s stainless steel or aluminized steel and fully MIG welded for maximum durability.
Short introduction
|
Product:
|
409 S Stainless Steel Chambered Muffler 2.50 In. IN/OUT Aggressive Sound |
| Material |
16GA 409 S stainless steel
|
| Construction |
offset/offset, center/dual
|
| Body finished |
Anti-heat black painted
|
| Body Dimension |
4 inch x 9 inch ( other choice: 5" x 8", 5" x 11")
|
| Inlet diameter |
2.5inch
|
| Outlet diameter |
2.5 inch
|
| Muffler type |
Chambered
|
| Overall Length |
18 inch
|
| Fitment |
Many classic car enthusiasts choose chambered mufflers for classic muscle car applications to achieve a specific exhaust note. |
Specification of charmbered muffler
We supply standard oval muffler in straight through muffler and charmbered muffler at 4" x 9" , 5" x 8", and 5" x 11". Particular dimension can be supplied as request, but there was minimum order quantity.
| MUFFLER SHAPE: Oval shaped muffler. | ||||
| MODEL | SIZE | BODY LENGTH | TOTAL LENGTH | DESCRIPTATION |
| YPMOF-C225 | 4"X9" | 22" | 28" | OFFSET2.25"/CENTER 2.25" |
| YPMOF-C300 | 4"X9" | 22" | 28" | OFFSET3"/CETNER 3" |
| YPMOF-C250 | 4"X9" | 22" | 28" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C250 | 5"X8" | 24" | 30" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C300 | 5"X8" | 24" | 30" | OFFSET3"/CENTER 3" |
| YPMOF-C225 | 4"X9" | 14" | 20" | OFFSET2.25"/CENTER 3" |
| YPMOF-C250 | 4"X9" | 14" | 20" | OFFSET2.5"/CENTER 2.5 |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF200 | 4"X9" | 14" | 20" | OFFSET2"/OFFSET2" |
| YPMOF-OF225 | 4"X9" | 14" | 20" | OFFSEST2.25"/OFFSET2.25" |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF225 | 5"X8" | 18" | 24"" | OFFSET2.25"/OFFSET2.25 |
| YPMOF-OF250 | 5"X8" | 18" | 24" | OFFSET2.5"/OFFSET2.25" |
| YPMOF-OF300 | 5"X11" | 22" | 28" | OFFSET3"/OFFSET3" |
| YPMC-DUAL225 | 5"X11" | 22" | 28" | CENTER2.25"/DUAL2.25" |
| YPMC-DUAL250 | 5"X11" | 22" | 28" | CENTER2.5"/DUAL2.5" |
| YPMC-DUAL300 | 5"X11" | 22" | 28" | CENTER3"/DUAL3" |
Warehouse of muffler
Not limited to oval stainless steel and aluminized steel muffler, we also produce and supply round alumininized performance muffler and stainless steel performance muffler at followed sizes.
Specification of round muffler
| Inlet | Outlet | Muffler shape | muffler diameter | Body length | Total length |
| 2" | 2" | Round | 4" | 14" | 20" |
| 2.25" | 2.25" | Round | 4" | 14" | 20" |
| 2.5 | 2.5" | Round | 4" | 14" | 20" |
| 2.75" | 2.75" | Round | 4" | 14" | 20" |
| 3" | 3" | Round | 4" | 14" | 20" |
| 2" | 2" | Round | 6" | 24" | 30" |
| 2.5" | 2.5 | Round | 6" | 24" | 30" |
| 3" | 3" | Round | 6" | 24" | 30" |
| 3.5" | 3.5" | Round | 6" | 24" | 30"" |
| 4" | 4" | Round | 6" | 24" | 30" |
| 4.5" | 4.5" | Round | 6" | 24" | 30" |
| 5" | 5: | Round | 6" | 24" | 30" |
| 2" | 2" | Round | 6" | 14" | 20" |
| 2.5" | 2.5" | Round | 6" | 14" | 20" |
| 3" | 3" | Round | 6" | 14" | 20" |
| 3.5" | 3.5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 6" | 14" | 20" |
| 4.5" | 4.5" | Round | 6" | 14" | 20" |
| 5" | 5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 24" | 30" |
| 4" | 4" | Round | 8" | 24" | 30" |
| 5" | 5" | Round | 8" | 24" | 30" |
Remark: Custom design and dimension are accepatable
