Product Details:
|
| Product: | Polished Stainless Steel Exhaust Muffler Oval Shape Center/dual Configuration 2.25 Outlet | Material: | 409 Stainless Steel |
|---|---|---|---|
| Surface Treatment: | Satin | Type: | Straight Through Or Charmbered |
| Configuration: | Center/dual | Inlet Diamter: | 3.0" |
| Outlet Diameter: | 2.25" | Case Dimension: | 4" X 9" |
| Overall Length: | 18.0" | Shape: | Oval Exhaust Muffler |
| High Light: | polished stainless steel muffler tips,2.25 outlet stainless steel muffler tips,outlet 2.25 inch stainless steel muffler |
||

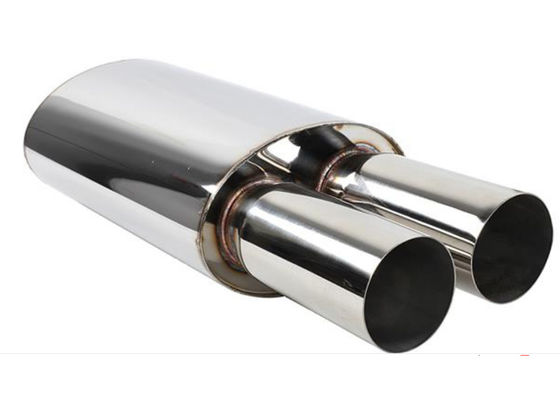

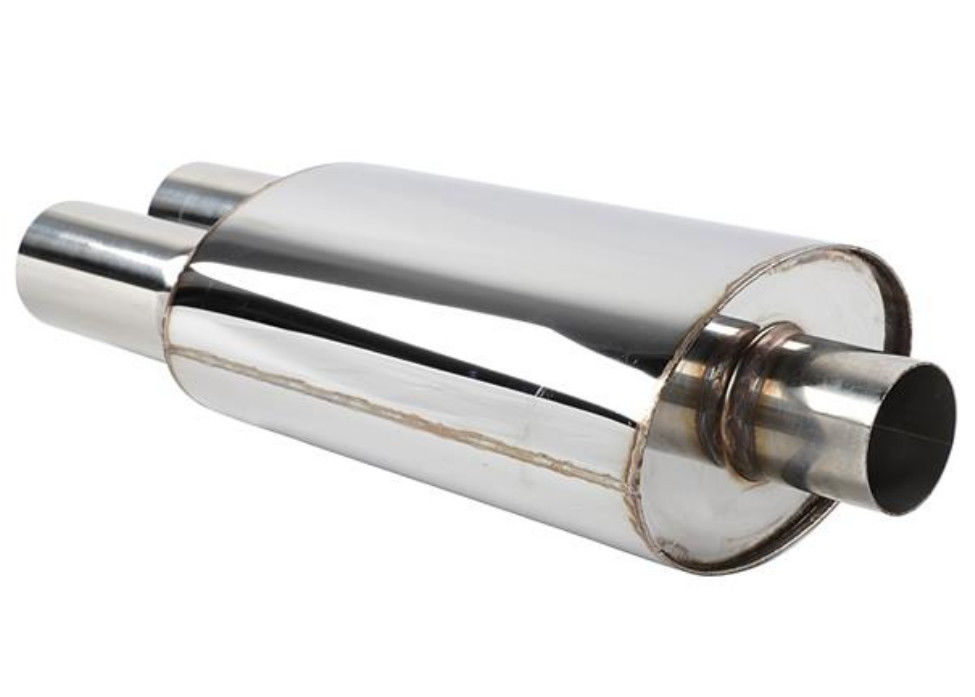

Polished stainless steel exhaust muffler oval shape center/dual configuration 2.25 outlet
Introduction of exhaust muffler
Polished Stainless Steel Exhaust Muffler made of high quality material, it is practical and durable for long term use. Produced by the sophisticated technology and fine workmanship.
| Product: |
Polished stainless steel exhaust muffler oval shape center/dual configuration 2.25 outlet
|
| Material |
409 stainless steel
|
| Construction |
center/dual
|
|
Shape: |
oval muffler |
| Body finished |
Satin
|
| Body Dimension |
4 inch by 9 inch
|
| Inlet diameter |
3.0 inch
|
| Outlet diameter |
2.25 inch
|
| Muffler type |
straight through or charmbered
|
| Overall Length |
18 inch
|
| Fitment |
Universal muffler |
Difference between chambered muffler and straight-trough muffler
The chambered mufflers create an aggressive exhaust note giving a powerful voice to your car/truck/SUV. The mufflers are constructed of 16-gauge aluminized steel and are 100% MIG welded for maximum strength and durability. The chambered design cancels out unwanted frequencies with no packing producing an aggressive exhaust note that will not change with time. Our mufflers are coated with high heat resistant silver paint for an aggressive look under your car.
Specification of oval muffler
We supply standard oval muffler in straight through muffler and charmbered muffler at 4" x 9" , 5" x 8", and 5" x 11". Particular dimension can be supplied as request, but there was minimum order quantity.
| MUFFLER SHAPE: Oval shaped muffler. | ||||
| MODEL | SIZE | BODY LENGTH | TOTAL LENGTH | DESCRIPTATION |
| YPMOF-C225 | 4"X9" | 22" | 28" | OFFSET2.25"/CENTER 2.25" |
| YPMOF-C300 | 4"X9" | 22" | 28" | OFFSET3"/CETNER 3" |
| YPMOF-C250 | 4"X9" | 22" | 28" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C250 | 5"X8" | 24" | 30" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C300 | 5"X8" | 24" | 30" | OFFSET3"/CENTER 3" |
| YPMOF-C225 | 4"X9" | 14" | 20" | OFFSET2.25"/CENTER 3" |
| YPMOF-C250 | 4"X9" | 14" | 20" | OFFSET2.5"/CENTER 2.5 |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF200 | 4"X9" | 14" | 20" | OFFSET2"/OFFSET2" |
| YPMOF-OF225 | 4"X9" | 14" | 20" | OFFSEST2.25"/OFFSET2.25" |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF225 | 5"X8" | 18" | 24"" | OFFSET2.25"/OFFSET2.25 |
| YPMOF-OF250 | 5"X8" | 18" | 24" | OFFSET2.5"/OFFSET2.25" |
| YPMOF-OF300 | 5"X11" | 22" | 28" | OFFSET3"/OFFSET3" |
| YPMC-DUAL225 | 5"X11" | 22" | 28" | CENTER2.25"/DUAL2.25" |
| YPMC-DUAL250 | 5"X11" | 22" | 28" | CENTER2.5"/DUAL2.5" |
| YPMC-DUAL300 | 5"X11" | 22" | 28" | CENTER3"/DUAL3" |
Sizes of round muffler:
| Inlet | Outlet | Muffler shape | muffler diameter | Body length | Total length |
| 2" | 2" | Round | 4" | 14" | 20" |
| 2.25" | 2.25" | Round | 4" | 14" | 20" |
| 2.5 | 2.5" | Round | 4" | 14" | 20" |
| 2.75" | 2.75" | Round | 4" | 14" | 20" |
| 3" | 3" | Round | 4" | 14" | 20" |
| 2" | 2" | Round | 6" | 24" | 30" |
| 2.5" | 2.5 | Round | 6" | 24" | 30" |
| 3" | 3" | Round | 6" | 24" | 30" |
| 3.5" | 3.5" | Round | 6" | 24" | 30"" |
| 4" | 4" | Round | 6" | 24" | 30" |
| 4.5" | 4.5" | Round | 6" | 24" | 30" |
| 5" | 5: | Round | 6" | 24" | 30" |
| 2" | 2" | Round | 6" | 14" | 20" |
| 2.5" | 2.5" | Round | 6" | 14" | 20" |
| 3" | 3" | Round | 6" | 14" | 20" |
| 3.5" | 3.5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 6" | 14" | 20" |
| 4.5" | 4.5" | Round | 6" | 14" | 20" |
| 5" | 5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 24" | 30" |
| 4" | 4" | Round | 8" | 24" | 30" |
| 5" | 5" | Round | 8" | 24" | 30" |
Remark: Custom design and dimension are accepatable
Warehouse of muffler
Not limited to oval stainless steel and aluminized steel muffler, we also produce and supply round alumininized performance muffler and stainless steel performance muffler at followed sizes.
