Product Details:
|
| Product: | 5" X 8" Oval Center/Dual Straight Through Performance Muffler | Material: | Stainless Steel 409 |
|---|---|---|---|
| Surface Treatment: | Satin | Configuration: | Center/dual |
| Inlet Diamter: | 3 Inch | Outlet Diameter: | 2.25 Inch |
| Body Length: | 18" | Overall Length: | 24" |
| Body Dimension: | 5" X 8" | Shape: | Oval Shape |
| High Light: | 5x8 quietest straight through muffler,5 x 8 quietest straight through muffler,5 straight through muffler |
||
Stainless Steel 5" X 8" Oval Center/Dual Straight Through Performance Muffler
Product Description of oval straight through performance muffler
Constructed of premium materials and carefully designed for the best fitment and performance. Fully reversible and featuring a free-flowing, straight-through perforated stainless steel core, stainless mesh wraps our acoustic fiber fill to deliver a smooth, deep tone for your custom exhaust project. Aluminized muffler can be supplied as request.
Short introduction
| Name |
5" X 8" Oval Center/Dual Straight Through Performance Muffler
|
| Material |
Stainless Steel 409, stainless steel 304 and aluminized muffler are available as request
|
| Construction |
Center/dual ( alterative: center/center, center/offset, offset/offset )
|
| Body finished |
Satin
|
| Body Dimension |
5 inch x 8inch ( other choice: 4" x 9", 5" x 11")
|
| Inlet diameter |
3 inch
|
| Outlet diameter |
2.25 inch
|
| Muffler Body Length |
18 inch
|
| Overall Length |
26 inch
|
| Fitment |
SS mufflers are available for most domestic and import vehicles.(Ford, Audi, Volkswagen, Benz, BMW , Chevrolet, etc.) |
Advantage of stainless steel straight through performance muffler
1.Featured 100% stainless-steel heads, shell, bushings, louvered tubes and partitions
2.SS mufflers and muffler assemblies deliver a precision fit, superior flow and OE-style sound.
3.Rust-proof better than aluminized muffler, longer life.
Specification of stainless steel oval muffer
We supply standard oval muffler at 4" x 9" , 5" x 8", and 5" x 11". Particular dimension can be supplied as request, but there was minimum order quantity.
| MUFFLER SHAPE: Oval shaped muffler. | ||||
| MODEL | SIZE | BODY LENGTH | TOTAL LENGTH | DESCRIPTATION |
| YPMOF-C225 | 4"X9" | 22" | 28" | OFFSET2.25"/CENTER 2.25" |
| YPMOF-C300 | 4"X9" | 22" | 28" | OFFSET3"/CETNER 3" |
| YPMOF-C250 | 4"X9" | 22" | 28" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C250 | 5"X8" | 24" | 30" | OFFSET2.5"/CENTER 2.5" |
| YPMOF-C300 | 5"X8" | 24" | 30" | OFFSET3"/CENTER 3" |
| YPMOF-C225 | 4"X9" | 14" | 20" | OFFSET2.25"/CENTER 3" |
| YPMOF-C250 | 4"X9" | 14" | 20" | OFFSET2.5"/CENTER 2.5 |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF200 | 4"X9" | 14" | 20" | OFFSET2"/OFFSET2" |
| YPMOF-OF225 | 4"X9" | 14" | 20" | OFFSEST2.25"/OFFSET2.25" |
| YPMOF-OF300 | 4"X9" | 14" | 20" | OFFSET3"/OFFSET3" |
| YPMOF-OF225 | 5"X8" | 18" | 24"" | OFFSET2.25"/OFFSET2.25 |
| YPMOF-OF250 | 5"X8" | 18" | 24" | OFFSET2.5"/OFFSET2.25" |
| YPMOF-OF300 | 5"X11" | 22" | 28" | OFFSET3"/OFFSET3" |
| YPMC-DUAL225 | 5"X11" | 22" | 28" | CENTER2.25"/DUAL2.25" |
| YPMC-DUAL250 | 5"X11" | 22" | 28" | CENTER2.5"/DUAL2.5" |
| YPMC-DUAL300 | 5"X11" | 22" | 28" | CENTER3"/DUAL3" |

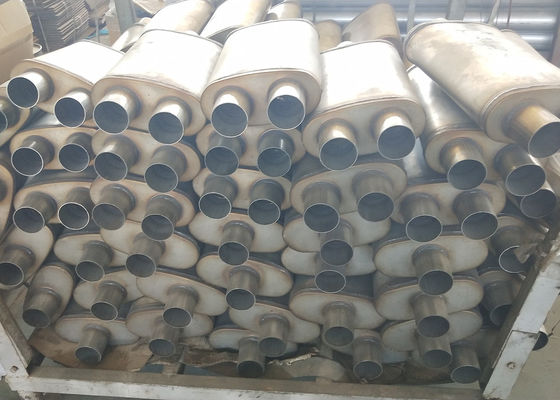

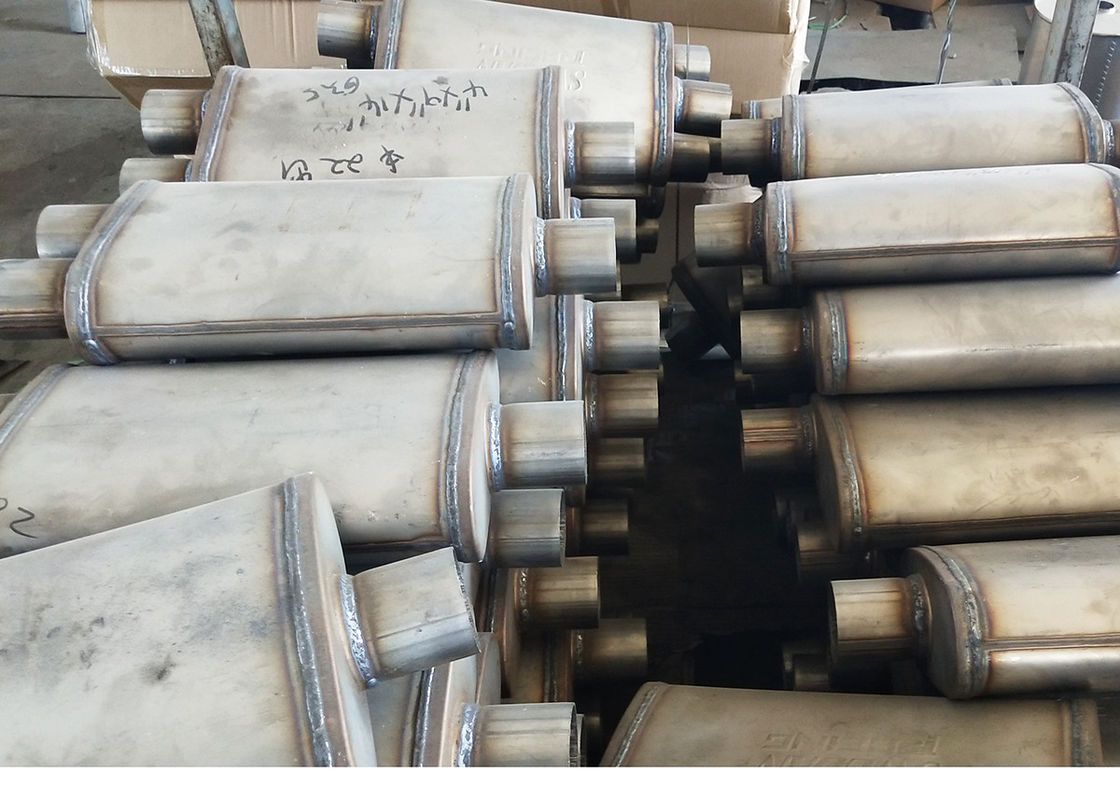

Warehouse of performance muffler
Not only oval stainless steel center-dual muffler, we also produce and supply round alumininized performance muffler and stainless steel performance muffler at followed sizes.
Specification of round muffler
| Inlet | Outlet | Muffler shape | muffler diameter | Body length | Total length |
| 2" | 2" | Round | 4" | 14" | 20" |
| 2.25" | 2.25" | Round | 4" | 14" | 20" |
| 2.5 | 2.5" | Round | 4" | 14" | 20" |
| 2.75" | 2.75" | Round | 4" | 14" | 20" |
| 3" | 3" | Round | 4" | 14" | 20" |
| 2" | 2" | Round | 6" | 24" | 30" |
| 2.5" | 2.5 | Round | 6" | 24" | 30" |
| 3" | 3" | Round | 6" | 24" | 30" |
| 3.5" | 3.5" | Round | 6" | 24" | 30"" |
| 4" | 4" | Round | 6" | 24" | 30" |
| 4.5" | 4.5" | Round | 6" | 24" | 30" |
| 5" | 5: | Round | 6" | 24" | 30" |
| 2" | 2" | Round | 6" | 14" | 20" |
| 2.5" | 2.5" | Round | 6" | 14" | 20" |
| 3" | 3" | Round | 6" | 14" | 20" |
| 3.5" | 3.5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 6" | 14" | 20" |
| 4.5" | 4.5" | Round | 6" | 14" | 20" |
| 5" | 5" | Round | 6" | 14" | 20" |
| 4" | 4" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 20" | 26" |
| 5" | 5" | Round | 7" | 24" | 30" |
| 4" | 4" | Round | 8" | 24" | 30" |
| 5" | 5" | Round | 8" | 24" | 30" |
Remark: Custom design and dimension are accepatable
