Stainless Steel Metric ID38mm Flexible Car Exhaust Pipe

Stainless Steel Metric ID38mm Flexible Car Exhaust Pipe

ID38mm flexible car exhaust pipe

Metric flexible car exhaust pipe

ID38mm flex pipe for car exhaust

Place of Origin:

China

CONTACT US
Request A Quote
Product Details
Product Name:
Stainless Steel Flexible Joint Flex Bellows Auto Exhaust Muffler Flex Pipe
Tube Materials:
Stainless Steel 201 / 202 / 304 / 409
Inside Diameter:
1-1/2", 1-3/4, 2", 2-1/4", 2-1/2", 3", 4" Or Oem Size
Metric ID:
38mm, 45mm, 51mm 63.5mm, 57mm 89mm 102mm Etc.
Body Lengh:
4" 6" 8" 10" Or As Customer's Request
Joint Cap Materials:
Stainless Steel Or Aluminized Steel
Structure:
Bellow Tube + Internal Wire Braid + External Wire Braid + Extension Tube
Application:
Truck, Bus, Off-road, Frieght Liner Etc
Feature:
High Flexibitlity And No Smuggling
Package:
Plastic Bag + Carton + Woven Bag
Payment & Shipping Terms
Minimum Order Quantity
100
Price
USD1.8~1.9 PER PIECE
Packaging Details
Film bag + carton
Delivery Time
5-8 days if stocks available
Payment Terms
L/C T/T WESTERN UNION MONEYGRAM
Supply Ability
10000 Pieces Per Month
Product Description

Stainless Steel Flexible Joint Flex Bellows Auto Exhaust Muffler Flex Pipe

Exhaust muffler flex pipe consists of four layers. The outer and inner layers are made from the weaving stainless wire. Between these layers, there is a double layer bellow or sometimes one layer as request, also made of stainless steel. The necks can be aluminized or stainless steel , we weld the extension tube on the pipe, so it'll be easier for customer to install it after getting it.



Brief introduction of exhaust muffler flex pipe:



Material



Stainless Steel 201 / 202 / / 304 / 409



Structure choice



Bellows + Outer Braid + Nipple/ extension tube

Bellows + inner braided liner + external braided liner,

Bellows + interlock liner + external wire braided ,

Bellow + wire mesh





Packing



Bubble bag + Carton + Woven bag, particular packaging can be negoiated



Inner Diameter



1-1/2", 1-3/4, 2", 2-1/4", 2-1/2", 3", 4" Or Oem size



Metric diameter



38mm, 45mm, 51mm 63.5mm, 57mm 89mm 102mm etc.



Extension pipe thickness



1.0mm , 1.5mm, 2mm



Advantage



High flexibility and no smuggling



Price Term



EXW , FOB , CIF , C&F



Application / Usage



Tuck, buses, off-road, auto exhaust system like engine, muffler, turbos, waste-gates, blow-off Valves, industrial equipment etc.



MOQ



10PCS





1.Automobile exhaust system component

2. Installed between engine and muffler

3. decrease vibration and engine noise

4.To compensate displacement and installation tolerances

5. Smooth inner surface to ensure waste gas to convey the back part

6.To Bear load


Specification of Exhaust Muffler Flex Pipe

Inner Diameter (ID) Flex Length(L) With nipple Overall Length(L)
1-3/4” (45mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
48mm 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
2”(50.8mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
54mm 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
2-1/4”(57.2mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
2-1/2”(63.5mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
3”(76.2mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
Note: Customized size are available

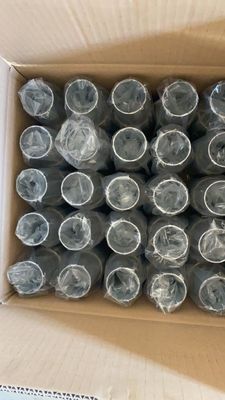

Packing and delivery of muffler flex pipe



Plastic bag + seaworthy carton

Lead time: 5-8 days if stocks available, otherwise depends on the purchased quantity.

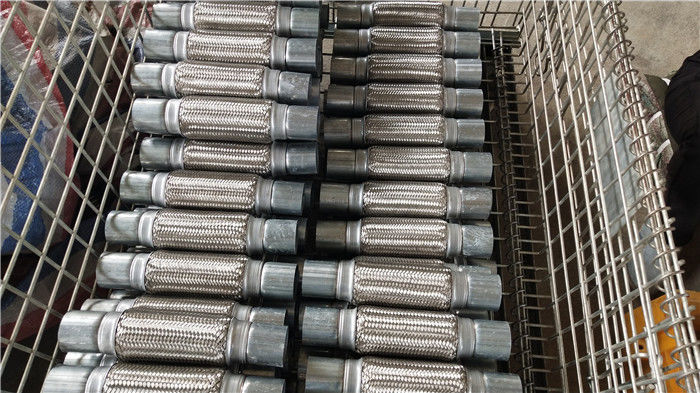

Stainless Steel Metric ID38mm Flexible Car Exhaust Pipe 0



About us



As a reliable partner and aftermarket supplier, we offer advanced products and have large stock. Our product are sold to many countries,have been exported to North America,Western Europe,Southeast Asia,South America,Northern Europe,Mid East,Southern Europe,Africa and many other countries. We would like to cooperate with global customers and make the good protection project in world market.

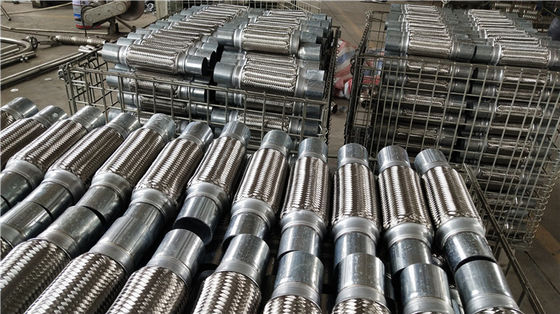

Stainless Steel Metric ID38mm Flexible Car Exhaust Pipe 1
