Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube

Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube
Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube

Large Image :  Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube

Product Details:
Place of Origin: CHINA
Brand Name: YP
Certification: ISO
Model Number: YPEXF-200
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD 1.6~1.8 PER PIECE
Packaging Details: plastic bag+ carton + woven bag
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T Western Union
Supply Ability: 100000 pieces per Month
Detailed Product Description
Product Name: Auto Parts Engine Exhaust Flex Pipe Outer Braid Flexible Exhaust Pipe With Extension Tube Application: Auto / Vehicle / Truck Exhaust Muffler
Inside Diameter: 1-1/2", 1-3/4",2", 2-1/4", 2-1/2",3", 4", Or Customized Metric Diameter: 38mm, 45mm, 51mm, 57mm 63.5mm.76.2mm, 89mm 102mm, Etc.
Body Length:: 4" 6" 8" 10" Or As Request Flex Pipe Materials: Stainless Steel 304 / 201
Flex Cap Materials: Stainless Steel 304 / 201 Or Aluminized Steel Structure: Bellows + Wire Braided + Extension Pipe
Inlet Attachment: Weld-on Outlet Attachment: Weld-on
Type: Exhaust Fleible Pipe Advantage: High Flexibility And No Smuggling
Package: Plastic Bag + Carton + Woven Bag
High Light:

ss304 automotive exhaust flex pipe

,

ss304 flexible automotive exhaust pipe

,

51mm flexible automotive exhaust pipe

Product description of Auto Parts Engine Exhaust Flex Pipe:

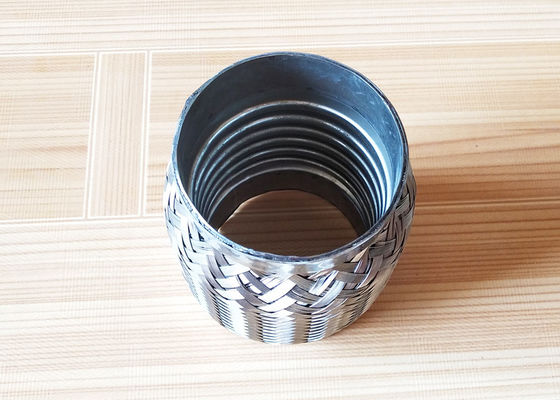

Exhaust flex couplings are stainless steel expansion joints designed for engine exhaust. They're constructed with 2-ply bellows and designed with a seamless, convoluted inner core—increasing flexibility in order to reduce vibrations and prevent exhaust leaks. The flex pipes are offered in a variety of lengths, diameters, and attachment styles.



  • Bellow materials: Stainless steel 301 201 202 409 , thickness between 0.25-0.30mm
  • Braid and interlock: Stainless steel 304
  • Collars(cap): Stainless steel or aluminized steel
  • Nippe(extension pipe): Stainless steel or aluminized steel
  • Keyword: exhaust flex pipe, exhuast flex tube, exhaust corrugated bellow pipe, exhaust flex coupling



Specification Of Auto Parts Engine Exhaust Flex Pipe



Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube 0

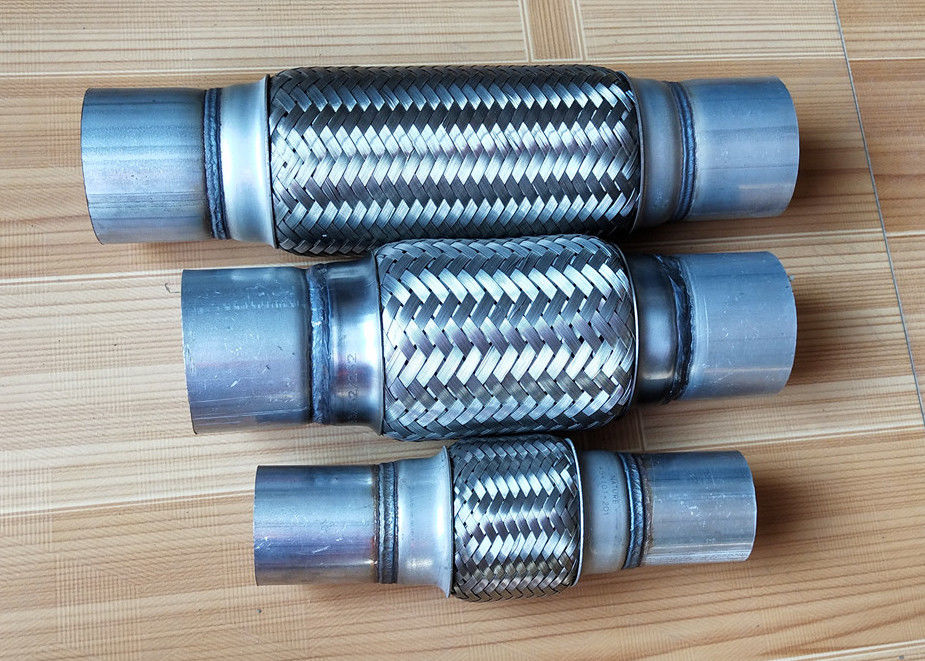

Remark: Exhaust flexible pipe with nipple/extension pipe (2" )

               Customized sizes are acceptable as drawing or samples.



NOMINAL INSIDE
DIAMETER I.D
OVERALL LENGTH
O/L
NOMINAL INSIDE
DIAMETER I.D

OVERALL LENGTH

O/L

NOMINAL INSIDE
DIAMETER I.D

OVERALL LENGTH

O/L

1-3/4 " (45mm) 4 " (102mm) 2-1/2 "(63.5mm) 4 " (102mm) 43mm 120mm
6 " (152mm) 6 " (152mm) 165mm
8 " (203mm) 8 " (203mm) 180mm
9 " (230mm) 9 " (230mm) 50mm(52mm) 120mm
10 " (254mm) 10 " (254mm) 165mm
11 " (280mm) 11 " (280mm) 54.5mm 120mm
2"(51mm) 12 " (305mm) 12 " (305mm) 150mm
4 " (102mm) 3 "(76.2mm) 4 " (102mm) 180mm
6 " (152mm) 6 " (152mm) 200mm
8 " (203mm) 8 " (203mm) 250mm
9 " (230mm) 10 " (254mm) 60mm(61mm) 160mm
10 " (254mm) 12 " (305mm) 200mm
2-1/4 " (57.2mm) 11 " (280mm) 6 " (152mm) 240mm
12 " (305mm) 3-1/2" (89mm) 8 " (203mm) 65mm 150mm
4 " (102mm) 10 " (254mm) 200mm
6 " (152mm) 12 " (305mm) 70mm 100m
8 " (203mm) 4" (102mm) 8 " (203mm) 120mm
9 " (230mm) 10 " (254mm) 150mm
10 " (254mm) 12 " (305mm) 200mm
11 " (280mm) Other sizes are available,ID32,ID36,ID38,ID40,ID46,ID48,ID115,ID125etc
12 " (305mm)

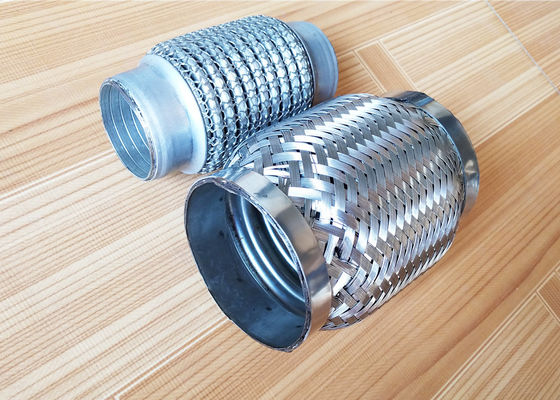

Structures choice of Engine Exhaust Flex Pipe:



  • Bellow + outer braid liner;
  • bellow + inner braid liner + out braid liner;
  • Bellow + interlock liner + out braid liner;
  • Bellow + inner braid liner + outer braid liner + extension p ;



Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube 1



Appication of Engine Exhaust Flex Pipe:



Engine exhaust flex pipe can be used in the exhaust system of large vehicles such as trucks, buses, freightliner etc., for the high temperature portion of the engine exhaust manifold. The exhaust bellows is installed in the exhaust pipe between the engine exhaust manifold and the mufller, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of exhaust muffler system.



Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube 2



Packaging and Delivery of Engine Exhaust Flex Pipe



Fast delivery: in 5-8 days

Lead time for new production: No more than 30 days

Shipping terms: EXW FOB CIF

Packing methods: Plastic bag for each product, seaworthy carton and woven bag with pallet or not.



Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube 3



Factory Show:



Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube 4

Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube 5



We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.

Auto Parts Engine Ss304 Flexible Automotive Exhaust Pipe With Extension Tube 6
