Male Female 304 Stainless Quick Release 1.5 V Band Clamp

Male Female 304 Stainless Quick Release 1.5 V Band Clamp

quick release 1.5 v band clamp

304 stainless 1.5 v band clamp

male female 1.5 v band clamp

Place of Origin:

China

Certification:

ISO

CONTACT US
Request A Quote
Product Details
Product Name:
1.500" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp
Type:
V Band Exhaust Clamp
Materials:
Stainless Steel 304
Band Width:
3/4"(19mm)
ID:
1.5 In.
OD:
2.178"
Flange:
Male / Female
Surface Finish:
Polished
Package:
Individual Packaging
Application:
Auto Exhaust System
Payment & Shipping Terms
Minimum Order Quantity
10
Price
$9.0~$10/PC
Packaging Details
Film bag + carton
Delivery Time
5-8 days if stocks available
Payment Terms
L/C T/T WESTERN UNION
Supply Ability
10000 Pieces Per Month
Product Description

1.500" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp



Quick-Release style V-Band Assemblies are precision CNC machined and feature a 304 Stainless Steel Quick Release style V-Band Clamp and a set of 304 Stainless Steel interlocking "Male/Female" V-Band Flanges. V-Band Clamps and Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, and industrial applications.

304 Stainless Quick Release style V-Band Clamp utilize a quick release style latch that allows for quick assembly and disassembly in applications where frequent removal is required. Unlike the "standard" style V-Band Clamps, Quick Release style V-Band Clamps feature a removable and replaceable T-Bolt section, should the user need to do so.

"Male/Female" interlocking style V-Band Flanges feature a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The interlocking seating surface, the area where the two flanges meet, makes fitment and installation a breeze even in tightest of areas.

The weld side of 304 Stainless V-Band Flanges are CNC machined with a counterbore to allow the matching tube size material to slip into the V-Band Flange and be welded in place. The V-Band Flange counterbore is machined to be 0.065" wide and allows for the inside diameter (ID) of 16 gauge wall thickness tube to align perfectly with the ID of the V-Band Flange without any restrictions or reductions.

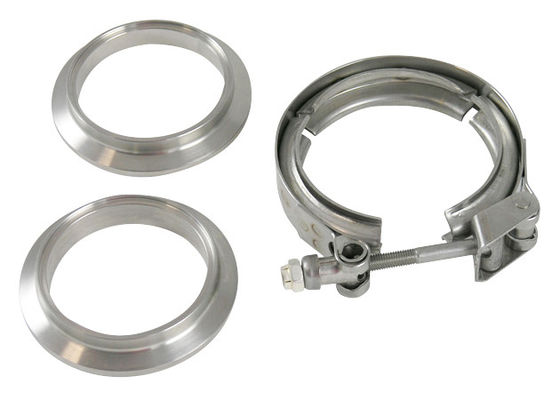

Each V-Band Clamp Assembly includes one (1) Quick Release style V-Band Clamp, one (1) "Male" style interlocking V-Band Flange, and one (1) "Female" style interlocking V-Band Flange.

DETAILED SPECIFICATIONS:

Flange ID 1.500"
Flange OD 2.178"

Clamp Bandwidth
0.750"
Clamp Type V-Band, Quick Release T-Bolt
Material Type 304 Stainless

Provided Fasteners

Metal Lock Nut (QTY: 1)
Non-Locking Nut (QTY: 1)

Fastener Size (Material)

6mm-1.5 (304 Stainless)

V-Band Clamp Properties

V-Band Clamps are designed for challenging, heavy-duty applications where they have proven their high-performance capabilities. They provide high strength, reliability, and corrosion resistance.



V-Band Clamps are engineered and designed for heavy duty trucks, automotive, high performance and racing, generator and marine industries. Their tight design makes them a perfect solution for decreased emissions. Applications include:

  • Pumps
  • Engines
  • Exhaust systems
  • Emissions
  • Diesel particulate filters
  • Muffler assemblies
  • Filters
  • Food and chemical processing equipment
  • Turbochargers
  • Telecommunication equipment and tubing

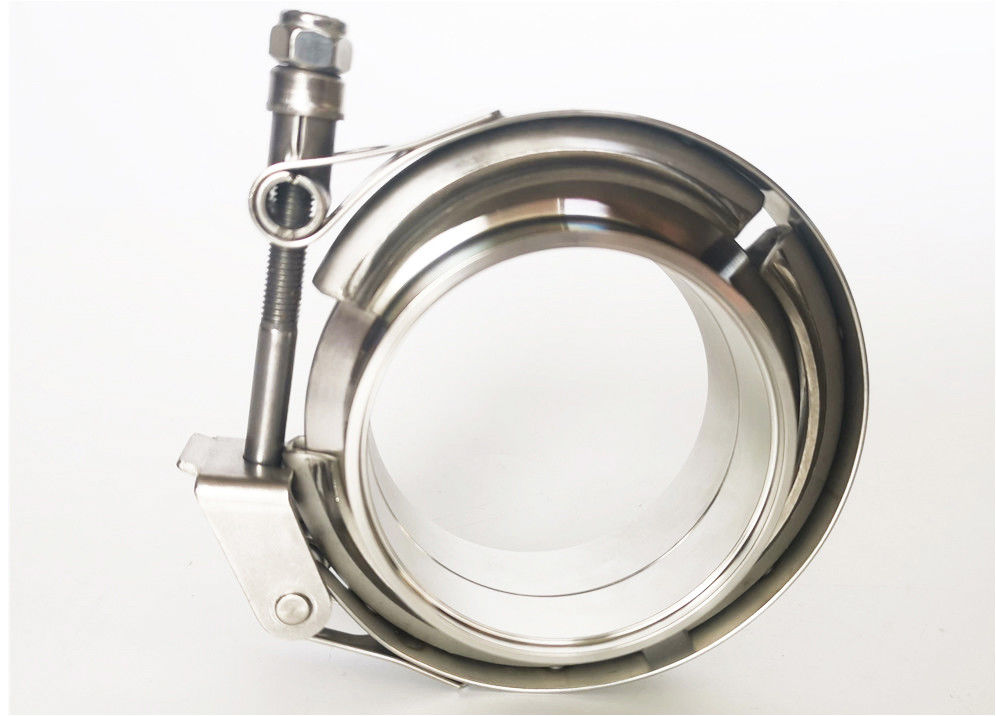

​V-Band clamps with T-Bolt quick release style latches.

Male Female 304 Stainless Quick Release 1.5 V Band Clamp 0

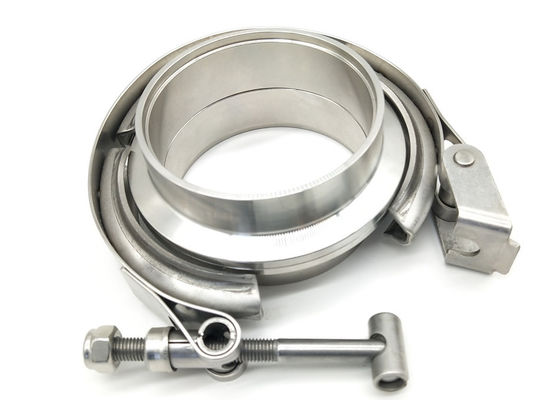

V band clamp with standard T-bolt

Male Female 304 Stainless Quick Release 1.5 V Band Clamp 1





Specifications:



Size(Inch) Flange ID(mm) Exhaust pipe OD(mm) Materials
1.5 38.9 38.1 Stainless steel 304
1.75 45.3 44.5
2 51.6 50.8
2.25 57.9 57.1
2.5 64.3 63.5
2.75 70.6 69.8
3 77 76.2
3.25 83.3 82.5
3.5 89.7 88.9
3.75 96.4 95.6
4 102.4 101.6
4.5 115.1 114.3
5 127.8 127
6 153.2 152.4


Advantages of V-band clamps:

When compared to 2 or 3-bolt flanges, the V-band connections are lighter, quicker and easier to take apart. In most cases the V-band clamps are economical when you consider the cost of time in installation and reassembly. V-band connections require a smaller fitment envelope as compared with multi-bolt flanges, and the biggest advantage, the design of the V-band clamp applies uniform force around the flange which maximizes the seal potential of the flanges.

  1. Reduces assembly cost, saves time and ease of accessibility
  2. Ideal for applications requiring frequent access for cleaning, inspection or replacement of internal components
  3. Smaller envelop dimensions, weight savings and improved appearance
  4. Provides additional strength by absorbing circumferential load



Installation:



For a V-band clamp to work optimally, proper installation is critical. Tubes and components of the coupling must be joined and aligned before installing the coupling. The flanges must also be aligned correctly prior to coupling installation for good joint performance.



Tighten the nut to approximately 70% of the required torque (on double-latch assemblies, torque both latches equally). Check to assure the coupling has seated over flanges equally around the periphery. Also, check for correct flange alignment. Radial flange alignment can be checked visually in the gap between adjacent retainer segments.



Male Female 304 Stainless Quick Release 1.5 V Band Clamp 2



Packing and delivery:



Package method:Separate carton for each, big carton outside or as clients's request

Delivery time:in 3 days if stocks available, new production time depends on ordered quantity

Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)

Shipping terms: FOB, CIF, CNF DDP etc.



Male Female 304 Stainless Quick Release 1.5 V Band Clamp 3

Please contact Lily zhang for details. I am working here from 8:00 am to 5:00 pm on Monday~Friday.



Whatsapp:008613472162077

Wechat:13472162077

Email: market@ypmachinery.com
